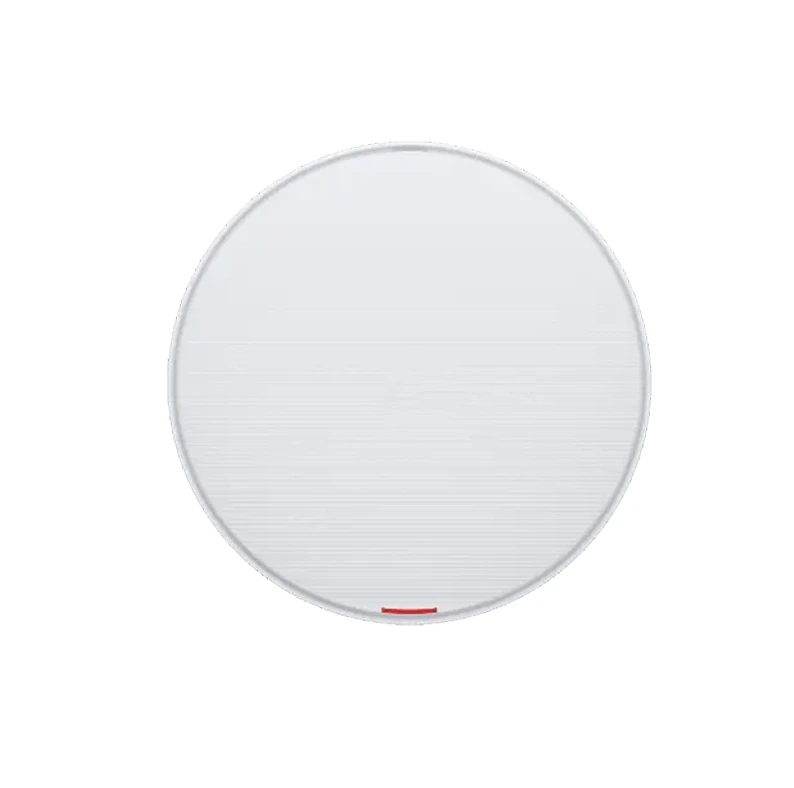

Airengine5762-12 50084987 (11ax Indoor,2+2 Dual Bands,Smart Antenna,Ble)
5.0
العلامة التجارية:
/
عينات:
2000.0 دولار/القطعة | دقيقة. الطلب: 1 قطعة
الشحن:
دعم الشحن البحري
مكان المنشأ:
الصين
المدفوعات:
L/C ، D/A ، D/P ، T/T ، ويسترن يونيون ، مونيغرام ، OA
المهلة الزمنية:
1-10 (قطع): 3 (أيام) ، 11-100 (قطع): 7 (أيام) ، 101-500 (قطع): 15 (أيام) ،> 500 (قطعة): يمكن التفاوض عليها (أيام)
التخصيص:
شعار مخصص (Min. الطلب: 10000 مجموعة) ، تغليف حسب الطلب (الحد الأدنى. الترتيب: 10000 مجموعة) ، تخصيص الجرافيك (الحد الأدنى. النظام: 10000 مجموعات)
رقم الموديل:
AirEngine 5762-12
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
يرجى ملء النموذج أدناه لطلب عرض أسعار أو طلب المزيد من المعلومات عنا. يرجى أن تكون مفصلة في رسالتك، وسوف نعود إليك في أقرب وقت ممكن مع استجابة. نحن على استعداد لبدء العمل على مشروعك الجديد، اتصل بنا الآن للبدء.
الوزن بدون عبوة [كجم (رطل)]
0.515 كجم (1.135 رطل)
منفذ وحدة التحكم
وحدة تحكم بلي
مجموعة شرائح
/
بلد المنشأ
الصين
التخزين
ناند فلاش 256 ميجابايت
طلب
/
الأبعاد بدون عبوة (H x W x d)
180 مم × 35 مم (7.09 بوصة. x 1.38 في.)
نوع
وحدة wifi
Описание продукта
Basic information about the AirEngine 5762-12
| Элемент | Details |
|---|---|
| Описание | AirEngine5762-12(11ax indoor,2+2 dual bands,smart antenna,BLE) |
| Part Number | 50084987 |
| Модель | AirEngine 5762-12 |
| subseries | AirEngine 5700 |
| First supported version | V200R021C01 |
1 | GE0/PoE_IN | 2 | DC 12V |
3 | Security slot | - | - |
Ports on the AirEngine 5762-12
| Порт | Connector Type | Описание | Available Components |
|---|---|---|---|
| GE0/PoE_IN | RJ45 | 10/100/1000M auto-sensing Ethernet electrical port that connects to the wired Ethernet and supports PoE input. | Network cable |
| DC 12V | DC connector | Connects to a 12 V power adapter. | 12 V DC power adapter |
Technical Specifications
| Элемент | Спецификация |
|---|---|
| Installation Type |
|
| Dimensions without packaging (H x W x D) [mm(in.)] | Diameter x length: 180 mm x 35 mm (7.09 in. x 1.38 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 95 mm x 280 mm x 250 mm (3.74 in. x 11.02 in. x 9.84 in.) |
| Weight without packaging [kg(lb)] | 0.515 kg (1.135 lb) |
| Weight with packaging [kg(lb)] | 0.890 kg (1.962 lb) |
| Storage | NAND Flash 256 MB |
| Console port | BLE console |
| Maximum power consumption [W] | 11 W |
| Maximum heat dissipation [BTU/hour] | 37.5 BTU/hour |
| Power supply mode |
|
| Rated input voltage [V] | 12 V |
| Input voltage range [V] | DC: 12 V ± 10% PoE: 802.3af |
| Service port surge protection [kV] | PoE port: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B |
| Maximum number of physical ports on the entire device | GE (RJ45) x 1, 10M/100M/1000M auto-sensing |
| Long-term operating temperature [°C(°F)] | –10°C to +50°C (14°F to 122°F) (If the altitude is in the range of 1800 m to 5000 m, the temperature decreases by 1°C or 1.8°F every time the altitude increases by 300 m.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa - 106kPa ETSI 300 019-2-3 |
| Ground | floating ground |
| BLE | BLE5.0 |
| Radio number | 2 |
| Operating frequency band |
|
| MIMO spatial streams | Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2 |
| Wi-Fi standard | 2.4G: 802.11b/g/n/ax 5G: 802.11a/n/ac/ac Wave 2/ax |
| Radio interface | Built-in smart antennas |
| Antenna gain | 2.4G: 4 dBi/chain (peak value) 2 dBi (combined gain) 5G: 5 dBi/chain (peak value) 3 dBi (combined gain) BLE: 4 dBi |
| Maximum transmit power | 2.4G: 20 dBm/chain 23 dBm (combined power) 5G: 20 dBm/chain 23 dBm (combined power) BLE: < 10 dbm |
| Singal radio transmit power [dBm] | 2.4G: -10 dBm to 20 dBm/chain 5G: -10 dBm to 20 dBm/chain |
| MTBF [year] | 192 year |
| MTTR [hour] | 0.5 hour |
| Frequency stability [ppm] | +/-20 |
| 802.3bt power supply description | No function is limited. |
| 802.3at power supply description | No function is limited. |
| 802.3af power supply description | No function is limited. |
| DC power supply description | No function is limited. |
