Form Factor

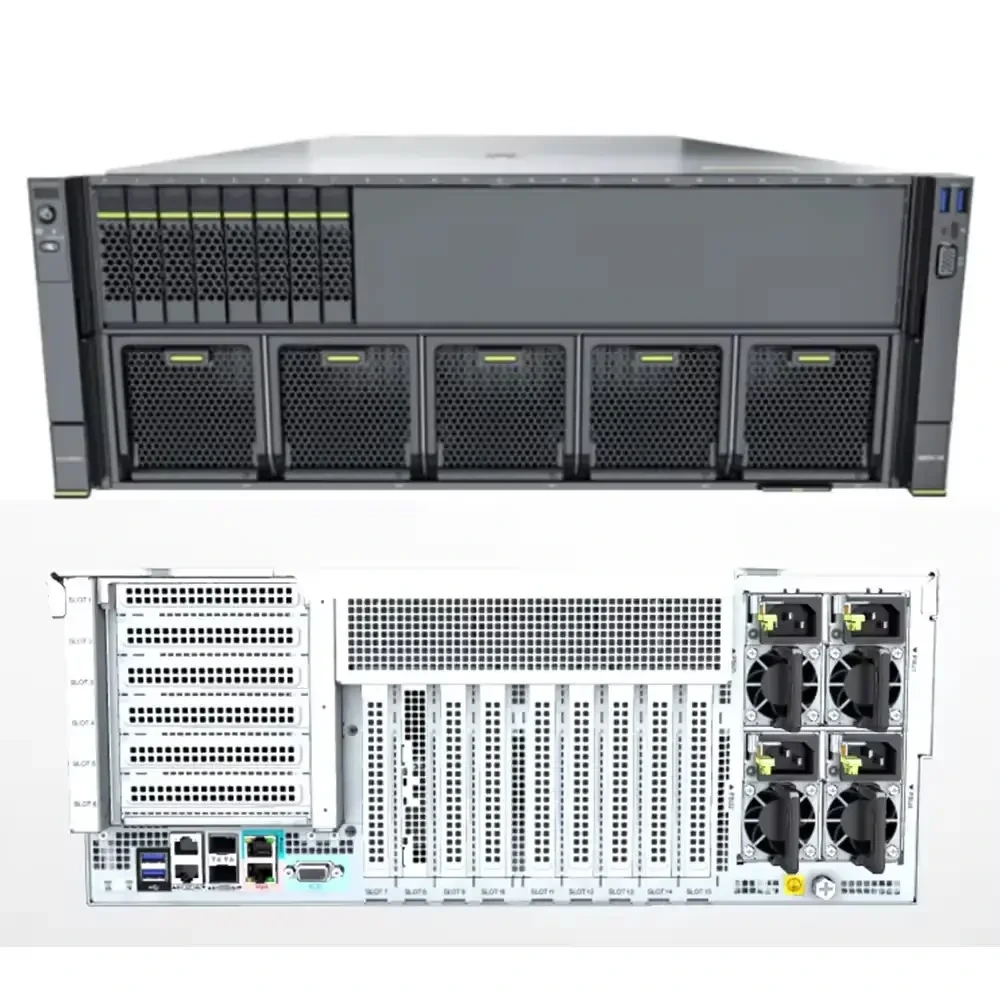

4U rack server

Processors

2 or 4 1st Generation Intel® Xeon® Scalable processors (5100/6100/8100 series), up to 205 W
2 or 4 2nd Generation Intel® Xeon® Scalable processors (5200/6200/8200 series), up to 205 W

メモリ

48 DDR4 DIMM slots, 2933MT/s; up to 24 DCPMMs, 2666 MT/s

内部ストレージ

Supports hot-swappable hard drives with the following configuration options:
• 8 x 2.5-inch SAS/SATA hard drives (front)
• 24 x 2.5-inch SAS/SATA hard drives (front)
• 25 x 2.5-inch SAS/SATA hard drives (front)
• 16 x 2.5-inch SAS/SATA hard drives and 8 x 2.5-inch NVMe SSDs (front)

Flash storage:
• Two M.2 SSDs

RAID Support

RAID 0, 1, 5, 50, 6, or 60; optional supercapacitor to protect cache data from power failures; RAID level migration, drive
roaming, self-diagnosis, and web-based remote configuration

LOM Network Ports

2 x 10 GE + 2 x GE LOM ports

PCIe Expansion

• Up to 15 PCIe slots for 15 PCIe 3.0 slots
• 2 dual-width full-height full-length GPU cards (x16)

Fan Modules

5 hot-swappable fan modules with optional N+1 redundancy

Power Supply Units

4 hot-swappable PSUs with optional 2+2 redundancy. Supported options include:
• 1,500W AC Platinum PSUs
• 900W AC PSUs
• 1,200W DC PSUs

Management

• Huawei iBMC integrates one dedicated management GE network port to provide comprehensive management features such as fault
diagnosis, automated O&M, and hardware security hardening.

• iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC
KVM; supports CD-free deployment and the Agentless feature, simplifying management.

• (Optional) Configured with the Huawei eSight management software to provide advanced management features such as stateless
computing, batch OS deployment, and automated firmware upgrade, enabling smart and automatic entire-lifecycle management.

動作温度

5ºCから 45ºC (41ºFから 113ºF) (ASHRAE A3 and A4 compliant)

Certifications

CE, UL, FCC, CCC, and RoHS

Installation suite

L-shaped guide rails, adjustable guide rails, and holding rails

Dimensions (H x W x D)

175 mm x 447 mm x 790 mm (6.89 in. x 17.60 in. x 31.10 in.)
