High-Performance Wireless Router Wireless Router Company

Product details of the wireless router

د محصول مشخصات

Weight: 2 kg

Use: other

Type: Enterprise Router

د محصول پیژندنه

Different specifications of wireless router can be chosen by our customers. To guarantee the consistent quality of the product, our technicians pay more attention to the quality control and inspection during the production. With many advantages, this product is highly reckoned in the market.

د محصولاتو توضیحات

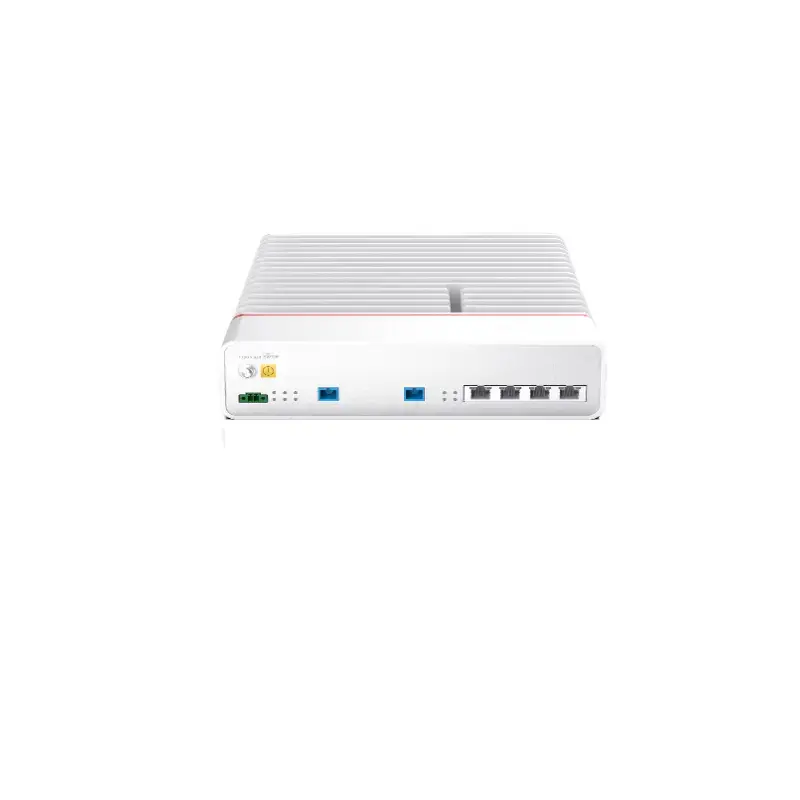

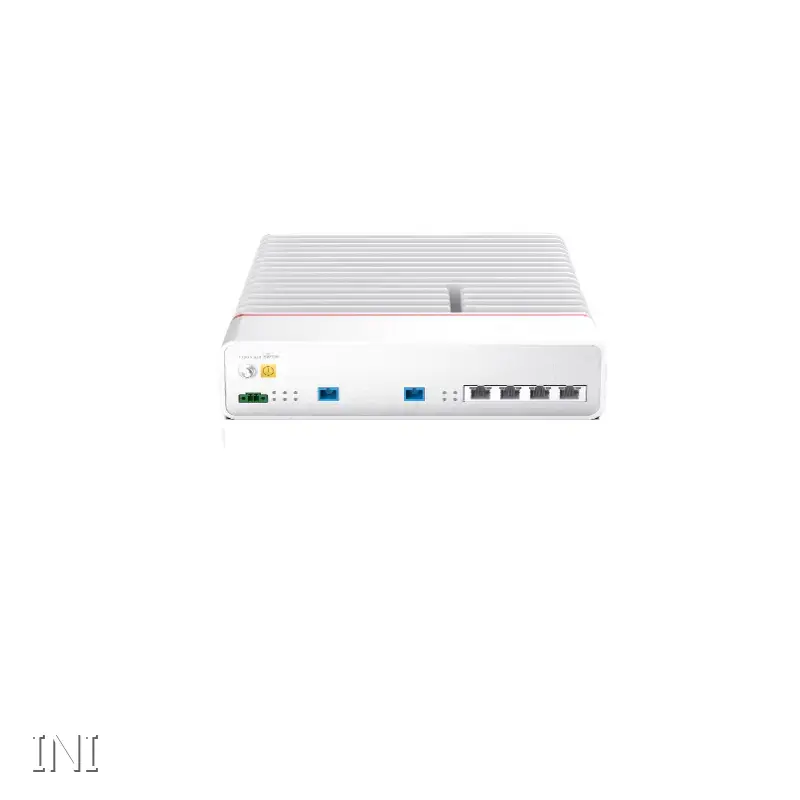

OptiXstar S892E is an Optical Network Unit (ONU) designed for Wi-Fi 6 Access Point (AP) backhaul scenarios on enterprise campuses. This device features up to two uplink 10-Gigabit-Capable Symmetric Passive Optical Network (XGS-PON) high bandwidth ports and four 10 GE ports with Power over Ethernet (PoE)++, delivering a high-quality experience for voice, data, High Definition (HD) video, and other services.

د جزیاتو انځورونه

د ځانګړتیاوو

Parameters	HW OptiXstar S892E
Dimensions (H x W x D)	ملي میتر60 x 250 x 210
Weight (Without Power Adapter)	Approximately 1.8 kg
د عملیاتي تودوخې درجه	–40°له C څخه تر 55°C
Operating Humidity	5–95% RH (non-condensing)
System Power Supply	48 V DC, 5A
Power Adapter Input	100–240 V AC, 50/60 Hz
Maximum PoE Power Consumption	Gross power up to 180 W, GE ports support up to 90 W
Surge Protection	GE: common mode 4 kV; differential mode 1.5 kV AC power: common mode 6 kV; differential mode 6 kV
Maximum Power Consumption	Approximately 200 W
NNI	1–2 x XGS-PON
UNI	4 x 10 GE
Installation Mode	Support network box installation
Authentication	802.1X
GPON Port	• Port type: SC/UPC • XGS-PON <000000>minus; Class N1/N2 <000000>minus; Transmission rate: upstream 9.953 Gbit/s, downstream 9.953 Gbit/s
Ethernet Electrical Port	• PoE++, complying with IEEE 802.3bt/IEEE 802.3at/IEEE 802.3af • Port type: RJ-45 • Auto ports speed (1/2.5/5/10 Gbit/s) • Auto-MDI/MDIX





FAQ

Company Feature

• INI has a sales network covering the whole country. Some products are exported to America, Africa, Europe, and other countries and regions. Now we are an influential company in the industry.
• Our company persists in the principle of 'users are teachers, peers are examples'. We have a group of efficient and professional elite service personnel. Besides, we utilize scientific methods and advanced technology. Thus, we can provide our clients with super-quality services.
• After years of struggle and development, our company now has the leading base hardware scale in China.
• Our company has a unique geographical advantage and rich social resources nearby, which create excellent social conditions for the development.
For the product information, please enter the contact information and follow the account of INI.
