03031YCX LE1D2H02QX2S 2-Port 100GE QSFP28 Interface and 2-Port 40GE QSFP+ Interface Card (X2S, QSFP28)

LE1D2H02QX2S -2-Port 100GE QSFP28 Interface and 2-Port 40GE QSFP+ Interface Card (X2S, QSFP28)



Version Mapping

Table 1  Switch chassis and software versions matching the card

Card Name	S9300X Chassis
LE1D2H02QX2S	S9310X chassis: supported in V200R010C00 and later versions S9300X-4, S9300X-8, and S9300X-12 chassis: not supported

Intshayelelo

I  LE1D2H02QX2S  can be installed in:

• Slots 01 to 10 in an S9310X chassis.

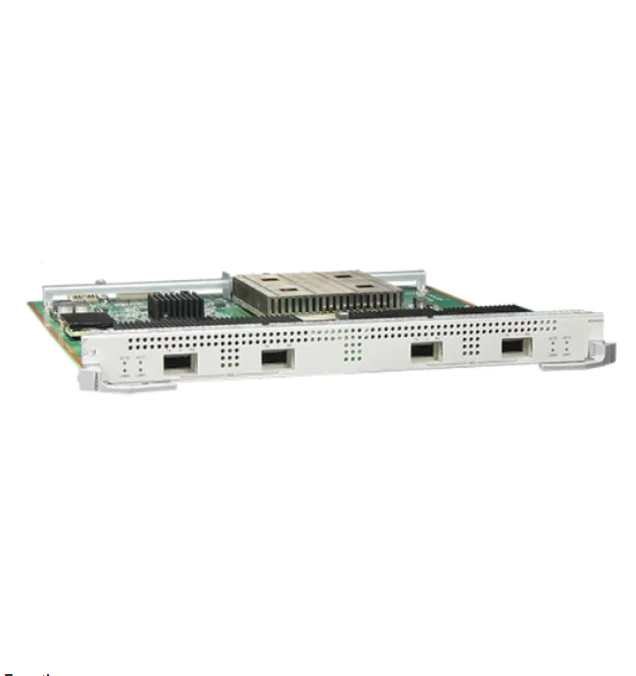

Figure 1  Appearance of the  LE1D2H02QX2S

Functions

Table 2  Functions of the  LE1D2H02QX2S

Umsebenzi	Inkcazo
Basic functions	Provides two 40GE optical ports and two 100GE optical ports for data transmission and  switching .
Distributed forwarding	Performs concurrent data forwarding using a distributed data plane.
Hot swapping	Supported



Iinkcukacha

Table 3  Specifications of the  LE1D2H02QX2S

Into	Inkcazo
Physical specifications	Dimensions (H x W x D): 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.) Weight: 3.05 kg (6.72 lb) Maximum power consumption: 143.5 W

1.Table And Wide Supply Chain System
We have established a perfect supply chain system to provide a wide range of products with reliable quality and reasonable price.

2.Competitive Price
We ensure the most competitive price.Warm reminders here, telecommunications equipment configuration is quite different, the price show

3.Safe And Easy Payment Solutions
We support a variety of payment methods, such as T/T, credit card, et

4.Strong Pre-Sales And After-Sales Services
To provide customers with professional pre- sales service, as well as after-sales technical Services

5.More Than 20 Years Industry Experience
We have been engaged in this industry more than 20 years, we have rich industry experience.

6.Fast Delivery And Shipping
Fast, professional and reliable delivery.

Q: How about your main products?
A:Our product lines include Switches.Routers,OLTs,SDHs. Network Modules, Interface Cards, Security Firewalls, Wireless AP etc.
