03033DGG LSS3C06HX6E1 6-Port 100GE QSFP28 Interface Card (X6E, QSFP28) for h w

LSS3C06HX6E1 -6-Port 100GE QSFP28 Interface Card (X6E, QSFP28)

Version Mapping

Masă 1  Switch chassis and software versions matching the card

Card Name	S9300 Chassis	S9300E Chassis
LSS3C06HX6E1	S9303, S9306 and S9312 chassis: not supported S9310 chassis: supported in V200R019C00 and later versions	Not supported

Introducere

The  LSS3C06HX6E1  can be installed in:

Slots 01 to 10 in an S9310 chassis.

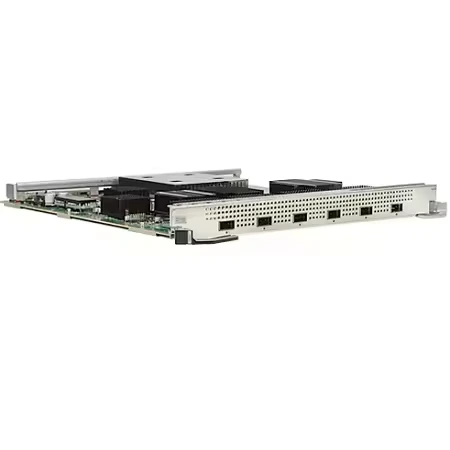

Figure 1  Appearance of the  LSS3C06HX6E1

Funcții

Masă 2  Functions of the  LSS3C06HX6E1

Function	Description
Basic function	Provides six 100GE optical ports for data transmission and switching.
Distributed forwarding	Performs concurrent data forwarding using a distributed data plane.
Hot swapping	Supported



Specificații

Masă 3  Specifications of the  LSS3C06HX6E1

Item	Description
Physical specifications	Dimensions (H x W x D): 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.) Weight: 3.55 kg (7.83 lb) Maximum power consumption: 194 W
