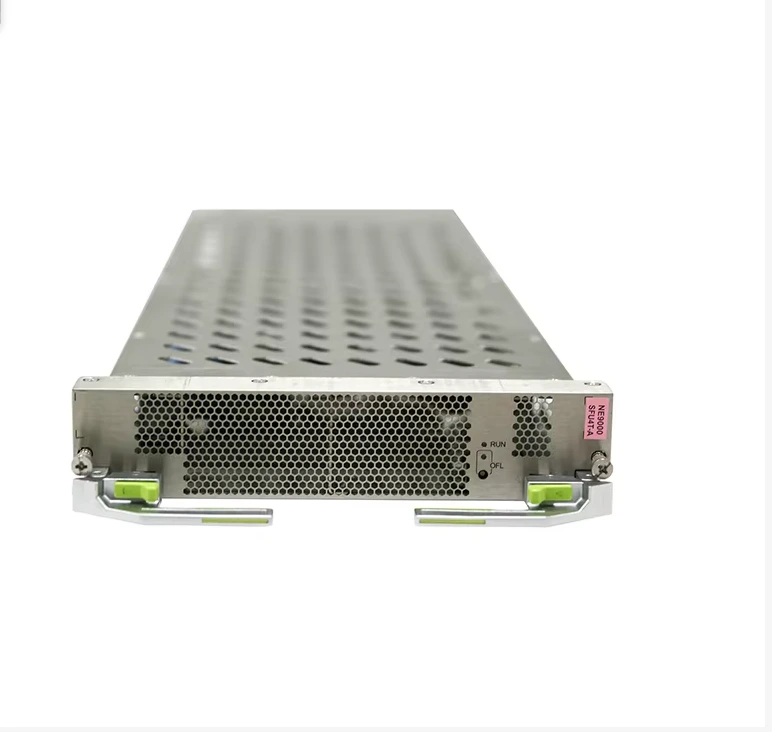

CR9D0SFUT280 (ne9000-8 Switch Fabric Unit For Single Chassis(sfu2t-a))
| Artículo | Detalles |
|---|---|
| Descripción | NE9000-8 Switch Fabric Unit for Single Chassis(SFU2T-A) |
| Part Number | 03058247 |
| Modelo | CR9D0SFUT280 |
| Card type | SFU |
| Silkscreen | NE9000 SFU2T-A |
| Remarks | - |
| Functions and Features | Descripción |
|---|---|
| Basic function | This board is responsible for cell transmission between LPUs and implements Ethernet communications with the MPU for centralized system control and management of the MPU. In addition, this board supports board temperature and voltage monitoring. |
| Reliability and availability | The seven SFUs work in 7+1 backup mode and load-balance services at the same time. When one SFU is faulty or replaced, the other seven SFUs automatically take over its services to prevent service interruptions. |
| Artículo | Especificación |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] | 45.2 mm x 215.1 mm x 533.4 mm (1.78 in. x 8.47 in. x 21.0 in.) |
| Weight without packaging [kg(lb)] | 3.7 kg (8.16 lb) |
| Typical power consumption [W] | 150 W |
| Typical heat dissipation [BTU/hour] | 486.66 BTU/hour |
| Long-term operating temperature [°C(°F)] | 0°C a 40°C (32°F to 104°F) |
| Short-term operating temperature [°C(°F)] | –5°C a +50°C (23°F to 122°F) |
| Switching capacity | 2T bit/s |
| SDRAM | 1 GB |
