EH1D2S24CEA0 03030NXD S9700 24-Port 100/1000BASE-X and 8-Port 10/100/1000BASE-T Combo Interface Card(EA, SFP/RJ45, 1588) h w

EH1D2S24CEA0 -24-Port 100/1000BASE-X and 8-Port 10/100/1000BASE-T Combo Interface Card(EA, SFP/RJ45 , 1588 )



Version Mapping

Table 1  Switch chassis and software versions matching the card

Card Name	S9700 Chassis
EH1D2S24CEA0	Supported in V200R001C00 to V200R013C00

Zavedení

The  EH1D2S24CEA0  can be installed in:

• Slots 01 to 03 in an S9703 chassis.
• Slots 01 to 06 in an S9706 chassis.
• Slots 01 to 12 in an S9712 chassis.

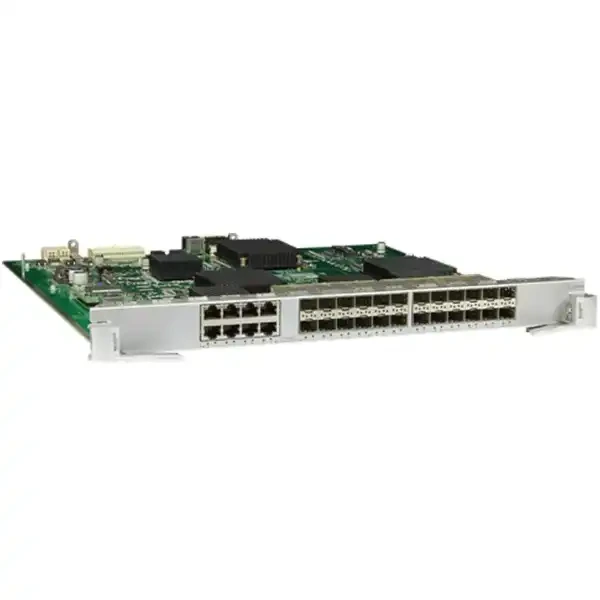

Figure 1  Appearance of the  EH1D2S24CEA0

Functions

Table 2  Functions of the  EH1D2S24CEA0

Funkce	Popis
Basic function	The  EH1D2S24CEA0  provides line-rate switching on sixteen GE optical ports and eight GE combo ports. The combo ports can be configured as either optical ports or electrical ports.
Synchronous Ethernet	The 100 Mbit/s optical/electrical ports and GE optical ports of the  EH1D2S24CEA0  support the synchronous Ethernet function. When a combo port works as a GE electrical port, it does not support the synchronous Ethernet function.
Distributed forwarding	Performs concurrent data forwarding using a distributed data plane.
Hot Swap	The  EH1D2S24CEA0  is hot swappable.



Specifikace

Table 3  Specifications of the  EH1D2S24CEA0

Položka	Popis
Physical specifications	Dimensions (W x D x H): 394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 i. x 1.4 in.) Weight: 2.70 kg (5.95 lb) Maximum power consumption: 75 W
Environment specifications	Operating temperature: 0°C to 45°C (32°F až 113°F) Operating relative humidity: 5% RH to 95% RH (noncondensing) Storage temperature: -40°C to +70°C (-40°F to +158°F) Storage relative humidity: 5% RH to 95% RH (noncondensing)
