EH1D2S24XEA0 03030NXA S9700 Series 24-Port 100/1000BASE-X and 2-Port 10GBASE-X Interface Card (EA, SFP/XFP) for h w 1
EH1D2S24XEA0 03030NXA S9700 Series 24-Port 100/1000BASE-X and 2-Port 10GBASE-X Interface Card (EA, SFP/XFP) for h w 2
EH1D2S24XEA0 03030NXA S9700 Series 24-Port 100/1000BASE-X and 2-Port 10GBASE-X Interface Card (EA, SFP/XFP) for h w 1
EH1D2S24XEA0 03030NXA S9700 Series 24-Port 100/1000BASE-X and 2-Port 10GBASE-X Interface Card (EA, SFP/XFP) for h w 2

EH1D2S24XEA0 03030NXA S9700 Series 24-Port 100/1000BASE-X and 2-Port 10GBASE-X Interface Card (EA, SFP/XFP) for h w

    Ой ...!

    Нет данных о продукте.

    перейдите на домашнюю страницу
    Размеры (Ш х Д х В)
    394,7 мм х 426,8 мм x 35,1 мм
    Вес
    2,40 кг (5,29 фунта)
    Максимальная потребляемая мощность
    65 W
    Номер детали
    03030NXA
    Использование
    Другие
    Место происхождения
    Guangdong, Китай
    Тип
    Переключатель предприятия
    製品説明



    EH1D2S24XEA0 -24-Port 100/1000BASE-X and 2-Port 10GBASE-X Interface Card (EA, SFP/XFP)



    Version Mapping

    テーブル 1  Switch chassis and software versions matching the card

    Card Name

    S9700 Chassis

    EH1D2S24XEA0

    Supported in V200R001C00 to V200R013C00

    Introduction

    の  EH1D2S24XEA0  can be installed in:

    • Slots 01 to 03 in an S9703 chassis.
    • Slots 01 to 06 in an S9706 chassis.
    • Slots 01 to 12 in an S9712 chassis.

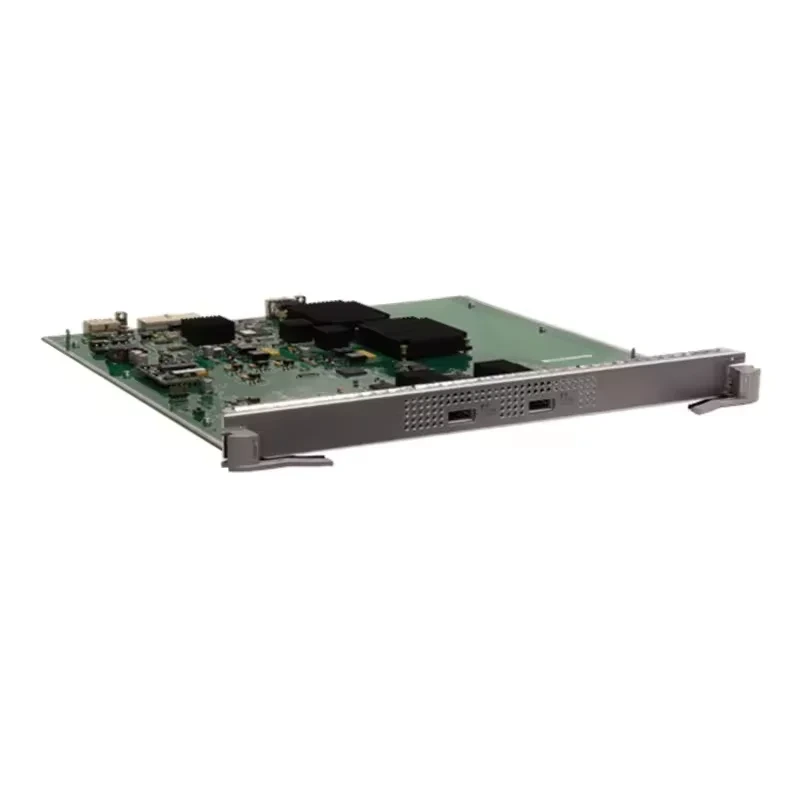

    Figure 1   Appearance of the  EH1D2S24XEA0
    EH1D2S24XEA0 03030NXA S9700 Series 24-Port 100/1000BASE-X and 2-Port 10GBASE-X Interface Card (EA, SFP/XFP) for h w

    Functions

    テーブル 2  Functions of the  EH1D2S24XEA0
    Function Description

    Basic function

    Provides twenty-four GE optical ports and two 10GE optical ports for data transmission and line-rate switching.

    Distributed forwarding

    Performs concurrent data forwarding using a distributed data plane.

    Software feature

    LAN/WAN interface switching

    Hot swapping

    の  EH1D2S24XEA0  is hot swappable.



    仕様

    テーブル 3  Specifications of the  EH1D2S24XEA0

    アイテム

    Description

    Physical specifications

    • Dimensions (W x D x H): 394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
    • Weight: 2.40 kg (5.29 lb)
    • Maximum power consumption: 65 W

    Environment specifications

    • Operating temperature: 0°C to 45°C (32°F to 113°F)
    • Operating relative humidity: 5% RH to 95% RH (noncondensing)
    • Storage temperature: -40°C to +70°C (-40°F to +158°F)
    • Storage relative humidity: 5% RH to 95% RH (noncondensing)
