EH1D2VS08000 03021UWH S9700 Series 8-портовый 10G кластерный коммутационный системный сервисный модуль (SFP+) для hw

EH1D2VS08000 -8-Port 10G Cluster Switching System Service Unit (SFP+)



Version Mapping

Table 1   Switch chassis and software versions matching the card

Card Name	S9703 Chassis	S9706 and S9712 Chassis
EH1D2VS08000	Not supported	Supported in V200R003C00 to V200R013C00

Introduction

The  EH1D2VS08000  provides eight 10GE optical ports, which can only be used for cluster connection and cannot be used for data transmission and switching.

The  EH1D2VS08000  can be installed in the subcard slot of an  EH1D2SRUC000 .

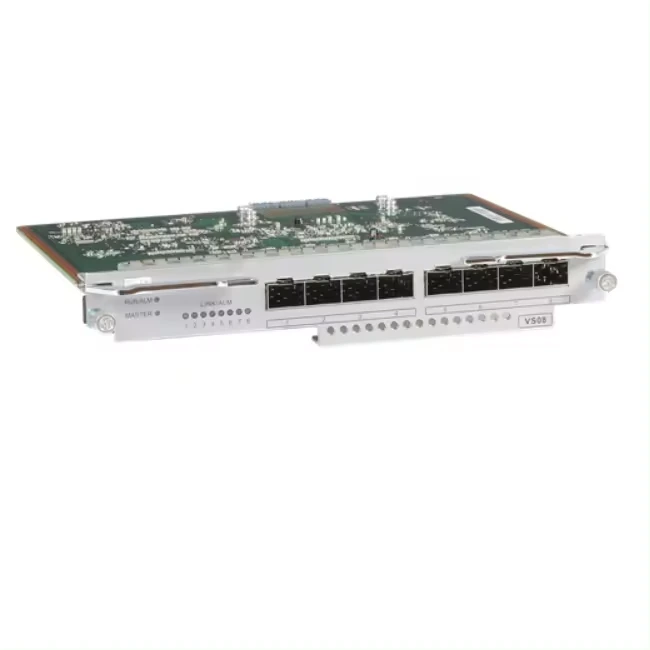

Figure 1  Appearance of the EH1D2VS08000

Specificații

Table 2    EH1D2VS08000  specifications

Articol	Description
Physical specifications	Dimensions (W x D x H): 213.0 mm x 151.8 mm x 35.1 mm (8.4 in. x 6.0 in. x 1.4 in.) Weight: 0.50 kg (1.10 lb) Maximum power consumption: 30 W
Environment specifications	Operating temperature: 0°C to 45°C (32°F to 113°F) Operating relative humidity: 5% RH to 95% RH (noncondensing) Storage temperature: -40°C to +70°C (-40°F to +158°F) Storage relative humidity: 5% RH to 95% RH (noncondensing)
