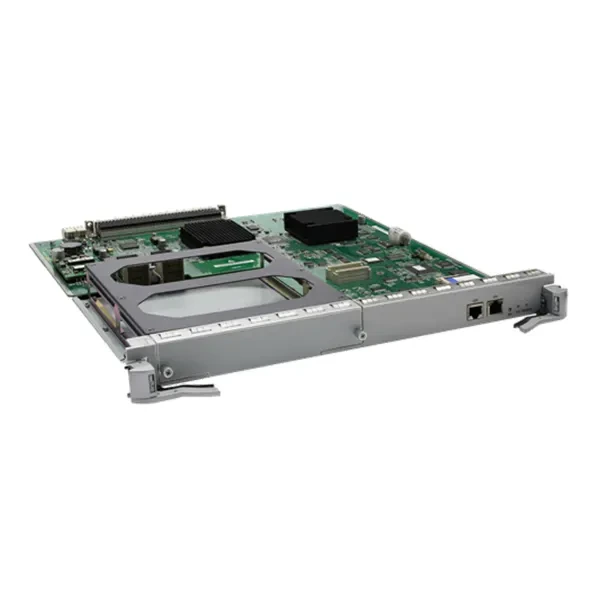

ES0D00SRUA00 03030MQS S7700 Series S7706/S7706 PoE/S7712 Main Control Unit A for h w

Fonksiyona bingehîn

System control and management unit for the  S7712, S7706, and S7706 PoE , integrating the control unit, Clock unit, switching unit, and system maintenance unit.

Pêşkêşkirina belav kirin

Bi karanîna balafirek daneya belavkirî şandina daneya hevdemî pêk tîne.

Bîr

1 GB

Birûsk

64 MB

CF card

512 MB by default

By default, the system configuration data, startup files, system software package, and system logs are saved to the CF card.

CSS

Ew  ES0D00SRUA00  can have  ES02VSTSA  installed to provide the CSS service.

OAM

Ew  ES0D00SRUA00  can have  ES0D00FSUA00  installed to provide enhanced services such as OAM and BFD.

• 802.1ag: identifies, detects, and sends continuity check (CC) packets.
• Multiprotocol Label Switching (MPLS OAM): identifies, detects, and sends MPLS OAM packets.
• OAM UNCFG_MEP.

Redundancy backup

Supported

MPUs are mandatory for switches. You can configure one or two MPUs for each switch. The MPU can be installed in either MPU slot of a switch. An MPU consists of the control plane, management plane, and data forwarding plane. When two MPUs are installed, the two MPUs work in hot standby mode on the control and management planes and work in load balancing mode on the data forwarding plane. MPUs monitor each other. When the active MPU is faulty, the standby MPU is automatically switched to be the active MPU to ensure service continuity.

Guhertina germ

Supported

Before removing the active  ES0D00SRUA00  card, perform an active/standby switchover.
