ET1D2SFUC000 03030TDC S12704/S12708 Switch Fabric Unit C for h w

ET1D2SFUC000-S12704/S12708 Switch Fabric Unit C



Version Mapping

Table 1  Switch chassis and software versions matching the card

Card Name	S12704 Chassis	S12708 Chassis	S12710 and S12712 Chassis
ET1D2SFUC000	Supported in V200R008C00 and later versions	Supported in V200R005C00 and later versions	Not supported

Introduction

The ET1D2SFUC000 can be installed in:

• Slots 07 to 08 in an S12704 chassis.
• Slots 11 to 14 in an S12708 chassis.

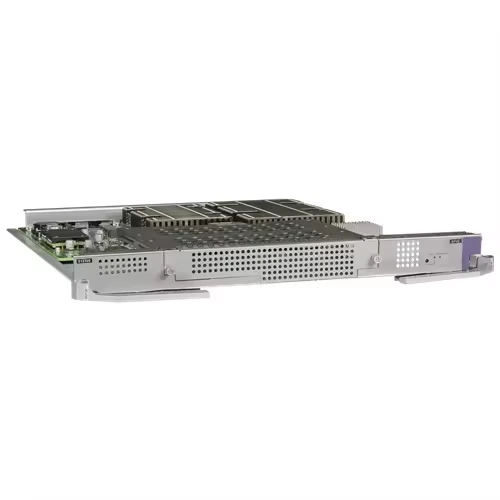

Figure 1  Appearance of the ET1D2SFUC000

Specifications

Table 2  Specifications of the ET1D2SFUC000

Item	Description
Physical specifications	Dimensions (H x W x D): 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.) Weight: 3.96 kg (8.73 lb) Maximum power consumption: 350 W (including subcards)
