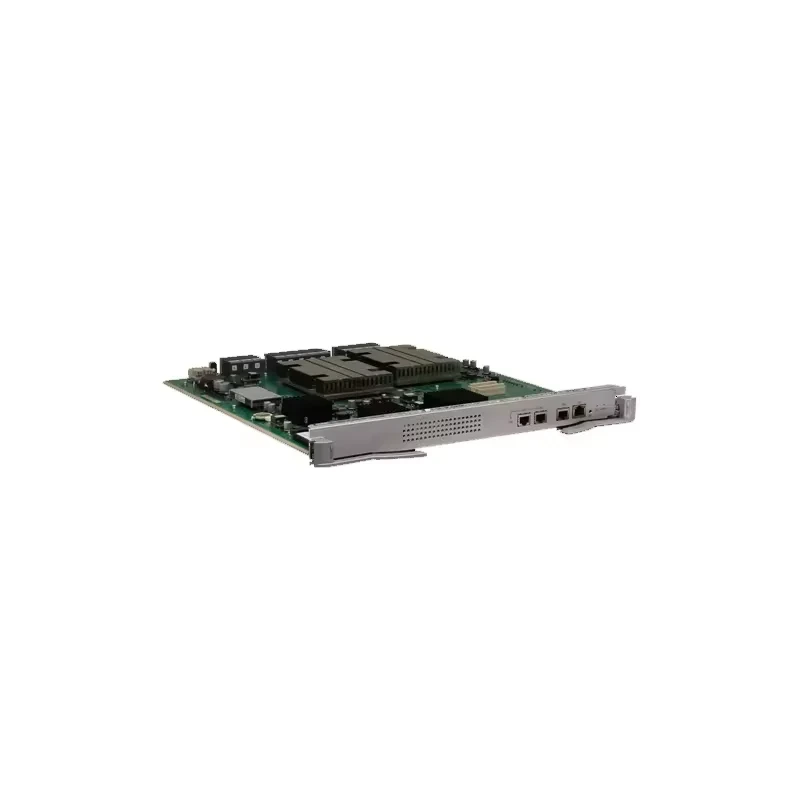

LE2D2SRUDC00 03021EVR S9306E/S9312E Main Control Unit D (Optional Clock) for h w

الوظيفة الأساسية

ال  LE2D2SRUDC00  is the system control and management unit for the  S9312E and S9306E . They integrate the main control unit, clock unit, switching unit, and system maintenance unit.

إعادة التوجيه الموزع

يقوم بإعادة توجيه البيانات بشكل متزامن باستخدام مستوى بيانات موزع.

OAM

• 802.1ag: identifies, detects, and sends continuity check (CC) packets.
• Multiprotocol Label Switching (MPLS OAM): identifies, detects, and sends MPLS OAM packets.
• OAM UNCFG_MEP.

ذاكرة

2 GB

فلاش

128 MB

CF card

512 MB by default

By default, the system configuration data, startup files, system software package, and system logs are saved to the CF card.

Clock

ال  LE2D2SRUDC00  can have LE0D00CKMA00 installed to provide stratum-3 clock, synchronous Ethernet , and IEEE 1588v2  functions.

Redundancy backup

Supported

MPUs are mandatory for switches. You can configure one or two MPUs for each switch. The MPU can be installed in either MPU slot of a switch. An MPU consists of the control plane, management plane, and data forwarding plane. When two MPUs are installed, the two MPUs work in hot standby mode on the control and management planes and work in load balancing mode on the data forwarding plane. MPUs monitor each other. When the active MPU is faulty, the standby MPU is automatically switched to be the active MPU to ensure service continuity.

التبديل الساخن

Supported

Before removing the active  LE2D2SRUDC00  card, perform an active/standby switchover.
