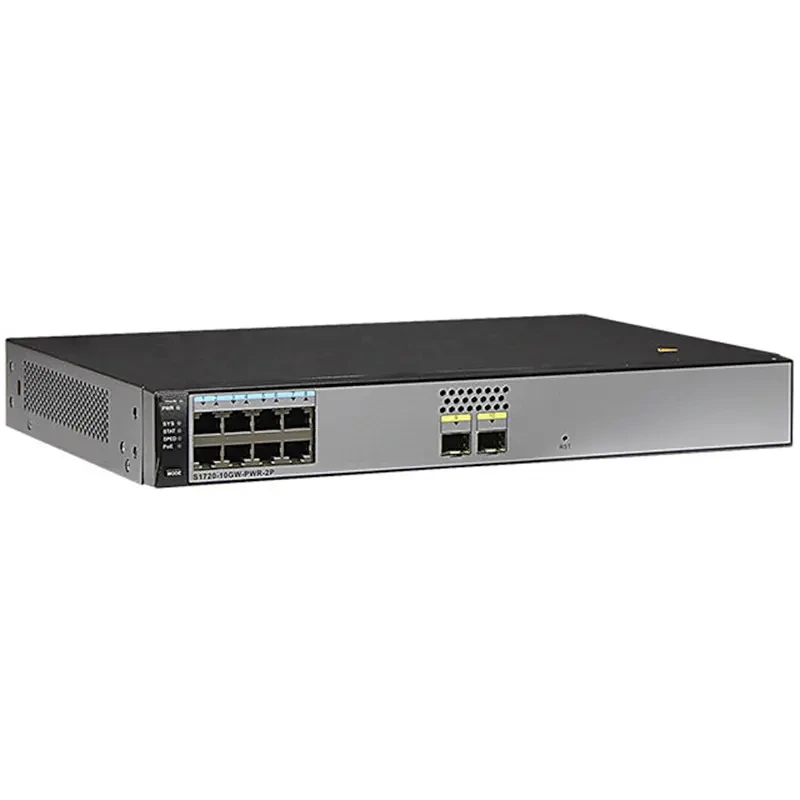

S1720-10GW-PWR-2P-E 98010754 Managed Ethernet Switch For H W

The S1700 series enterprise switches (S1700) are next-generation energy-saving Ethernet access switches. The S1700 uses high-performance hardware, which offers a wide array of features to help customers build secure, reliable, high-performance networks. The S1700 is easy to install and maintain, and is ideal for small-sized and medium-sized enterprises, Internet cafes, hotels, and schools.

The S1700 consists of unmanaged switches, web-managed switches, and web/SNMP-based switches:

• Unmanaged switches include the S1700-24-AC, S1700-52R-2T2P-AC, S1724G, S1700-24GR, S1700-16G, S1700-28GR-4X, and S1700-52GR-4X.

• The web-managed switches include the S1728GWR-4P, S1720-10GW-2P, S1720-10GW-PWR-2P, S1720-28GWR-4P, S1720-28GWR-4X, S1720-28GWR-PWR-4P, S1720-28GWR-PWR-4X, S1720-52GWR-4P, S1720-52GWR-4X, S1720-52GWR-PWR-4P, S1720-52GWR-PWR-4X, S1720-28GWR-PWR-4TP, S1720X-16XWR, and S1720X-32XWR.
• Web/SNMP-based switches include the S1700-28FR-2T2P-AC, S1700-28GFR-4P-AC, S1700-52FR-2T2P-AC, S1700-52GFR-4P-AC, S1720-20GFR-4TP, S1720-28GFR-4TP, S1720-10GW-2P-E, S1720-10GW-PWR-2P-E, S1720-28GWR-4P-E, S1720-28GWR-4X-E, S1720-28GWR-PWR-4P-E, S1720-28GWR-PWR-4TP-E, S1720-28GWR-PWR-4X-E, S1720-52GWR-4P-E, S1720-52GWR-4X-E, S1720-52GWR-PWR-4P-E, and S1720-52GWR-PWR-4X-E.

• Flexible Networking Capability

  • The S1700 managed switch provides 10/100/1000BASE-T, 1000BASE-X, and 10GE SFP+ ports. It supports multiple interface types such as access, Trunk, and hybrid.

  • The S1700 managed switch provides swappable Small Form-Factor Pluggable (SFP) optical modules for GE optical fiber connections and swappable Small Form-Factor Pluggable plus (SFP+) optical modules for 10GE optical fiber connections. The length of optical fibers can be selected according to the transmission distance.

  • The S1700 managed switch supports the Spanning Tree Protocol (STP), Rapid Spanning Tree Protocol (RSTP), and Multiple Spanning Tree Protocol (MSTP) (only SNMP managed S1700) to prevent loops and provide rapid switchover.

  Comprehensive Security Measures

  • The S1700 managed switch supports port-based MAC address filtering to prevent hackers from attacking user terminals or networks by forging MAC addresses.

  • The S1700 managed switch supports Remote Authentication Dial In User Service (RADIUS) authentication, 802.1x authentication, and MAC address authentication to prevent unauthorized users from accessing the enterprise network.

  • The S1700 SNMP managed switch supports the DHCP snooping function, which generates user binding entries based on MAC addresses, IP addresses, IP address leases, VLAN IDs, and interface numbers of users. This function protects networks against common attacks such as bogus IP packet, man-in-the-middle, and bogus DHCP server attacks.

  Comprehensive QoS Policies

  • The S1700 managed switch can classify traffic based on 802.1p fields, VLAN IDs (only SNMP managed S1700), MAC addresses (only SNMP managed S1700), and ACL (only SNMP managed S1700).

  • Each port of an S1700 managed switch supports up to 8 queues (each port of S1728GWR-4P supports up to 4 queues). In addition, the S1700 managed switch supports weighted round robin (WRR), Priority Queuing (PQ), WRR + PQ (only S1720), Weighted Deficit Round Robin (DRR) (only S1720), and PQ + WDRR (only S1720) queue scheduling algorithms to effectively ensure high-quality voice, video, and data services.

  Energy-Saving Design

  • The S1700 managed switches (except S1700-52GFR-4P-AC, S1720-28GWR-PWR-4P, S1720-28GWR-PWR-4P-E, S1720-28GWR-PWR-4X, S1720-28GWR-PWR-4X-E, S1720-52GWR-4P, S1720-52GWR-4P-E, S1720-52GWR-4X, S1720-52GWR-4X-E, S1720-52GWR-PWR-4P, S1720-52GWR-PWR-4P-E, S1720-52GWR-PWR-4X, S1720-52GWR-PWR-4X-E, S1720X-16XWR, S1720X-32XWR, S1720X-16XWR-E, and S1720X-32XWR-E) use natural heat dissipation, which avoids power consumption and noise of fans.
    NOTE:

    The S1700-52GFR-4P-AC, S1720-28GWR-PWR-4P, S1720-28GWR-PWR-4P-E, S1720-28GWR-PWR-4X, S1720-28GWR-PWR-4X-E, S1720-52GWR-4P, S1720-52GWR-4P-E, S1720-52GWR-4X, S1720-52GWR-4X-E, S1720-52GWR-PWR-4P, S1720-52GWR-PWR-4P-E, S1720-52GWR-PWR-4X, S1720-52GWR-PWR-4X-E, S1720X-16XWR, S1720X-32XWR, S1720X-16XWR-E, and S1720X-32XWR-E have fans and use forced air cooling.

  • The chip changes to the power saving mode when a service port is idle (no connected device is detected).

  • The switch uses energy-saving chips. With the help of the intelligent device management system, the chips not only improve system performance but also greatly reduce power consumption of the entire system.

  Cutting-Edge Surge Protection Capability

  The S1700 managed switch adopts the  patented surge protection technology to protect the equipment. The 6kV or 7KV surge protection capability (only the S1720GW, S1720GWR, S1720GW-E, and S1720GWR-E series) reduces the probability of damage caused by lightning, even when the equipment cannot be grounded.

  模型	S1720-10GW-PWR-2P-E
  描述	S1720-10GW-PWR-2P Bundle(8 Ethernet 10/100/1000 PoE+ ports,2 Gig SFP,with license,124W PoE AC 110/220V)
  Software and Hardware Attributes	Hardware
  Product Line	Enterprise Networking
  Product Family	Campus Switch & WLAN
  Sub Product Family	Fixed Switch
  Product Series	S1700
  UOM	PCS
  Pack Weight(kg)	2.9
  Pack Volume(m^157)	0.015458
  Pack Dimension(D*W*H mm)	452*380*90
  Typic Power(W)	150.1
