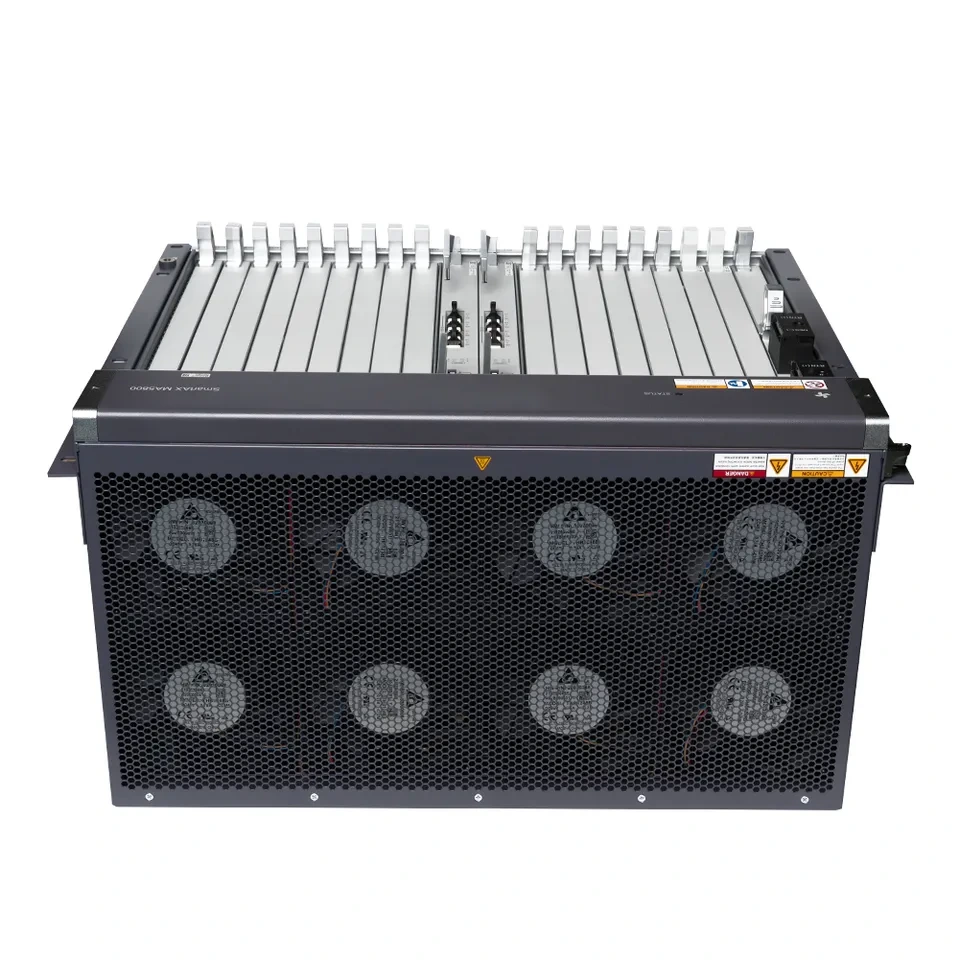

Supported Cabinets
|
N63E-22
|
N66E-22
|
N63E-22, N66E-22
|
N63E-22
|
|
Board Configuration
|
Control board slots: 9, 10
Service board or upstream interface board slots: 1 to 8, 11 to 19
Universal interface board slot: 0
Power board slots: 20, 21
|
Control board slots: 8, 9
Service board or upstream interface board slots: 1 to 7, 10 to 17
Universal interface board slot: 0
Power board slots: 18, 19
|
Control board slots: 8, 9
Service board or upstream interface board slots: 1 to 7
Universal interface board slot: 0
Power board slots: 10, 11
|
Control board slots: 3, 4
Service board or upstream interface board slots: 1 to 2
Does not support universal interface board
Power board slot: 0
|
Размеры
(W x D x H)
|
11U high and 21 inches wide
Excluding mounting brackets: 493 x 287 x 486 mm
Including mounting brackets: 535 x 287 x 486 mm
|
11U high and 19 inches wide
Excluding mounting brackets: 442 x 287 x 486 mm
Including mounting brackets: 482.6 x 287 x 486 mm
|
6U high and 19 inches wide
Excluding mounting brackets: 442 x 268.7 x 263.9 mm
Including IEC mounting brackets: 482.6 x 268.7 x 263.9 mm
Including ETSI mounting brackets: 535 x 268.7 x 263.9 mm
|
2U high and 19 inches wide
Excluding mounting brackets: 442 x 268.7 x 88.1 mm
Including IEC mounting brackets: 482.6 x 268.7 x 88.1 mm
Including ETSI mounting brackets: 535 x 268.7 x 88.1 mm
|
|
Maximum Weight (Including Mounting Brackets)
|
45 кг
|
35 кг
|
26 кг
|
9.4 кг
|
|
Maximum Input Current
|
60 A
|
60 A
|
40 A
|
DC power supply: 20 A
AC power supply: 8 A
|
|
Power Supply Modes
|
DC power support (dual for backup)
|
DC power support (dual for backup)
|
DC power support (dual for backup)
|
DC power support (dual for backup)
AC power supply + battery for backup
|
|
Working Voltage Range
| –38.4 V to –72 V DC
| –38.4 V to –72 V DC
| –38.4 V to –72 V DC
|
DC power supply: –38.4 V to –72 V
AC power supply: 100 V to 240 V
|
|
Номинальное напряжение
| –48 V/–60 V
| –48 V/–60 V
| –48 V/–60 V
|
DC power supply: –48 V/–60 V
AC power supply: 110 V/220 V |
|
Ambient Temperature
| –40°С к 65°C. The device can start up at temperatures as low as –25°C.
Примечание: The 65°C refers to the highest temperature measured at the air intake vent of the service subrack.
|
|
Ambient Humidity
|
5–95% RH
|
|
Atmospheric Pressure
|
70–106 kpa
|
70–106 kpa
|
70–106 kpa
|
70–106 kpa
|
|
Высота
|
4000 m. The air density varies with altitude and will affect the heat dissipation of a device. Therefore, the working environment temperature of EA5800 varies with altitude.
|
|
Switching Capacity of the Control Board (Load Sharing Mode)
|
MPLAE: 3.6 Tbit/s
MPLBE: 8 Tbit/s
|
MPLAE: 3.6 Tbit/s
MPLBE: 8 Tbit/s
|
MPLAE: 3.6 Tbit/s
MPLBE: 8 Tbit/s
|
480 Gbit/s
|
|
Maximum Bandwidth per Service Slot (Load Sharing Mode)
|
MPLAE: 100 Gbit/s
MPLBE: 200 Gbit/s
|
MPLAE: 100 Gbit/s
MPLBE: 200 Gbit/s
|
MPLAE: 100 Gbit/s
MPLBE: 200 Gbit/s
|
80 Gbit/s
|
|
System Layer 2 Packet Forwarding Rate (Load Sharing Mode)
|
5298 mpps
|
5298 mpps
|
5298 mpps
|
714 mpps
|
|
Maximum Number of Concurrent 4K Video Users
|
17,000
|
17,000
|
7000
|
2000
|
|
Maximum Number of ARP/Routing Entries
|
131,072
|
131,072
|
131,072
|
131,072
|
|
Switching/Forwarding Delay
|
Short forwarding delay: The 100 Mbit/s Ethernet port sends 64-byte Ethernet packets with a delay shorter than 20 μs.
|
|
Bit Error Rate (BER) in Full Load
|
A BER smaller than 10e
-7
for a port that transmits data in full load.
|
|
System Reliability Specifications
|
System availability for typical configurations: > 99.999%
Mean-Time-Between-Failures (MTBF): Approximately 45 years.
Note: Due to different network environments and different boards used by devices, the preceding MTBF (45 years) of EA5800 is only for reference. The average repair time for Field Replaceable Units (FRUs) is about 2 hours. The preceding values are only for reference. For details, please contact relevant Huawei engineers.
|
|
GPON Ports/XG(S)-PON Ports
|
272
|
240
|
112
|
32
|
|
GE/FE Ports
|
816
|
720
|
336
|
96
|
|
10 GE Ports
|
408
|
360
|
168
|
16
|
|
Type C Switch Latency
| < 30 ms (with industrial optical ring board)
|
