03020QFJ LE0MF48TC-48-Port 10/100BASE-T Interface Card (EC, RJ45) for h w

 LE0MF48TC-48-Port 10/100BASE-T Interface Card (EC, RJ45)



Version Mapping

Table 1 Switch chassis and software versions matching the card

Card Name	S9300 Chassis	S9300E Chassis
LE0MF48TC	S9303, S9306 and S9312 chassis: supported in V100R001C02 and later versions S9310 chassis: supported in V200R010C00 and later versions	Supported in V200R001C00 to V200R013C00

Introduction

The LE0MF48TC can be installed in:

• Slots 01 to 03 in an S9303 chassis.
• Slots 01 to 06 in an S9306 chassis.
• Slots 01 to 10 in an S9310 chassis.
• Slots 01 to 12 in an S9312 chassis.
• Slots 01 to 03 in an S9303E chassis.
• Slots 01 to 06 in an S9306E chassis.
• Slots 01 to 12 in an S9312E chassis.

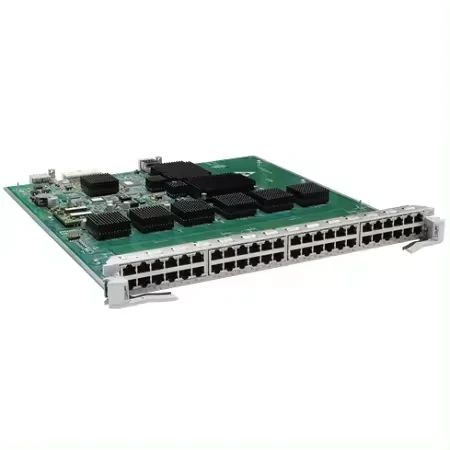

Figure 1 Appearance of the LE0MF48TC

Functions

Table 2 Functions of the LE0MF48TC

Function	Description
Basic function	Provides forty-eight FE electrical ports for data transmission and switching.
Distributed forwarding	Performs concurrent data forwarding using a distributed data plane.
Hot swapping	The LE0MF48TC is hot swappable.



Specifications

Table 3 Specifications of the LE0MF48TC

Item	Description
Physical specifications	Dimensions (H x W x D): 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.) Weight: 2.66 kg (5.86 lb) Maximum power consumption: 70 W
