03031QHU H87MMA5671A2 GPON ONU Device-SFP SFP Optical Module 1

03031QHU H87MMA5671A2 GPON ONU Device-SFP SFP Optical Module 2

03031QHU H87MMA5671A2 GPON ONU Device-SFP SFP Optical Module

Samples:

$200.0/piece | Min. order : 1 piece

Shipping:

Support Sea freight

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-10(pieces):3(days),11-100(pieces):7(days),101-500(pieces):15(days),>500(pieces):To be negotiated(days)

Customization:

Customized logo (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets),Graphic customization (Min. Order: 10000 sets)

Brand Name:

Model Number:

H87MMA5671A2

Inquiry

Write a Review

Switch Capacity:

1.28T/12.8T

Communication Mode:

Full-Duplex & Half-Duplex

Transmission Rate:

10/100/1000Mbps

Products Status:

Stock

Use

other

Place of Origin

Guangdong, China

Type

Enterprise Switch

Product Description

Part Number	03031QHU
Model	H87MMA5671A2
Description	GPON ONU Device-SFP-1490nm(rx)/1310nm(tx)-2.488G(rx)/1.244G(TX)-0.5dBm-5dBm--27dBm-SC/APC-20km-Air ONU--40~85degC
Level-1 category	GPON ONU SFP Optical Module
Module name	GPON ONU-SFP-SMF-1490nm(rx)/1310nm(tx)-20km-industry

Details Images

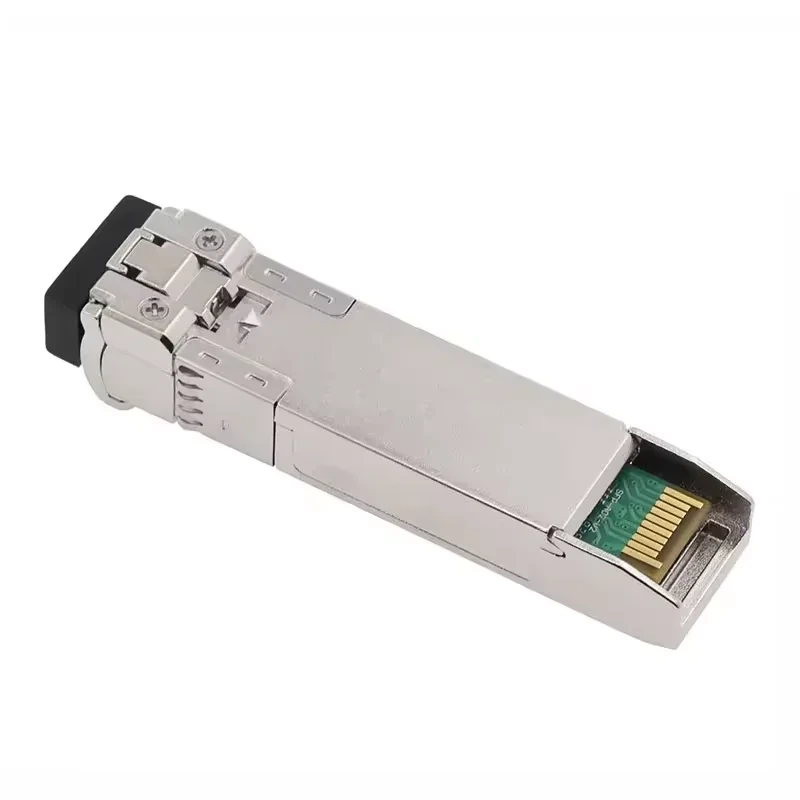

03031QHU H87MMA5671A2 GPON ONU Device-SFP SFP Optical Module

Specification

Connector type	SC/APC
Optical fiber type	SMF
Form factor	SFP
Transmission rate [bit/s]	2.488 Gbit/s(rx)/1.244 Gbit/s(TX)
Target transmission distance [km]	20 km
Application standard	FSAN G.984.2, OMCI support per ITU-T G.988
Working case temperature [°C(°F)]	-40°C to 85°C(-40°F to 185°F)
Center wavelength [nm]	1310 nm
Overload power (OMA) [dBm]	-
Overload power (AVG) [dBm]	-8 dBm
Minimum Tx optical power (OMA) [dBm]	-
Minimum Tx optical power (AVG) [dBm]	0.5 dBm
Maximum Tx optical power (OMA) [dBm]	-
Maximum Tx optical power (AVG) [dBm]	5 dBm
Minimum extinction ratio [dB]	10 dB
Tx operating wavelength range [nm]	1290 nm - 1330 nm
Rx operating wavelength range [nm]	1480 nm - 1500 nm
Rx sensitivity (AVG) [dBm]	-27 dBm
Rx sensitivity (OMA) [dBm]	-
DDM options	SFF-8472
Bit error ratio (BER)	<1x10E-12
Environment standard	RoHS
Security standard	FCC Class B, IEC 60825-1 Class 1
ESD(HBM1)	500
