S620-24T16X8Y2CZ 98012535 24*10/100/1000BASE-T ports, 16*10GE SFP+ ports, 8*25GE SFP28 ports ethernet network switch
5.0
Samples:
$1000.0/piece | Min. order : 1 piece
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1(pieces):3(days),2-100(pieces):7(days),101-500(pieces):15(days),>500(pieces):To be negotiated(days)
Brand Name:
hw
Model Number:
S620-24T16X8Y2CZ
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Weight
9 kg
Use
other
Place of Origin
Guangdong, China
Type
Enterprise Switch
Products Description
S600 series Ethernet switches based on cutting-edge hardware and Versatile Routing Platform (VRP) software, the S500 supports Energy Efficient Ethernet (EEE) and iStack. The S500 can be used in extensive enterprise network scenarios. For example, it can function as an access switch on a campus network.

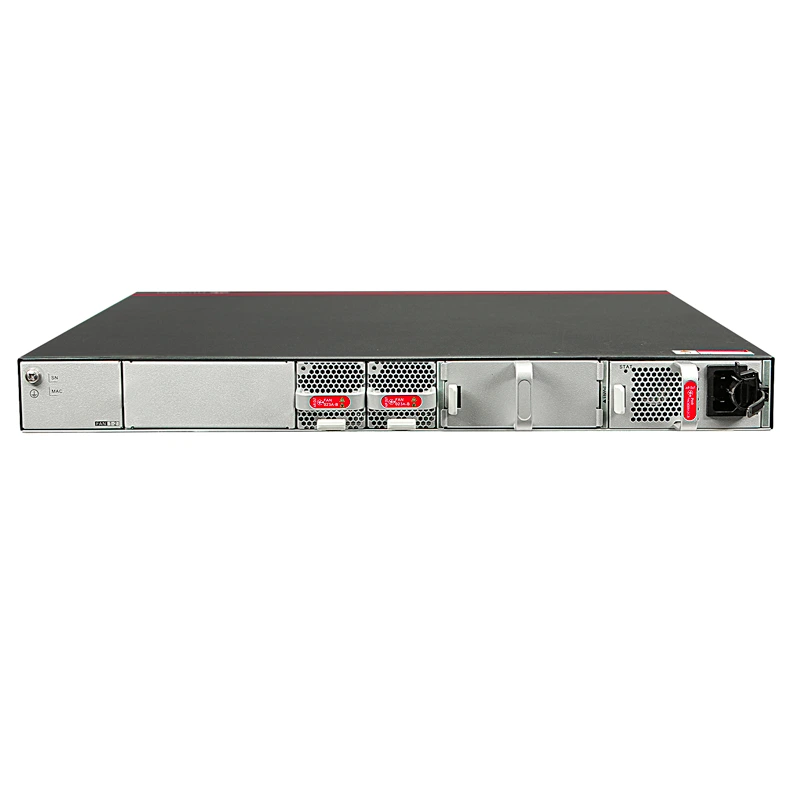

Details Images
Specification
|
Item
|
Specification
|
|
Dimensions without packaging (H x W x D) [mm(in.)]
|
Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.)
|
|
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm
x 442.0 mm x 454.0 mm (1.72 in. x 17.4 in. x 17.87 in.) |
|
|
Dimensions with packaging (H x W x D) [mm(in.)]
|
145.0 mm x 650.0 mm x 550.0 mm (5.71 in. x 25.59 in. x 21.65 in.)
|
|
Chassis height [U]
|
1 U
|
|
Chassis material
|
Metal
|
|
Weight without packaging [kg(lb)]
|
6.31 kg (13.91 lb)
|
|
Weight with packaging [kg(lb)]
|
8.76 kg (19.31 lb)
|
|
Typical power consumption [W]
|
30% traffic under the ATIS standard and dual power modules:
|
|
122 W (with two 180 W AC power modules)
|
|
|
118 W (with two 240 W DC power modules)
|
|
|
Typical heat dissipation [BTU/hour]
|
30% traffic under the ATIS standard and dual power modules:
|
|
416.26 (with two 180 W AC power modules)
|
|
|
402.61 (with two 240 W DC power modules)
|
|
|
Maximum power consumption [W]
|
100% traffic under the ATIS standard and dual power modules:
|
|
127 W (with two 180 W AC power modules)
|
|
|
123 W (with two 240 W DC power modules)
|
|
|
Maximum heat dissipation [BTU/hour]
|
100% traffic under the ATIS standard and dual power modules:
|
|
433.32 (with two 180 W AC power modules)
|
|
|
419.67 (with two 240 W DC power modules)
|
|
|
Static power consumption [W]
|
77 W
|
|
MTBF [years]
|
47.17 years
|
|
MTTR [hours]
|
2.54 hours
|
|
Availability
|
> 0.99999
|
|
Noise at normal temperature (acoustic power) [dB(A)]
|
54.2 dBA
|
|
Noise at normal temperature (acoustic pressure) [dB(A)]
|
41.2 dBA
|
|
Number of card slots
|
2
|
|
Number of power slots
|
2
|
|
Number of fans modules
|
2
|
|
Redundant power supply
|
1+1
|
|
Pluggable AC and DC power modules can be used together on the same device.
|
|
|
NOTE:
|
|
|
Power modules with fans and power modules without fans cannot be installed on the same device.
|
|
|
Long-term operating temperature [°C(°F)]
|
–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)
|
|
Short-term operating temperature [°C(°F)]
|
-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
|
|
Restriction on the operating temperature variation rate [°C(°F)]
|
When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the
altitude increases by 220 m (722 ft.). |
|
The device can work for a short period of time when the operating temperature is beyond the normal range, but the following
conditions must be met: |
|
|
The operating temperature can exceed 45°C (113°F) for a maximum of 96 consecutive hours in a year.
|
|
|
The total time when the operating temperature exceeds 45°C (113°F) in a year is less than or equal to 360 hours.
|
|
|
The number of times the operating temperature exceeds 45°C (113°F) is less than or equal to 15 in one year.
|
|
|
If any of the preceding conditions is not met, the device may be damaged or an unknown error may occur.
|
|
|
Devices cannot start when the temperature is lower than 0°C (32°F). The maximum transmission distance of an optical module used
for short-term operation cannot exceed 10 km. |
|
|
Storage temperature [°C(°F)]
|
–40°C to +70°C (–40°F to +158°F)
|
|
Long-term operating relative humidity [RH]
|
5% RH to 95% RH (non-condensing)
|
|
Long-term operating altitude [m(ft.)]
|
0–5000 m (0–16404 ft.)
|
|
Storage altitude [m(ft.)]
|
0-5000 m (0-16404 ft.)
|
|
Power supply mode
|
Pluggable power supply
|
|
Rated input voltage [V]
|
AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC; 50/60 Hz
|
|
High-voltage DC input: 240 V DC
|
|
|
DC input: –48 V DC to –60 V DC
|
|
|
Input voltage range [V]
|
AC input: 90 V AC to 290 V AC; 45 Hz to 66 Hz
|
|
High-voltage DC input: 190 V DC to 290 V DC
|
|
|
DC input: -38.4 V DC to -72 V DC
|
|
|
Maximum input current [A]
|
The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules.
|
|
Memory
|
4 GB
|
|
Flash memory
|
Physical space: 2 GB
|
|
Console port
|
RJ45
|
|
Eth Management port
|
RJ45
|
|
USB
|
Supported
|
|
RTC
|
Supported
|
|
RPS input
|
Not supported
|
|
Power supply surge protection [kV]
|
Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode
|
|
Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode
|
|
|
Ingress protection level (dustproof/waterproof)
|
IP20
|
|
Types of fans
|
Pluggable
|
|
Heat dissipation mode
|
Air cooling for heat dissipation, intelligent fan speed adjustment
|
|
Airflow direction
|
Air intake from front and right and air exhaust from rear
|
|
PoE
|
Not supported
|
|
Certification
|
EMC certification
|
|
Safety certification
|
|
|
Manufacturing certification
|
