CloudEngine S5735-S24T4XE-C-V2 98012394 24*10/100/1000BASE-T ports, 4*10GE SFP+ ports 24 port gigabit switch 1

CloudEngine S5735-S24T4XE-C-V2 98012394 24*10/100/1000BASE-T ports, 4*10GE SFP+ ports 24 port gigabit switch 2

CloudEngine S5735-S24T4XE-C-V2 98012394 24*10/100/1000BASE-T ports, 4*10GE SFP+ ports 24 port gigabit switch 3

CloudEngine S5735-S24T4XE-C-V2 98012394 24*10/100/1000BASE-T ports, 4*10GE SFP+ ports 24 port gigabit switch 4

CloudEngine S5735-S24T4XE-C-V2 98012394 24*10/100/1000BASE-T ports, 4*10GE SFP+ ports 24 port gigabit switch 5

CloudEngine S5735-S24T4XE-C-V2 98012394 24*10/100/1000BASE-T ports, 4*10GE SFP+ ports 24 port gigabit switch 6

CloudEngine S5735-S24T4XE-C-V2 98012394 2410/100/1000BASE-T ports, 410GE SFP+ ports 24 port gigabit switch

Samples:

$347/piece | Min. order : 1 piece

Shipping:

Support Sea freight

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-10(pieces):3(days),11-100(pieces):7(days),101-500(pieces):15(days),>500(pieces):To be negotiated(days)

Brand Name:

Model Number:

S5735-S24T4XE-C-V2

Inquiry

Write a Review

Use

other

Place of Origin

Guangdong, China

Type

Enterprise Switch

Products Description

CloudEngine S5735-S-C-V2 series protection-tailored switches are ideal for diverse scenarios such as the access and aggregation layers of enterprise campuses, and the access layer of data centers. Built on the next-generation high-performance hardware and unified software platform, CloudEngine CloudEngine S5735-S-C-V2 series switches stand out for enhanced Layer 3 features, easy O&M, flexible Ethernet networking, and mature IPv6 features, as well as dustproof and anti-corrosion protection.

Details Images

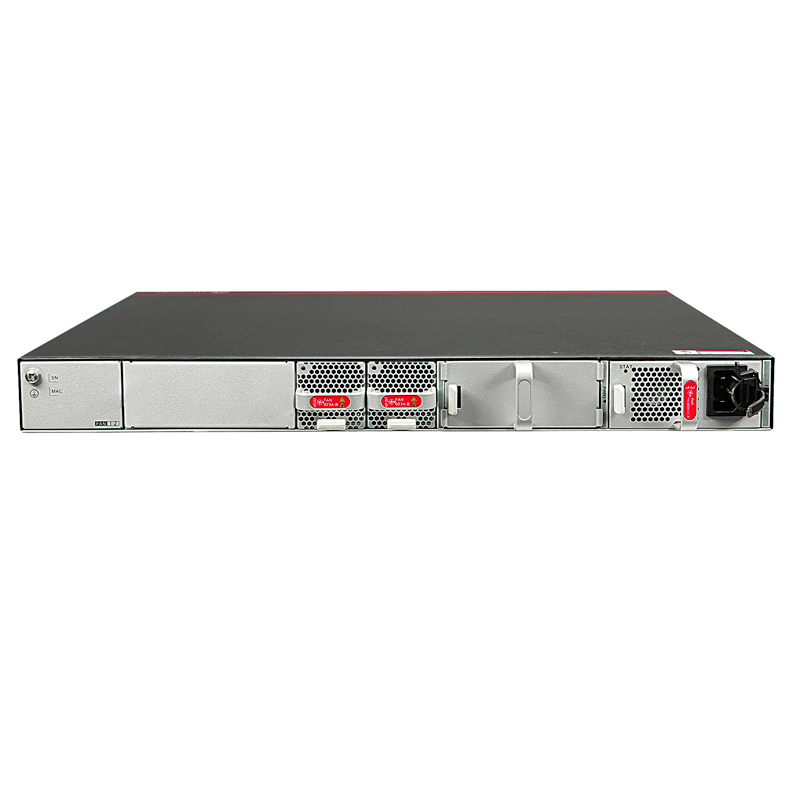

CloudEngine S5735-S24T4XE-C-V2 98012394 24*10/100/1000BASE-T ports, 4*10GE SFP+ ports 24 port gigabit switch 7

Specification


Chassis material	Metal
Height [mm]	43.6 mm
Depth [mm]	420.0 mm
Wide [mm]	442.0 mm
Chassis height [U]	1
Weight with packaging [kg(lb)]	7.48 kg (16.49 lb)
Weight without packaging [kg(lb)]	4.34 kg (9.57 lb)
Maximum power consumption [W]	33.10 W (with two 80 W AC power modules)
Typical power consumption [W]	26.20
Heat dissipation mode	Natural heat dissipation at room temperature, air cooling for heat dissipation at high temperature, and intelligent fan speed adjustment
Maximum heat dissipation [BTU/hour]	112.94 (with two 80 W AC power modules)
Typical heat dissipation [BTU/hour]	89.40
Power supply mode	Pluggable power supply
Input voltage range [V]	AC input: 90–290 V AC; 45–65 Hz
Rated input voltage [V]	AC input: 100–240 V AC; 50/60 Hz
Maximum input current [A]	The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules.
Number of power slots	2
Number of card slots	0
Memory	2 GB
Flash memory	Physical space: 1 GB
Redundant power supply	1+1
Types of fans	Built-in
Noise at normal temperature (acoustic power) [dB(A)]	The device is silent and has fans. At room temperature, the fans stop running after the device is registered.
Noise at normal temperature (acoustic pressure) [dB(A)]	The device is silent and has fans. At room temperature, the fans stop running after the device is registered.
Airflow direction	Air flows in from the left, front, and right sides and exhausts from the rear in high-temperature environments.
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Devices cannot start when the temperature is lower than 0°C (32°F).
Long-term operating relative humidity [RH]	5% RH to 95% RH (non-condensing)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Long-term operating altitude [m(ft.)]	0–5000 m (0–16404 ft.)
MTBF [year]	168.93
MTTR [hour]	2
Availability	> 0.99999
Maximum number of physical ports on the entire device	30
Maximum number of 100GE ports	0
Maximum number of 40GE ports	0
Maximum number of 25GE ports	0
Maximum number of 10GE ports	4
Maximum number of GE ports	28
Maximum number of FE ports	24
10GE optical interface	4
1000M electrical interface	24
USB	Supported
Console port	RJ45
Eth Management port	Not supported
Service port surge protection [kV]	Common mode: ±7 kV
Power supply surge protection	Differential mode: ±6 kV; common mode: ±6 kV
RPS input	Not supported
PoE	Not supported

FAQ

1. Why choose us?
We are the leading supplier of quality networking equipments and we have over 10 years experience in this field.

2. What's the quality of the products?
All the items are brand original.

3. How to place an order?
After customer confirm the order , we will create an order as your request. We accept many terms of trade such as T/T,
Wester,Union, Alibaba Orders, Alipy and etc.

4. How about the shipment?
We deliver products by FEDEX, DHL, ARAMEX, EMS, UPS, TNT and Air shipping & Ocean transportation.

5. How about the warranty?
1 Year warranty.

6. Do you test all your goods?
A: Yes, we have professional engineer to test all devices before shipping.

7. What if machine not work during warranty?
Technical support avaliable,if can't fixed, replacement or return with full refund acceptable.

8. How about your main products?
Our product lines include Switches, Routers, SFP Modules, OLTs, SDHs, Network Modules, Interface Cards, Security Firewalls, Wireless AP etc.

9. What brand of products do you offer?
A: We can provide all common brands in the market
