AR651U-A4 50010484 2*ge Combo Wan,8*ge Lan,1*usb2.0,1*hdd,1*mic Slot
5.0
Samples:
$1000.0/piece | Min. order : 1 piece
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-10(pieces):3(days),11-100(pieces):7(days),101-500(pieces):15(days),>500(pieces):To be negotiated(days)
Customization:
Customized logo (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets),Graphic customization (Min. Order: 10000 sets)
Brand Name:
hw
Model Number:
AR651U-A4
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Use
other
Place of Origin
Guangdong, China
Type
Enterprise Router
Product Description
| Item | Details |
|---|---|
| Description | AR651U-A4, 2*GE combo WAN, 8*GE LAN, 1*USB2.0, 1*HDD, 1*MIC slot |
| Part Number | 50010484 |
| Model | AR651U-A4 |
| First supported version | V300R019C10 |
| Remarks |
Part number of the AR651U-A4-L4EA equipped with the 1LTE4-EA card: 02351WGP (supported in V300R003C00 to V300R019C00 versions) Part number of the AR651U-A4-L6EA equipped with the 1LTE6-EA card: 02351WGN (supported in V300R003C00 to V300R019C00 versions) Part number of the AR651U-A4: 50010484 (supported in V300R019C10 and later versions) The routers manufactured after March 31, 2021 support only V300R019C13 and later versions. |

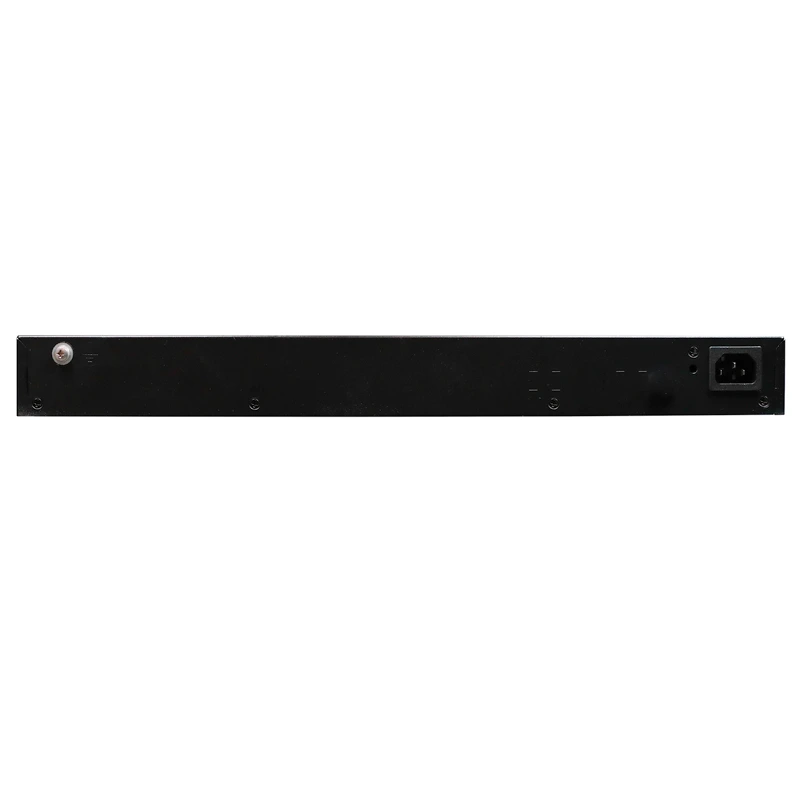

Details Images
Specification
| Item | Specification |
|---|---|
| Installation type |
|
| Dimensions without packaging (H x W x D) |
|
| Dimensions with packaging (H x W x D) [mm(in.)] | 110 mm x 435 mm x 360 mm (4.33 in. x 17.13 in. x 14.17 in.) |
| Chassis height [U] | 1 U |
| Weight with packaging [kg(lb)] | 2.89 kg (6.35 lb) |
| Weight without packaging [kg(lb)] | 1.92 kg (4.23 lb) |
| CPU | 1.4 GHz, 4 Cores |
| Memory | 4 GB |
| NAND Flash | 1 GB |
| Hard disk |
SATA 2.5-inch hard drive is supported. NOTE:
The SSD-Sata240G hard disk (BOM: 02312SEU) is recommended. |
| Console port | RJ45 |
| RTC | Supported |
| Maximum power consumption [W] | 35 W |
| Power supply mode | AC external |
| Number of power modules | 1 |
| Rated input voltage [V] | 100 V to 240 V, 50 Hz/60 Hz |
| Input voltage range [V] | 90 V to 264 V, 47 Hz to 63 Hz |
| Maximum input current [A] | 3 A |
| Maximum output power [W] | 36 W |
| Type of fans | Built-in |
| Number of fan modules | 0 |
| Heat dissipation mode | Air cooling |
| Airflow direction | Left to right |
| Extended slots (standard configuration) | 1 x MIC |
| Redundant power supply | Not supported |
| RPS input | Not supported |
| PoE | Not supported |
| Noise at normal temperature (acoustic power) [dB(A)] | 41.9 dB(A) |
| Long-term operating temperature [°C(°F)] |
0°C to 45°C (32°F to 113°F) NOTE:
When the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | < 5000 m (16404.2 ft.) |
| MTBF [year] | 42.67 year |
| MTTR [hour] | 2 hour |
| Availability | 0.9999946496 |
Why Choose Us
A)Stable and Wide Supply Chain System
we have established a perfect supply chain system to provide a wide range of products with reliable quality and reasonable price.
B)Competitive Price
We ensure the most competitive price. Warm reminders here, telecommunications equipment configuration is quite different, the price shown on the website is only for reference. After configuration and quantity been confirmed, we will give the final most competitive discounted price.
C) Safe and Easy Payment Solutions
We support a variety of payment methods, such as T/T, credit card, et
D)Fast Delivery and Shipping
Fast, professional and reliable delivery.
E)Complete and powerful pre-sales and after-sales service system
To provide customers with professional pre-sales service, as well as after-sales technical services
F)More Than 20 Years Industry Experience
we have been engaged in this industry more than 20 years, we have rich industry experience
FAQ
Q: How about your main products?
A:Our product lines include Switches.Routers,OLTs,SDHs. Network Modules, Interface Cards, Security Firewalls, Wireless AP etc.
Q: What brand of products do you offer?
A:We are devoted to offering Huawei, ZTE, Cisco, H3C， HP, Dell, Lenovo, Ruijie and other network equipment brands
Q:Can we get free samples?
A: Sorry, it is not available, but you can pay for one.
Q: What trade terms do you use ?
A: We offer EXW.FOB,CIF and CNF or as your request.
Q: How about your delivery time?
A:Generally, it will take 1 to 10 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q: Do you test all your goods?
A:Yes we have professional engineer to test all devices before shipping.
