S5720-32X-EI-24S-DC 02350NHE S5700 Series S5720-EI Series 24-port Gigabit SFP Switch 1

S5720-32X-EI-24S-DC 02350NHE S5700 Series S5720-EI Series 24-port Gigabit SFP Switch 2

S5720-32X-EI-24S-DC 02350NHE S5700 Series S5720-EI Series 24-port Gigabit SFP Switch 3

S5720-32X-EI-24S-DC 02350NHE S5700 Series S5720-EI Series 24-port Gigabit SFP Switch 4

S5720-32X-EI-24S-DC 02350NHE S5700 Series S5720-EI Series 24-port Gigabit SFP Switch 5

S5720-32X-EI-24S-DC 02350NHE S5700 Series S5720-EI Series 24-port Gigabit SFP Switch

Samples:

$290/piece | Min. order : 1 piece

Shipping:

Support Sea freight

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-1(pieces):3(days),2-100(pieces):7(days),101-500(pieces):15(days),>500(pieces):To be negotiated(days)

Brand Name:

Model Number:

S5735R-L8T4S-A-V2

Inquiry

Write a Review

Use

other

Place of Origin

Guangdong, China

Type

Enterprise Switch

Products Description

Based on the next-generation high-performance hardware and unified software platform, the CloudEngine S5735R-L-V2 series switches feature flexible Ethernet networking, various security control methods, and easy O&M.

These switches support multiple Layer 3 routing protocols, provide higher performance, and offer more service processing
capabilities, making them ideal for various industries, such as healthcare, retail, mining, and Internet.

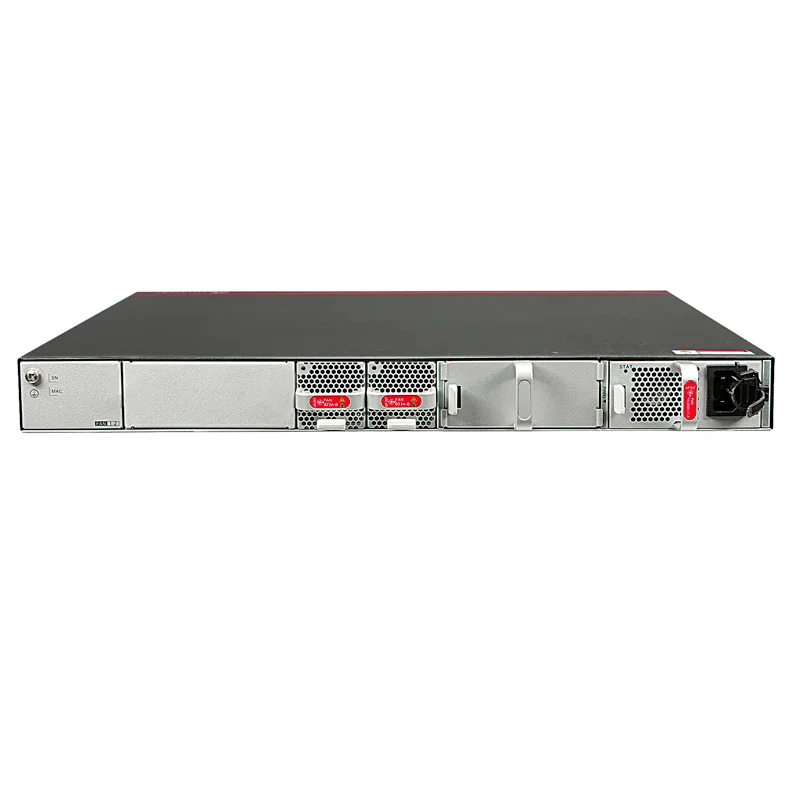

Details Images

S5720-32X-EI-24S-DC 02350NHE S5700 Series S5720-EI Series 24-port Gigabit SFP Switch 6

Specification

Item	Description
Memory (RAM)	2 GB
Flash	512 MB in total
Mean time between failures (MTBF)	82.54 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	Common mode: ±6 kV
Power supply surge protection	±1 kV in differential mode, ±2 kV in common mode
Dimensions (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 224.9 mm (1.72 in. x 17.4 in. x 8.85 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 237.3 mm (1.72 in. x 17.4 in. x 9.34 in.)
Weight (with packaging)	4.2 kg (9.26 lb)
Stack ports	Two fixed QSFP+ stack ports on the rear card
RTC	Supported
RPS	Supported
PoE	Not supported
Rated voltage range	-48 V DC to -60 V DC
Maximum voltage range	-36 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans)	58.9 W
Typical power consumption (30% of traffic load)	55.46 W
Operating temperature	0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	< 49.3 dB(A)
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-2000 m (0-6562 ft.)
Certification	EMC certification Safety certification Manufacturing certification
Part number	02350NHE
