S5735-L24LU8S4XE-QA-V2 98012374 (8*10/100/1000BASE-T ports(PoE++) , 16*10/100/1000base-T Ports (PoE+) Ethernet Gigabit Poe Switch
5.0
Samples:
$755/piece | Min. order : 1 piece
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-5(pieces):3(days),6-100(pieces):7(days),101-500(pieces):15(days),>500(pieces):To be negotiated(days)
Brand Name:
hw
Model Number:
S5735-L24LU8S4XE-QA-V2
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Use
other
Place of Origin
Guangdong, China
Type
Enterprise Switch
Products Description

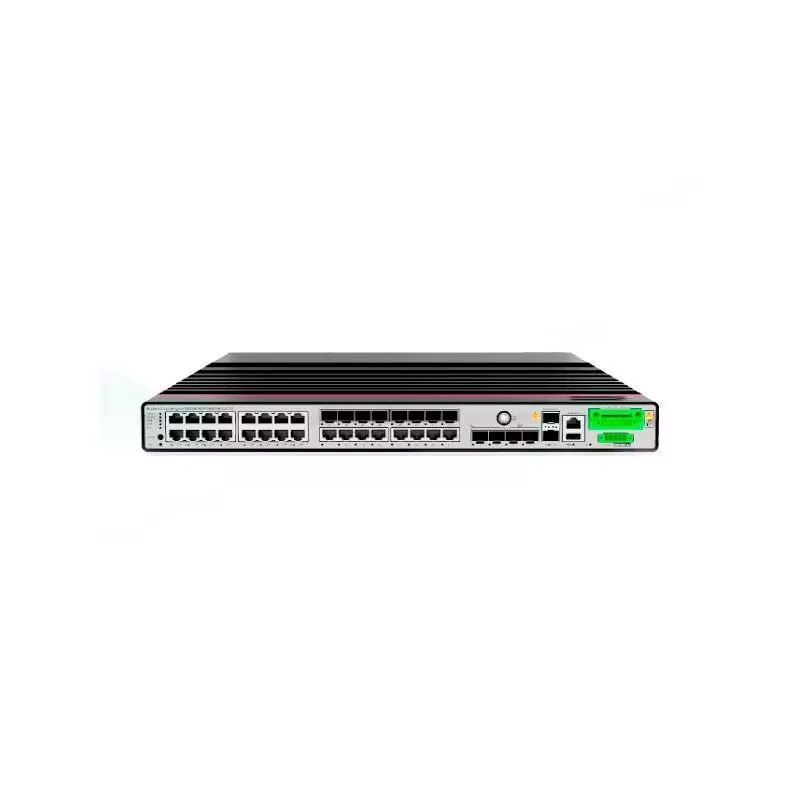

Based on the next-generation high-performance hardware and Huawei's unified software platform, the CloudEngine S5735-L-Q-V2 series switches feature flexible Ethernet networking, various security control methods, and easy O&M. These switches support multiple Layer 3 routing protocols, provide higher performance, and offer more service processing capabilities.
The whole series of CloudEngine S5735-L-Q-V2 switches are noise-free and energy-saving thanks to their fanless design, making them ideal for various industries, such as healthcare, retail, mining, and Internet.
Details Images
Specification
|
Item
|
Specification
|
|
Dimensions without packaging (H x W x D) [mm(in.)]
|
Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 360.0 mm (1.72 in. x 17.4 in. x 14.17 in.)
|
|
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm
x 442.0 mm x 365.0 mm (1.72 in. x 17.4 in. x 14.37 in.) |
|
|
Dimensions with packaging (H x W x D) [mm(in.)]
|
145.0 mm x 660.0 mm x 550.0 mm (5.71 in. x 25.98 in. x 21.65 in.)
|
|
Chassis height [U]
|
1 U
|
|
Chassis material
|
Metal
|
|
Weight without packaging [kg(lb)]
|
5.05 kg (11.13 lb)
|
|
Weight with packaging [kg(lb)]
|
7.02 kg(lb)
|
|
Typical power consumption [W]
|
30% traffic under the ATIS standard: 37.9 W
|
|
Typical heat dissipation [BTU/hour]
|
30% traffic under the ATIS standard: 129.32
|
|
Maximum power consumption [W]
|
Without PoE: 46.20 W
|
|
Full PoE load: 311.01 W (PoE: 247 W)
|
|
|
Maximum heat dissipation [BTU/hour]
|
Without PoE: 157.64
|
|
Full PoE load: 1061.19
|
|
|
Static power consumption [W]
|
24.5 W
|
|
MTBF [years]
|
34.58 years
|
|
MTTR [hours]
|
3.47 hours
|
|
Availability
|
> 0.99999
|
|
Noise at normal temperature (acoustic power) [dB(A)]
|
Noise-free (no fans)
|
|
Noise at normal temperature (acoustic pressure) [dB(A)]
|
Noise-free (no fans)
|
|
Number of card slots
|
0
|
|
Number of power slots
|
0
|
|
Number of fans modules
|
0
|
|
Redundant power supply
|
Not supported
|
|
Long-term operating temperature [°C(°F)]
|
-5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)
|
|
Restriction on the operating temperature variation rate [°C(°F)]
|
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the
altitude increases by 220 m (722 ft.). |
|
Devices cannot start when the temperature is lower than 0°C (32°F).
|
|
|
Storage temperature [°C(°F)]
|
-40°C to +70°C (-40°F to +158°F)
|
|
Long-term operating relative humidity [RH]
|
5% RH to 95% RH (non-condensing)
|
|
Long-term operating altitude [m(ft.)]
|
0-5000 m (0-16404 ft.)
|
|
Storage altitude [m(ft.)]
|
0-5000 m (0-16404 ft.)
|
|
Power supply mode
|
AC built-in
|
|
Rated input voltage [V]
|
AC input: 100 V AC to 240 V AC, 50/60 Hz
|
|
High-voltage DC input: 240 V DC
|
|
|
Input voltage range [V]
|
AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz
|
|
High-voltage DC input: 190 V DC to 290 V DC
|
|
|
Maximum input current [A]
|
6 A
|
|
Memory
|
2 GB
|
|
Flash memory
|
Physical space: 1 GB
|
|
Console port
|
RJ45
|
|
Eth Management port
|
Not supported
|
|
USB
|
Supported
|
|
RTC
|
Not supported
|
|
RPS input
|
Not supported
|
|
Power supply surge protection [kV]
|
Differential mode: ±6 kV; common mode: ±6 kV
|
|
Ingress protection level (dustproof/waterproof)
|
IP30
|
|
Types of fans
|
None
|
|
Heat dissipation mode
|
Natural heat dissipation
|
|
Airflow direction
|
-
|
|
PoE
|
Supported
|
|
Certification
|
EMC certification
|
|
Safety certification
|
|
|
Manufacturing certification
|
