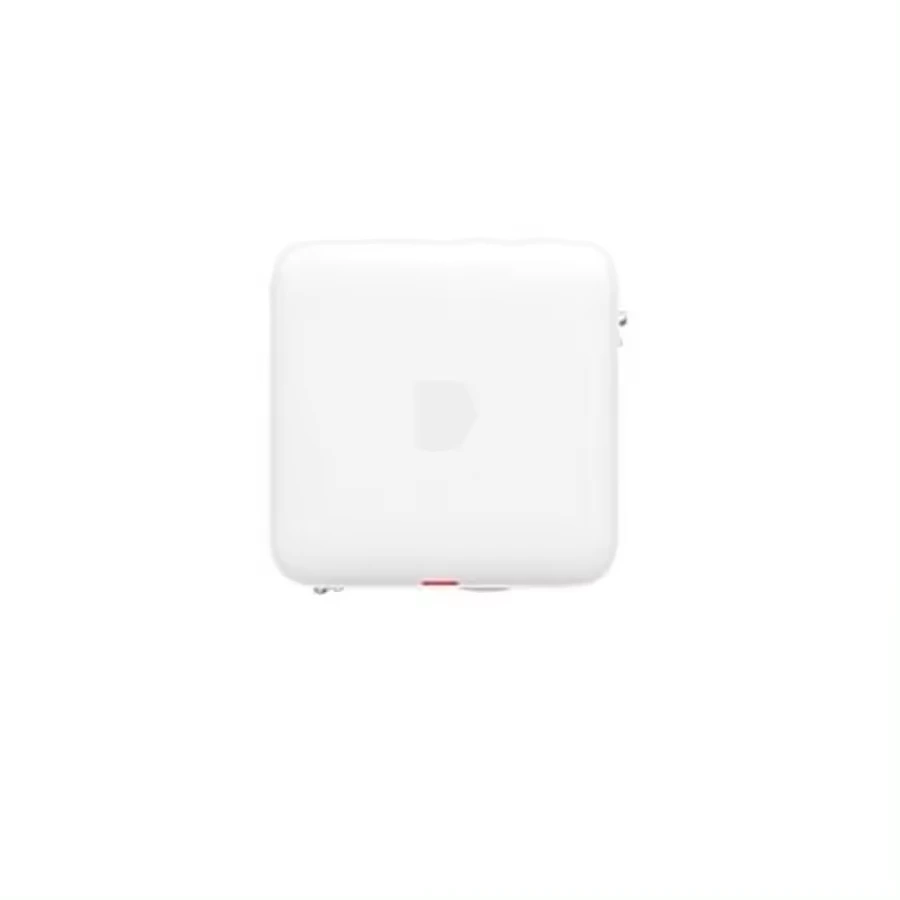

AirEngine 5761RS-11 02354DKU (11ax Outdoor,2+2 Dual Bands,Directional Antenna,Ble)
Basic information about the AirEngine 5761RS-11
| Item | Details |
|---|---|
| Description | AirEngine5761RS-11(11ax outdoor,2+2 dual bands,directional antenna,BLE) |
| Part Number | 02354DKU |
| Model | AirEngine 5761RS-11 |
| subseries | AirEngine 5700 |
| First supported version | V200R021C00 |
|
1 |
Ground screw |
2 |
GE/PoE_IN |
|
3 |
SFP |
4 |
Security slot
|
Ports on the AirEngine 5761RS-11
| Port | Connector Type | Description | Available Components |
|---|---|---|---|
| GE/PoE_IN | RJ45 | Ethernet electrical port that supports 10/100/1000M auto-sensing, connects to the wired Ethernet, and supports PoE input |
Network cable |
| SFP | SFP | Ethernet optical port, supporting 1000 Mbit/s and working with a matching optical transceiver |
Optical module |
Technical Specifications
| Item | Specification |
|---|---|
| Installation Type |
|
| Dimensions without packaging (H x W x D) [mm(in.)] | 69 mm x 200 mm x 200 mm (2.72 in. x 7.87 in. x 7.87 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 160 mm x 470 mm x 390 mm (6.30 in. x 18.50 in. x 15.35 in.) |
| Weight without packaging [kg(lb)] | 1.91 kg (4.21 lb) |
| Weight with packaging [kg(lb)] | 3.73 kg (8.22 lb) |
| Storage | NAND Flash 512 MB |
| Console port | BLE console |
| Maximum power consumption [W] | 17.7 W |
| Maximum heat dissipation [BTU/hour] | 60.4 BTU/hour |
| Power supply mode | PoE |
| Input voltage range [V] | PoE: 802.3at/af |
| Service port surge protection [kV] | 6 kA in common mode |
| Maximum number of physical ports on the entire device |
GE (RJ45) x 1, 10M/100M/1000M auto-sensing GE optical port (SFP) |
| Long-term operating temperature [°C(°F)] | –40°C to +65°C (–40°F to +149°F) (If the altitude is in the range of 1800 m to 5000 m, the temperature decreases by 1°C or 1.8°F every time the altitude increases by 300 m.) |
| Storage temperature [°C(°F)] | –40°C to +85°C (–40°F to +185°F) |
| Long-term operating relative humidity [RH] | 0% RH to 100% RH |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa - 106kPa ETSI 300 019-2-3 |
| Ground | Ground |
| Antenna port surge protection [KA] | N/A |
| Wind resistance | 67 m/s |
| BLE | BLE5.0 |
| Radio number | 2 |
| Operating frequency band |
|
| MIMO spatial streams |
Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2 |
| Wi-Fi standard |
2.4G: 802.11b/g/n/ax 5G: 802.11a/n/ac/ac Wave 2/ax |
| Radio interface | Built-in directional antennas |
| Antenna gain |
2.4G: 10 dBi 5G: 11 dBi BLE: 5 dBi |
| Beamwidth of the built-in directional antenna [degrees] |
2.4 GHz:
5 GHz:
|
| Maximum transmit power |
2.4G: 28 dBm (Max) 5G: 27 dBm (Max) NOTE:
This is the total MIMO radio power, which is the same as: 2.4G: 25 dBm/chain (Max) 5G: 24 dBm/chain (Max) BLE: < 10 dBm |
| Singal radio transmit power [dBm] |
2.4G: -10 dBm to 25 dBm/chain 5G: -10 dBm to 24 dBm/chain |
| MTBF [year] | 123 year |
| MTTR [hour] | 0.5 hour |
| Frequency stability [ppm] | +/-20 |
| 802.3bt power supply description | No function is limited. |
| 802.3at power supply description | No function is limited. |
| 802.3af power supply description |
Wi-Fi: 2.4 GHz (2x2) + 5 GHz (2x2). The maximum combined power is adjusted to 23 dBm (2.4 GHz) and 23 dBm (5 GHz). Wired network port: The SFP optical port and GE/PoE_IN work as combo ports, and only one of them is working at a time. If both of them are enabled, the optical port takes effect preferentially. |
