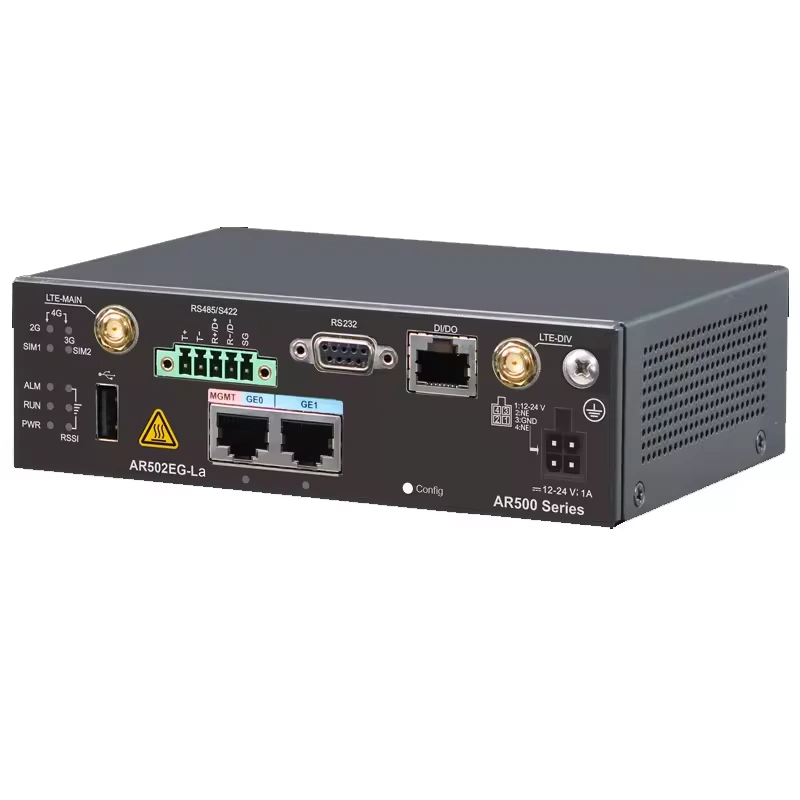

AR502G-L-D-H 50010259 Ar500 Series Dual SIM 4G LTE Router
The AR500 series industrial routers are launched to keep up with the rapid rise of Internet of Things (IoT). They stand out by integrating routing, switching, wireless, and security functions. In addition to offering conventional routing gateway functions, the AR500 series routers provide powerful application expansion capabilities, for example, functioning as an IoT communication gateway to aggregate data. This makes the series ideal for wide use in diverse industries.
|
Item |
Specification |
|---|---|
|
System parameters |
|
|
Processor |
HI6921 |
|
Memory |
256 MB |
|
Flash |
512 MB |
|
Dimensions and weight |
|
|
Dimensions (H x W x D) |
150 mm x 100 mm x 44 mm (5.9 in. x 3.9 in. x 1.7 in.) |
|
Weight |
0.85 kg (1.87 lb) |
|
Power consumption |
|
|
Maximum power consumption |
8 W |
|
Power specifications |
|
|
DC power input |
|
|
DI/DO interface parameter |
Voltage level standard: LVTTL |
|
Interface density |
|
|
Management interfaces |
1 |
|
RS232 interfaces |
1 |
|
USB 2.0 interfaces |
1 |
|
DI/DO interfaces |
1 |
|
RS485/RS422 Interfaces |
1 |
|
LTE antenna interfaces |
2 |
|
Service interfaces (standard configuration) |
WAN interface: one GE electrical interface |
|
Environment parameters |
|
|
Storage temperature |
-40°C to +85°C (-40°F to +185°F) |
|
Operating temperature |
NOTE:
In compliance with IEC60068-2-1-2007 and ETSI EN 300 019-2-3 V2.2.2:2003, the router can operate reliably for 24 hours in a temperature range of -35°C to +75°C (-31°F to +167°F) when it transmits LTE signals at the the highest transmit power. |
|
Operating relative humidity |
5% to 95%, noncondensing |
|
Operating altitude |
< 5000 m (16404 ft.) |
|
Part number |
50010259 |
