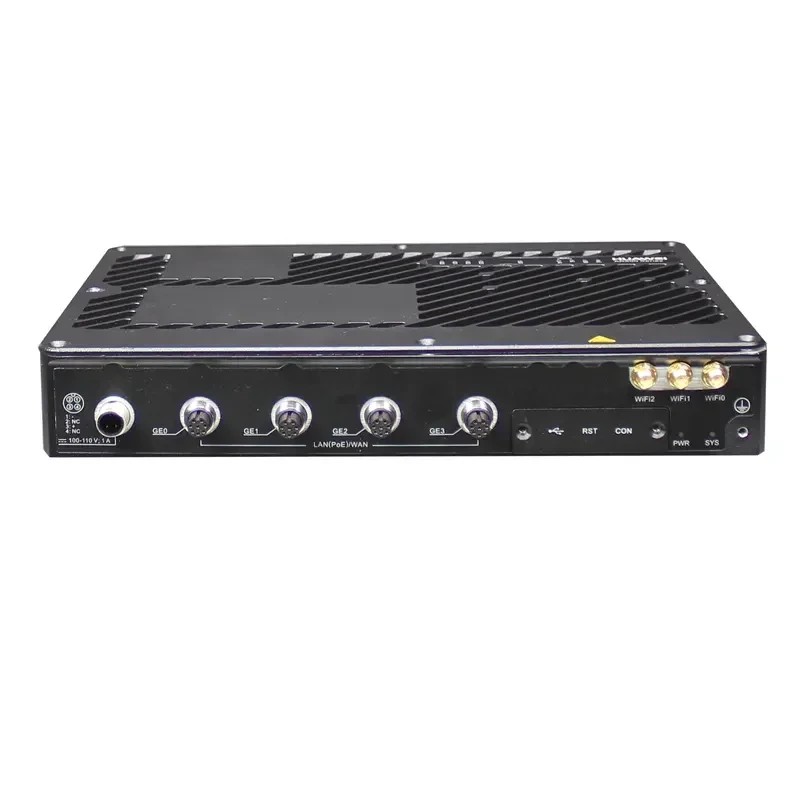

AR503EW 02350UGD Ar500 Series Iot Gateways Portable WiFi 4G and 5g Router
The AR500 series industrial routers are launched to keep up with the rapid rise of Internet of Things (IoT). They stand out by integrating routing, switching, wireless, and security functions. In addition to offering conventional routing gateway functions, the AR500 series routers provide powerful application expansion capabilities, for example, functioning as an IoT communication gateway to aggregate data. This makes the series ideal for wide use in diverse industries
|
Item |
Specification |
|---|---|
|
System parameters |
|
|
Processor |
Dual-core, 1.2 GHz |
|
Memory |
1 GB |
|
Flash |
512 MB |
|
Micro SD card |
Not supported |
|
Hard disk |
mSATA hard disk supported |
|
Dimensions and weight |
|
|
Dimensions (H x W x D) |
44.4 mm x 280 mm x 200 mm (1.75 in. x 11.02 in. x 7.87 in.) |
|
Weight |
2.6 kg (5.73 lb) |
|
Power specifications |
|
|
Rated input voltage (DC) |
100 V to 110 V |
|
Maximum input voltage (DC) |
110 V |
|
RPS power supply |
Not supported |
|
PoE power supply |
Supported on GE electrical interfaces GE0 to GE3, with a maximum of 30 W power on each interface |
|
Power consumption |
|
|
Maximum power consumption |
55 W |
|
Heat dissipation |
|
|
Fans |
None |
|
Airflow (facing the front panel) |
None |
|
Interface density |
|
|
Management interfaces |
1 (M12) |
|
Console interface |
1 (MicroUSB) |
|
USB 2.0 interfaces |
1 |
|
Service interfaces |
LAN interfaces: three Wi-Fi antenna interfaces and four GE electrical interfaces |
|
Extended slots |
Not supported |
|
Environment parameters |
|
|
Operating temperature |
-10°C to +70°C (14°F to 158°F) (PoE not enabled) -10°C to +65°C (14°F to 149°F) (PoE enabled) NOTE:
When the altitude is 1800 m-5000 m (5906ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
|
Storage temperature |
-40°C to +85°C (-40°F to +185°F) |
|
Operating relative humidity |
5% to 95%, noncondensing |
|
Operating altitude |
< 5000 m (16404.2 ft.) |
|
Part number |
02350UGD |
