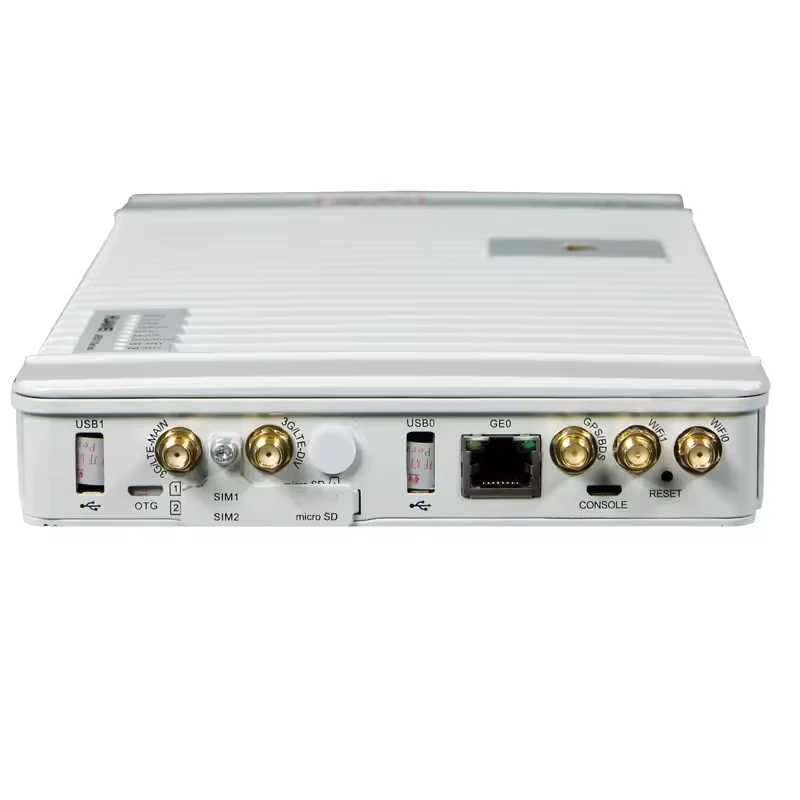

AR511EGW-LcAV2 Ar510 Series Industrial Wifi Router
The AR500 series industrial routers are launched to keep up with the rapid rise of Internet of Things (IoT). They stand out by integrating routing, switching, wireless, and security functions. In addition to offering conventional routing gateway functions, the AR500 series routers provide powerful application expansion capabilities, for example, functioning as an IoT communication gateway to aggregate data. This makes the series ideal for wide use in diverse industries
|
Item |
Specification |
|---|---|
|
System parameters |
|
|
Processor |
Quad-core, 1.2 GHz |
|
Memory |
2 GB |
|
Nand flash memory |
1 GB |
|
EMMC flash memory |
32 GB |
|
Micro SD card (default sd1) |
None |
|
Hard disk |
Not supported |
|
Dimensions and weight |
|
|
Dimensions (H x W x D) |
30.0 mm x 275.0 mm x 160.0 mm (1.18 in. x 10.83 in. x 6.30 in.) |
|
Weight |
1.4 kg (3.09 lb) |
|
Power specifications |
|
|
Rated input voltage (DC) |
12 V/24 V NOTE:
The router has two power terminals for DC power supply and supports power supply control using a power key. |
|
Maximum input voltage (DC) |
8 V DC to 36 V DC |
|
Maximum output current |
5 A |
|
RPS power supply |
Not supported |
|
PoE power supply |
Not supported |
|
Power consumption |
|
|
Maximum power consumption |
40 W |
|
Heat dissipation |
|
|
Fans |
None |
|
Airflow (facing the front panel) |
None |
|
Interface density |
|
|
Management interfaces |
None |
|
Console interfaces |
1 (Micro USB) |
|
USB 2.0 interfaces |
2 |
|
Service interfaces |
WAN interfaces: one GE electrical interface and two 3G/LTE antenna interfaces LAN interfaces: two Wi-Fi antenna interfaces Multimedia service interfaces: one GPS/BDS antenna interface, one audio interface, and two video interfaces |
|
Extended slots |
Not supported |
|
Environment parameters |
|
|
Operating temperature |
-10°C to +60°C (14°F to 140°F) NOTE:
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
|
Storage temperature |
-40°C to +85°C (-40°F to +185°F) |
|
Operating relative humidity |
5% to 95%, noncondensing |
|
Operating altitude |
< 5000 m (16404 ft.) |
|
Part number |
50010378 |
