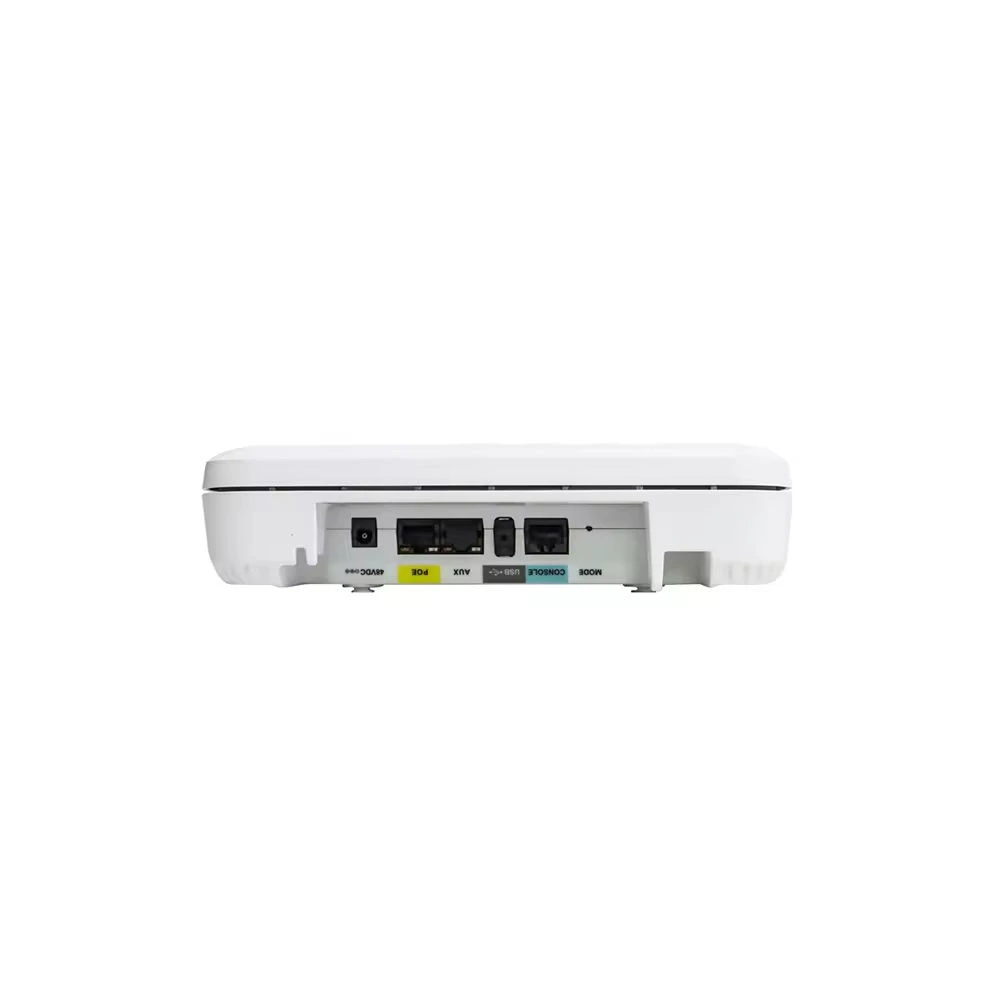

C9105AXI-A/B/E/D/C/S/T/R/K/Q/H/I/ cisco Catalyst 9105 Series Enterprise Wireless Network Access Points
The Cisco Catalyst 9105 Series Access Points, paired with the Cisco Digital Network Architecture (Cisco DNA), are enterprise-class products that will address both your current and future needs. They are the first step in updating your network to take better advantage of all of the features and benefits that Wi-Fi 6 provides.
Cisco User Defined Network, allows IT to give end users control of their very own wireless network partition on a shared network. End users can then remotely and securely deploy their devices on this network. Perfect for university dormitories or extended hospital stays, Cisco User Defined Network grants both device security and control, allowing each user to choose who can connect to their network.
|
Item |
Specification |
|||||||||
|
Part numbers |
Cisco Catalyst 9105AX Access Point: Indoor environments, with internal antennas ● C9105AXI-x: Cisco Catalyst 9105 Series
Cisco Catalyst 9105AX Access Point: Wall Plate, with internal antennas ● C9105AXW-x: Cisco Catalyst 9105 Series
Cisco Catalyst 9105AX Teleworker Access Point: Indoor environments, with internal antennas ● C9105AXIT-x: Cisco Catalyst 9105 Series
(Shipped along with Infrastructure kit - Power Injector and Ethernet Cables)
Cisco Catalyst 9105AX Teleworker Access Point: Wall Plate, with internal antennas ● C9105AXWT-x: Cisco Catalyst 9105 Series
(Shipped along with Wall Plate kit - Cradle and Ethernet Cables)
Cisco Catalyst 9105AX Access Point: Indoor environments, with internal antennas, with embedded wireless controller ● C9105AXI-EWC-x: Cisco Catalyst 9105 Series
Regulatory domains: (x = regulatory domain) Customers are responsible for verifying approval for use in their individual countries. To verify approval and to identify the regulatory domain that corresponds to a particular country, visit Not all regulatory domains have been approved. As they are approved, the part numbers will be available on the Global Price List and/or regional price lists. Cisco Wireless LAN Services ● AS-WLAN-CNSLT: Cisco Wireless LAN Network Planning and Design Service
● AS-WLAN-CNSLT: Cisco Wireless LAN 802.11n Migration Service
● AS-WLAN-CNSLT: Cisco Wireless LAN Performance and Security Assessment Service
|
|||||||||
|
Accessories |
● Mounting bracket: AIR-AP-BRACKET-W4= (available as spare)
● Spacer kit: C9105AXW-KIT (sold separately)
|
|||||||||
|
Software |
Catalyst 9105 AXI ● Cisco Unified Wireless Network Software Release 8.10.MR3 or later
● Cisco IOS XE Software Release 17.3.1, or later
Catalyst 9105AXW ● Cisco Unified Wireless Network Software Release 8.10MR3 or later
● Cisco IOS XE Software Release 17.3.1 or later
|
|||||||||
|
Supported wireless LAN controllers |
● Cisco Catalyst 9800 Series Wireless Controllers
● Cisco 3504, 5520, and 8540 Wireless Controllers and Cisco Virtual Wireless Controller
|
|||||||||
|
802.11n version 2.0 (and related) capabilities |
● 2x2 MIMO with two spatial streams
● Maximal Ratio Combining (MRC)
● 802.11n and 802.11a/g
● 20- and 40-MHz channels
● PHY data rates up to 444.4 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz)
● Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive)
● 802.11 Dynamic Frequency Selection (DFS)
● Cyclic Shift Diversity (CSD) support
|
|||||||||
|
802.11ac |
● 2x2 downlink MU-MIMO with two spatial streams
● MRC
● 802.11ac beamforming
● 20-, 40-, 80- MHz channels
● PHY data rates up to 866.7 Mbps (80 MHz with 5GHz)
● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
● 802.11 DFS
● CSD support
● WPA3 support
|
|||||||||
