CE6820H-48S6CQ 02354FTG 48*10G SFP+,6*100GE QSFP28,2*AC power modules CE6820H-48S6CQ industrial poe switch 1

CE6820H-48S6CQ 02354FTG 48*10G SFP+,6*100GE QSFP28,2*AC power modules CE6820H-48S6CQ industrial poe switch 2

CE6820H-48S6CQ 02354FTG 4810G SFP+,6100GE QSFP28,2*AC power modules CE6820H-48S6CQ industrial poe switch

Samples:

$1000.0/piece | Min. order : 1 piece

Shipping:

Support Sea freight

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-10(pieces):3(days),11-100(pieces):7(days),101-500(pieces):15(days),>500(pieces):To be negotiated(days)

Brand Name:

Model Number:

CE6820H-48S6CQ

Inquiry

Write a Review

Weight

6 kg

Use

other

Place of Origin

Guangdong, China

Type

Enterprise Switch

Products Description

Offering high performance, high port density, and low latency, CloudEngine 6800 series switches enable enterprises and carriers alike to build cloud-oriented data center networks. The series features an advanced hardware design combined with either 10 GE, 25 GE, or 50 GE access ports, and 40 GE, 100 GE, or 200 GE uplink ports. Advanced data center features, high performance stacking technologies, and flexible airflow capabilities complete the series.

Details Images

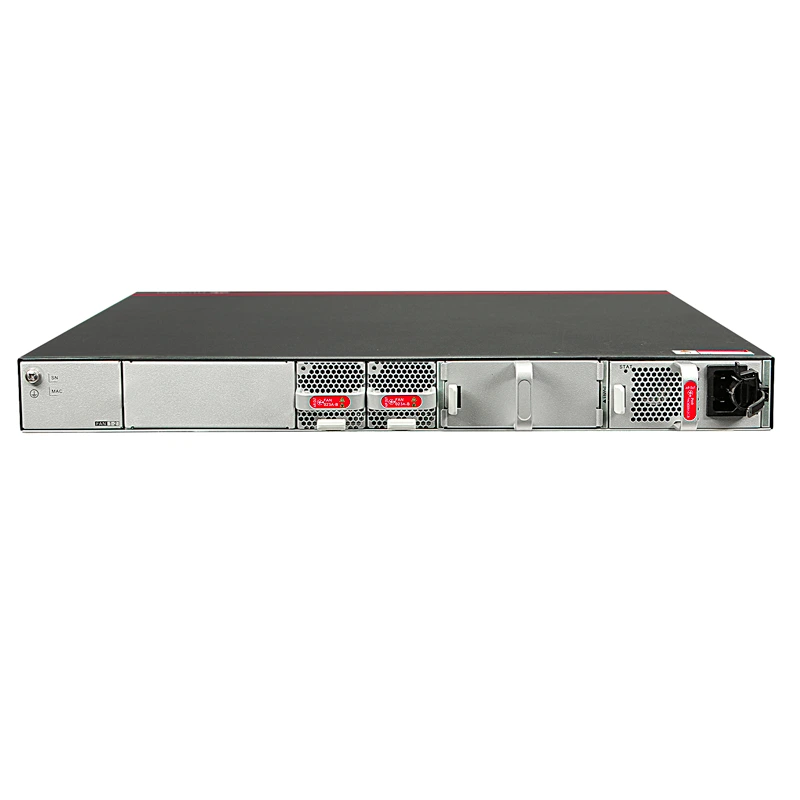

CE6820H-48S6CQ 02354FTG 48*10G SFP+,6*100GE QSFP28,2*AC power modules CE6820H-48S6CQ industrial poe switch 3

CE6820H-48S6CQ 02354FTG 48*10G SFP+,6*100GE QSFP28,2*AC power modules CE6820H-48S6CQ industrial poe switch 4

Specification

Other part numbers	02354FTG (CE6820H-48S6CQ switch(4810G SFP+,6100G QSFP28,without fan and power modules)) 02354FTK (CE6820H-48S6CQ switch(4810G SFP+,6100G QSFP28, 2AC power modules,4fan modules,port-side intake))
Installation Type	Cabinet Installation
Depth [mm]	420.0 mm
Wide [mm]	442.0 mm
Height [mm]	43.6 mm
Weight with packaging [kg(lb)]	9 kg (19.84 lb) (excluding optical modules, power modules, and fan modules)
Weight without packaging [kg(lb)]	5.6 kg (12.3 lb) (excluding optical modules, power modules, and fan modules)
Maximum power consumption [W]	282 W
Typical power consumption [W]	- 162 W (100% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules) - 196 W (100% throughput, short-distance optical modules on all ports, dual power modules)
Static power consumption [W]	102 W
Heat dissipation mode	Air cooling
Maximum heat dissipation [BTU/hour]	962 BTU/hour
Typical heat dissipation [BTU/hour]	- 553 BTU/hour (100% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules) - 669 BTU/hour (100% throughput, short-distance optical modules on all ports, dual power modules)
Static heat dissipation [BTU/hour]	348 BTU/hour
Power supply mode	AC,DC,HVDC
Rated input voltage [V]	- 600 W AC&240 V DC power module: 100 V AC to 240 V AC, 50/60 Hz; 240 V DC - 1000 W DC power module: –48 V DC to –60 V DC - 1200 W high-voltage DC power module: 240 V DC to 380 V DC
Input voltage range [V]	- 600 W AC&240 V DC power module: 90 V AC to 290 V AC, 45 Hz to 65 Hz; 190 V DC to 290 V DC - 1000 W DC power module: –38.4 V DC to –72 V DC - 1200 W high-voltage DC power module: 190 V DC to 400 V DC
Maximum input current [A]	- 600 W AC&240 V DC power module: 8 A (100 V AC to 240 V AC); 4 A (240 V DC) - 1000 W DC power module: 30 A (–48 V DC to –60 V DC) - 1200 W high-voltage DC power module: 8 A
Rated output power [W]	- 600 W AC&240 V DC power module: 600 W - 1000 W DC power module: 1000 W - 1200 W high-voltage DC power module: 1200 W
Memory	DRAM: 4 GB
NOR Flash	64 MB
NAND Flash	2 GB
USB	It can be used for log backup and USB-based deployment. This function is reserved.
Console port	RJ45
Downlink Service interface	48*10GE SFP+ These 10GE ports can be configured to work at 1 Gbit/s.
Uplink Service interface	6*100GE QSFP28 Note: 1. Each 100GE QSFP28 port can be configured to work at 40 Gbit/s. 2. A 100GE QSFP28 port cannot be split into 4 x 25GE or 4 x 10GE ports. 3. 100GE 1 m copper cables and 40GE 1/3/5 m copper cables are supported. Auto-negotiation of copper cables is not supported. 100GE and 40GE copper cables can only be used on M-LAG peer-link ports.
Service port supporting the stack function	Reserved function. This function is not enabled.
RTC	Supported
Switching capacity [bps,bit/s]	2160
Redundant fans	The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Redundant power supply	1+1 backup
Number of power modules	2
Power supply surge protection	- AC: 6 kV in common mode and 6 kV in differential mode - DC: 4 kV in common mode and 2 kV in differential mode - HVDC: 4 kV in common mode and 2 kV in differential mode
Types of fans	Pluggable
Number of fans	4
Airflow direction	Front-to-back or back-to-front airflow, depending on the selected fan modules and power modules
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Long-term operating temperature [°C(°F)]	0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) Note: When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Long-term operating relative humidity [RH]	5% RH to 95% RH, noncondensing
Storage altitude [m(ft.)]	≤ 5000 m (16404 ft.)
Long-term operating altitude [m(ft.)]	≤ 5000 m (16404 ft.)
MTBF [year]	45.48 years
MTTR [hour]	1.52 hours
Noise at high temperature (40°C, sound pressure)	- Front-to-back airflow: < 71 dB(A) - Back-to-front airflow: < 72 dB(A)
Noise at normal temperature (27°C, sound pressure)	- Front-to-back airflow: < 55 dB(A) - Back-to-front airflow: < 56 dB(A)
Availability	0.99999618
