Cghf Service Board 16-port Xg-pon And Gpon Combo Olt Interface Board For Ma5800 Series
5.0
Samples:
$1000/piece | Min. order : 1 piece
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-10(pieces):3(days),11-100(pieces):7(days),101-500(pieces):15(days),>500(pieces):To be negotiated(days)
Customization:
Customized logo (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets),Graphic customization (Min. Order: 10000 sets)
Brand Name:
/
Model Number:
CGHF
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Dimensions (W x D x H)
23.30 mm * 257.90 mm * 399.20 mm
Rate mode
Asymmetric rate
Forwarding capability
200 Gbit/s
Extinction Ratio
8.2 dB
Optical Connector Type
SC
Encapsulation Type
SFP+
GPON Port
16 XG-PON & GPON ports
Operating Temperature
-40°C to +65°C
Network
None
Model
CGHF
Optical fiber type
Single-mode
Warranty Time
1 years
Use
other
Place of Origin
Guangdong, China
Type
Service Board
Product Description
CGHF Service Board 16-port XG-PON and GPON Combo OLT interface board for MA5800 Series
CGHF Service Board is a 16-port XG-PON and GPON Combo OLT interface board for MA5800 Series OLT Equipment . It works together with the optical network unit (ONU) to provide XG-PON and GPON access services.

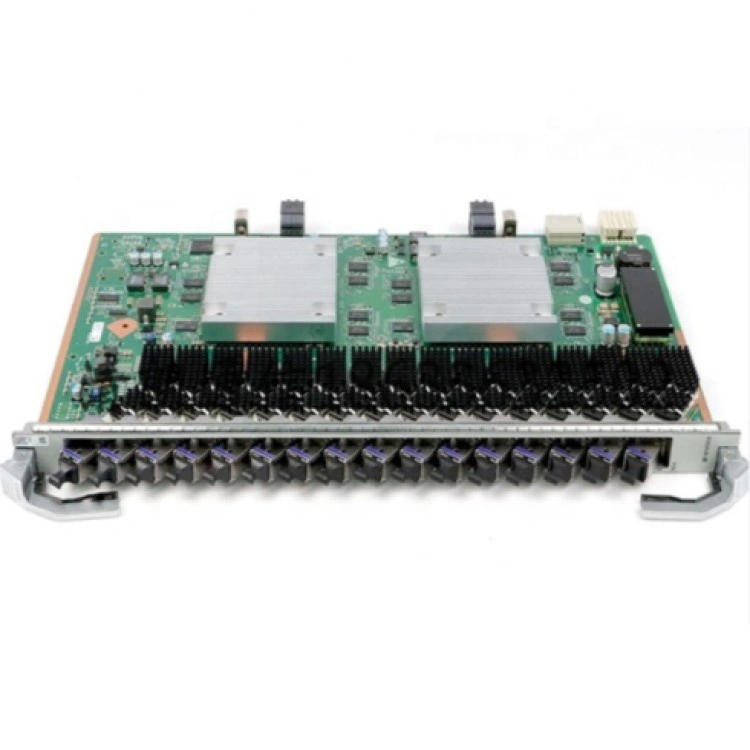

Appearance
Specifications
| Brand | hw |
| Model | CGHF |
| GPON Port | 16 XG-PON & GPON ports |
| Type | One-fiber bi-directional optical module |
| Operating Wavelength | GPON channel: |
| Tx: 1490 nm | |
| Rx: 1310 nm | |
| XG-PON channel: | |
| Tx: 1577 nm | |
| Rx: 1270 nm | |
| Encapsulation Type | SFP+ |
| Port Rate | GPON channel: |
| Tx: 2.488 Gbit/s | |
| Rx: 1.244 Gbit/s | |
| XG-PON channel: | |
| Tx: 9.953 Gbit/s | |
| Rx: 2.488 Gbit/s | |
| Minimum Output Optical Power | GPON channel: 3 dBm |
| XG-PON channel: 4 dBm | |
| Maximum Output Optical Power | GPON channel: 7 dBm |
| XG-PON channel: 8 dBm | |
| Maximum Receiver Sensitivity | GPON channel: -32 dBm |
| XG-PON channel: -29.5 dBm | |
| Optical Connector Type | SC |
| Optical Fiber Type | Single-mode |
| Overload Optical Power | GPON channel: -12 dBm |
| XG-PON channel: -9 dBm | |
| Extinction Ratio | 8.2 dB |
| Forwarding capability | 200 Gbit/s |
| Rate mode | Asymmetric rate |
| T-CONTs per PON port | GPON: 1024 |
| XG-PON: 2048 | |
| Service flows per PON board | 16352 |
| Maximum frame size | 2052 bytes |
| 9216 bytes (jumbo frame enabled) | |
| Maximum number of MAC addresses | 131072 |
| Maximum distance difference between | 40 km |
| two ONUs under the same PON port | |
| Dimensions (W x D x H) | 23.30 mm * 257.90 mm * 399.20 mm |
| Power Consumption | Static: 48 W |
| Maximum: 106 W | |
| Operating temperature | -40°C to +65°C |
Why Choose Us
A)Stable and Wide Supply Chain System
we have established a perfect supply chain system to provide a wide range of products with reliable quality and reasonable price.
B)Competitive Price
We ensure the most competitive price. Warm reminders here, telecommunications equipment configuration is quite different, the
price shown on the website is only for reference. After configuration and quantity been confirmed, we will give the final most
competitive discounted price.
C) Safe and Easy Payment Solutions
We support a variety of payment methods, such as T/T, credit card, et
D)Fast Delivery and Shipping
Fast, professional and reliable delivery.
E)Complete and powerful pre-sales and after-sales service system
To provide customers with professional pre-sales service, as well as after-sales technical services
F)More Than 20 years Industry Experience
we have been engaged in this industry more than 20 years, we have rich industry experience.
FAQ
Q: How about your main products?
A:Our product lines include Switches.Routers,OLTs,SDHs. Network Modules, Interface Cards, Security Firewalls, Wireless AP etc.
Q: What brand of products do you offer?
A:We are devoted to offering Huawei, Cisco, ZTE, Ruijie and other related network equipment brands
Q:Can we get free samples?
A: Sorry, it is not available, but you can pay for one.
Q: What trade terms do you use ?
A: We offer EXW.FOB,CIF and CNF or as your request.
Q: How about your delivery time?
A:Generally, it will take 1 to 10 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q: Do you test all your goods?
A:Yes we have professional engineer to test all devices before shipping.
