S5735-S48T4XE-XA-V2 98012436 48*10/100/1000BASE-T ports, 4*10GE SFP+ ports, 2*12GE stack ports network switch 1

S5735-S48T4XE-XA-V2 98012436 48*10/100/1000BASE-T ports, 4*10GE SFP+ ports, 2*12GE stack ports network switch 2

S5735-S48T4XE-XA-V2 98012436 48*10/100/1000BASE-T ports, 4*10GE SFP+ ports, 2*12GE stack ports network switch 3

S5735-S48T4XE-XA-V2 98012436 4810/100/1000BASE-T ports, 410GE SFP+ ports, 2*12GE stack ports network switch

Samples:

$483/piece | Min. order : 1 piece

Shipping:

Support Sea freight

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-10(pieces):3(days),11-50(pieces):7(days),51-100(pieces):15(days),>100(pieces):To be negotiated(days)

Customization:

Customized logo (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets),Graphic customization (Min. Order: 10000 sets)

Brand Name:

Model Number:

S5735-S48T4XE-XA-V2

Inquiry

Write a Review

Weight

8 kg

Use

other

Place of Origin

Guangdong, China

Type

Enterprise Switch

Products Description

Reliability protection

Supports 3 power supplies and N+1 power backup. Supports mixed AC and DC power modules

Powerful power supply capacity

Single port supports power supply up to 90W poe+ +, which can provide super power supply for PD devices and

realize zero interruption of PoE power supply when the device restarts

Network intelligent operation and maintenance

Support Telemetry technology, collect device data in real time, cooperate with the network analyzer in the park to find network problems affecting user experience, and accurately ensure user experience

Item	Details
Part Number	98012436
Model	S5735-S48T4XE-XA-V2
Description	S5735-S48T4XE-XA-V2 (4810/100/1000BASE-T ports, 410GE SFP+ ports, 2*12GE stack ports, dual built-in AC power)
First supported version	V600R022C01

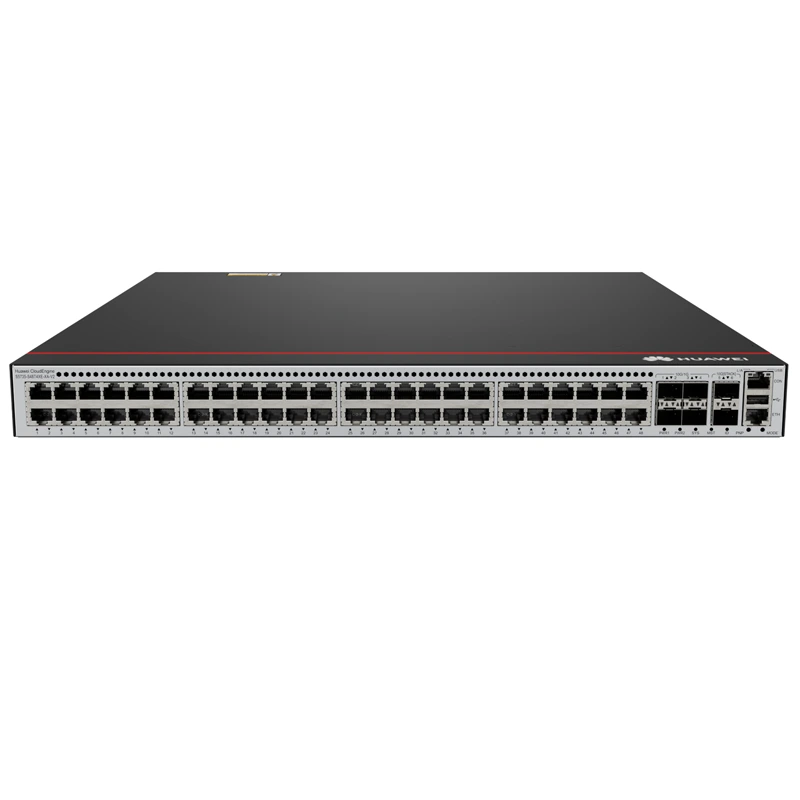

Details Images

S5735-S48T4XE-XA-V2 98012436 48*10/100/1000BASE-T ports, 4*10GE SFP+ ports, 2*12GE stack ports network switch 4

Specification


Chassis material	Metal
Height [mm]	43.6 mm
Depth [mm]	420.0 mm
Wide [mm]	442.0 mm
Chassis height [U]	1
Weight with packaging [kg(lb)]	6.82 kg (15.04 lb)
Weight without packaging [kg(lb)]	4.39 kg (9.68 lb)
Maximum power consumption [W]	55.12 W
Typical power consumption [W]	39.10
Heat dissipation mode	Air cooling for heat dissipation, intelligent fan speed adjustment
Maximum heat dissipation [BTU/hour]	188.07
Typical heat dissipation [BTU/hour]	133.41
Power supply mode	AC built-in
Input voltage range [V]	- AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz - High-voltage DC input: 190 V DC to 290 V DC
Rated input voltage [V]	- AC input: 100 V AC to 240 V AC, 50/60 Hz - High-voltage DC input: 240 V DC
Maximum input current [A]	4.0 A
Number of power slots	0
Number of card slots	0
Memory	2 GB
Flash memory	Physical space: 1 GB
Redundant power supply	Dual built-in power modules in 1+1 backup mode
Types of fans	Built-in
Noise at normal temperature (acoustic power) [dB(A)]	41.9
Noise at normal temperature (acoustic pressure) [dB(A)]	29.9
Airflow direction	Air intake from left and front, air exhaustion from right
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Devices cannot start when the temperature is lower than 0°C (32°F). The operating temperature ranges from –5°C (23°F) to +45°C (113°F) when optical modules with transmission distances greater than or equal to 60 km are used.
Long-term operating relative humidity [RH]	5% RH to 95% RH (non-condensing)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Long-term operating altitude [m(ft.)]	0–5000 m (0–16404 ft.)
MTBF [year]	43.19
MTTR [hour]	2
Availability	> 0.99999
Maximum number of physical ports on the entire device	54
Maximum number of 100GE ports	0
Maximum number of 40GE ports	0
Maximum number of 25GE ports	0
Maximum number of 10GE ports	4
Maximum number of GE ports	52
Maximum number of FE ports	48
10GE optical interface	4
1000M electrical interface	48
USB	Supported
Console port	RJ45
Eth Management port	RJ45
Power supply surge protection	Differential mode: ±6 kV; common mode: ±6 kV
RPS input	Not supported
PoE	Not supported
