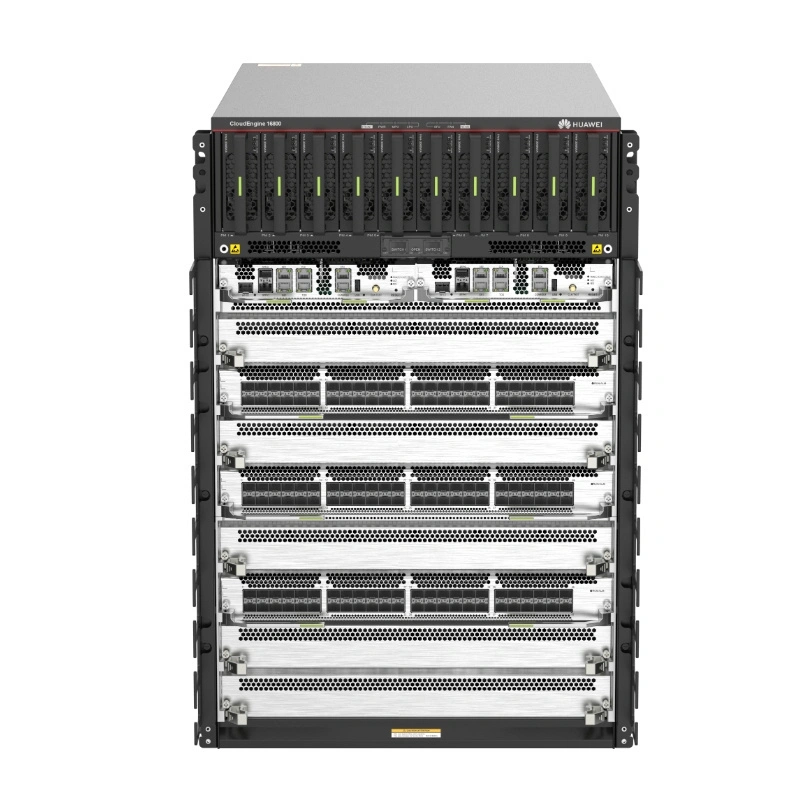

Core switch CE16808 Enterprise switch with 384×100GE ports
● Model No.: CE16808
● Port details: 384×100GE / 192×400GE / 96×800GE
● Application scenarios: Core of medium and large-scale data centers, provincial-level financial centers, and core of high-density intelligent computing clusters
● Feature: High-density 400GE/800GE, intelligent and lossless operation and maintenance, AI-powered operation and maintenance, and simplified evolution.
● Warranty: 1years
● MOQ: 1 pieces
Application scenarios
Medium to Large Data Center Cores: Downlinked to 100G/400G TORs, supporting 10,000–30,000 servers to meet cloud, big data, and distributed storage needs.
Provincial Financial Cores: Cores for provincial branches of financial institutions and city commercial banks' data centers, carrying high-reliability core transactions, online banking, risk control, and other core services.
High-Density Intelligent Computing Cluster Cores: Cores for medium to large AI training clusters and intelligent computing centers, providing 400G/800G high-speed interconnects.
Large Campus/Government Cores: 10 Gigabit/100 Gigabit cores for large enterprises, universities, and government parks, carrying uplinks for office work, video conferencing, IoT, and wireless AC.
Key selling points
1. Backplane-less Clos Ultimate Architecture
2. AI-Driven Intelligent Lossless (iLossless)
3. High-Density 400GE/800GE Evolution
4. Full-Scenario Virtualization and SDN
5. AI-Powered Intelligent O&M
6. High Reliability and Green Energy Saving
Detailed description
| parameter item | Specification Description |
| Product Series | CloudEngine 16800 series |
| Device Type | Data center core switch/cloud data center core switch |
| chassis height | 15.8U~17U (approximately 703 mm) |
| Physical dimensions (W x D x H) | 442 mm x 874 mm x 703 mm (chassis body) |
| weight | Empty configuration: 129.8 kg; Full configuration: 281.9~377 kg (depending on board configuration) |
| Business Slot Unit (LPU) | 8 slots (1-8) |
| Switching Network Slot (SFU) | 9 (supports N+M redundancy, different SFU models have different available slots) |
| Main control slot (MPU) | 2 (1+1 redundancy) |
| Power slot position | 10 (supporting N+N/N+1 backups) |
| Fan module | 3 pluggable fan modules |
| exchange capacity | 1428 Tbps/4284 Tbps to 1807 Tbps/5422 Tbps |
| Packet forwarding rate | 460,800 Mpps |
| Maximum 100GE port | Depending on the selected line card, supports high-density 100GE/400GE cards |
| MTBF | 34.55 years |
| power supply voltage | AC：176V～290V； DC：-40V～-72V； HVDC：188V～400V |
| Maximum power consumption of the whole machine | ≤ 22000 W (fully equipped with 10 2200W power supplies) |
| Working environment temperature | 0 ° C to 40 ° C (0-1800m altitude) |
| Air duct direction | Standard front and rear air ducts (front air, rear air outlet) |
