Cr2b0bkp0813 02350rgf Ne20e-s8a Integrated Ac Chassis Components
5.0
Samples:
$1000/piece | Min. order : 1 piece
Shipping:
FEDEX, DHL, ARAMEX, EMS, UPS, TNT and Air shipping & Ocean transportation
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-10(pieces):3(days),11-100(pieces):7(days),101-500(pieces):15(days),>500(pieces):To be negotiated(days)
Customization:
Customized logo (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets),Graphic customization (Min. Order: 10000 sets)
Brand Name:
-
Model Number:
CR2B0BKP0813
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Short-term operating temperature
-5°C(23°F) to 55°C(131°F)
Number of service board slots
8
Number of slots
15
Dimensions without packaging (H x W x D)
264 mm x 220 mm x 442 mm
Long-term operating temperature
0°C(33.8°F) to 45°C(113°F)
Chassis height
6 U
Weight without packaging
15.2 kg (33.51 lb)(base configuration)
Part Number
02350RGF
Use
other
Place of Origin
Guangdong, China
Type
Chassis
Product Description
NE20E-S8A
Overview
Table 1 Basic information about the NE20E-S8A
| Description | Part Number | Model | First Supported Version | Remarks |
|---|---|---|---|---|
| NE20E-S8A Integrated AC Chassis Components | 02350RGF | CR2B0BKP0813 | V800R005C01 | - |

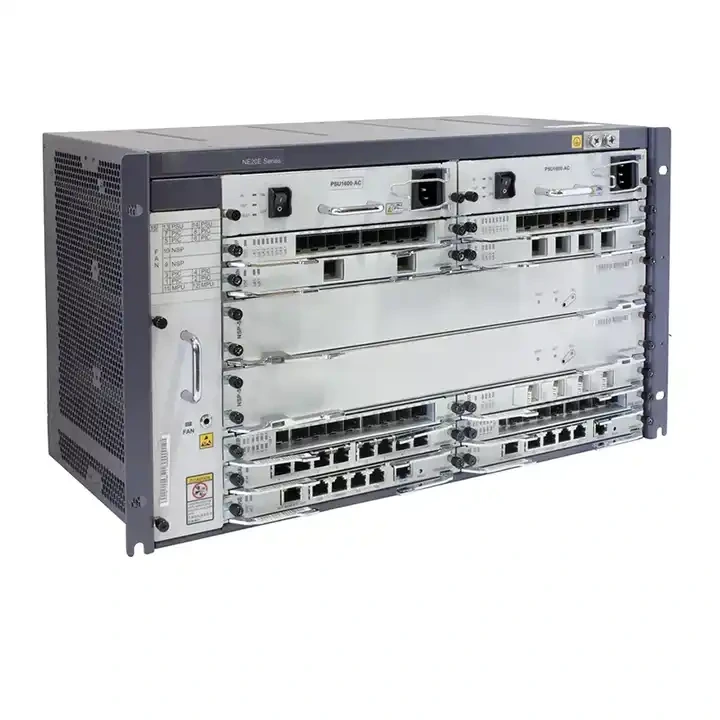

Figure 1 Appearance of the NE20E-S8A(AC)
Table 2 Technical specifications of the CR2B0BKP0813
| Item | Specification |
|---|---|
| Cabinet installation standards | ETSI 21-inch; IEC 19-inch |
| Dimensions without packaging (H x W x D) [mm(in.)] | 264 mm x 220 mm x 442 mm (10.39 in. x 8.66 in. x 17.40 in.) |
| Chassis height [U] | 6 U |
| Weight without packaging (base configuration) [kg(lb)] | 15.2 kg (33.51 lb) |
| Weight without packaging (full configuration) [kg(lb)] |
[NSP-240] 26.5 kg (58.4 lb) [NSP-480] 29.1 kg (64.2 lb) [NSP-1T] 31.4 kg (69.2 lb) |
| Typical power consumption [W] |
667 W(NSP-240) 1063.2 W(NSP-480) 970 W(NSP-1T) |
| Typical heat dissipation [BTU/hour] |
2164 BTU/hour(NSP-240) 3449.5 BTU/hour(NSP-480) 3147 BTU/hour(NSP-1T) |
| MTBF [year] | 138.61 year |
| MTTR [hour] | 0.5 hour |
| Availability | 0.999999588 |
| Flash memory |
MPU:16 MB NSP-50: 64 MB NSP-120:64 MB NSP-240:64 MB NSP-A:64 MB NSP-B:64 MB NSP-C:128 MB NSP-D:128 MB |
| Power supply mode | AC |
| Rated input voltage [V] |
PSU1600 : 200 V to 240 V/100 V to 127 V dual live wires PSU2400 : 200 V to 240 V/100 V to 127 V dual live wires/240 VHVDC |
| Input voltage range [V] |
PSU1600 : 180 V to 264 V PSU2400 : 90 Vac to 290 Vac//190 Vdc to 400 Vdc |
| Maximum input current [A] |
PSU1600 : 10 A PSU2400 : 16 A |
| Maximum input cable diameter [mm²] | 16mm^2. 6mm^2 (1-10 meters) recommended. 10mm^2 (10-20 meters) recommended. 16mm^2 (20-35 meters) recommended |
| Front-end circuit breaker/fuse [A] |
PSU1600: ≥10 A PSU2400: ≥16 A |
| Heat dissipation | Air cooling |
| Airflow direction | left-to-right direction |
| Noise at normal temperature (acoustic power) [dB(A)] | < 72 dB (meeting the ETSI 72 dBA standard) |
| Number of slots | 15 |
| Number of service board slots | 8 |
| Switching capacity |
100 Gbps(NSP-50) 240 Gbps(NSP-120) 480 Gbps(NSP-A/B) 480 Gbps(NSP-240) 960 Gbps(NSP-C) 2 Tbps(NSP-D) |
| Redundant MPUs | 1:1 |
| Redundant network processing units | 1:1 |
| Redundant power supply | 1+1 |
| Redundant fans | If a single fan fails, the system can still work for a short period of time at an ambient temperature of 40°C. |
| Long-term operating temperature [°C(°F)] | 0°C(33.8°F) to 45°C(113°F) |
| Short-term operating temperature [°C(°F)] | -5°C(23°F) to 55°C(131°F) |
| Enhanced operating temperature [°C(°F)] | - |
| Restriction on the operating temperature variation rate [°C(°F)] | ≤ 30°C/hour(54°F/hour) |
| Storage temperature [°C(°F)] | -40°C(-40°F) to 70°C(158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 85% RH, non-condensing |
| Short-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Storage relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | <= 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the NEU100 must decrease by 1°C [1.8°F] for every 220 m [721.78 ft.].) |
| Storage altitude [m(ft.)] | < 5000 m(< 16404.2 ft.) |
