Cr5b0bkp0374 02350fml Ne40e-x3a Integrated Ac Chassis Components,Including Dual Ac Power

Samples:

$2500/piece | Min. order : 1 piece

Shipping:

Support Sea freight

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-10(pieces):3(days),11-100(pieces):7(days),101-500(pieces):15(days),>500(pieces):To be negotiated(days)

Customization:

Customized logo (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets),Graphic customization (Min. Order: 10000 sets)

Model Number:

CR5B0BKP0374

Inquiry

Write a Review

Dimensions without packaging (H x W x D)

264 mm x 442 mm x 710 mm

Storage temperature

-40°C to 70°C (-40°F to 158°F)

Long-term operating temperature

0°C to 45°C (32°F to 113°F)

Rated input voltage

200 V to 240 V

Chassis height

6 U

Part Number

02350FML

Use

other

Place of Origin

Guangdong, China

Type

Chassis

Product Description

NE40E-X3A

Overview

Table 1 Basic information about the NE40E-X3A

Description	Part Number	Model	First Supported Version	Remarks
NE40E-X3A Integrated AC Chassis Components, Including Dual AC Power	02350FML	CR5B0BKP0374	V800R007C00	-

Appearance

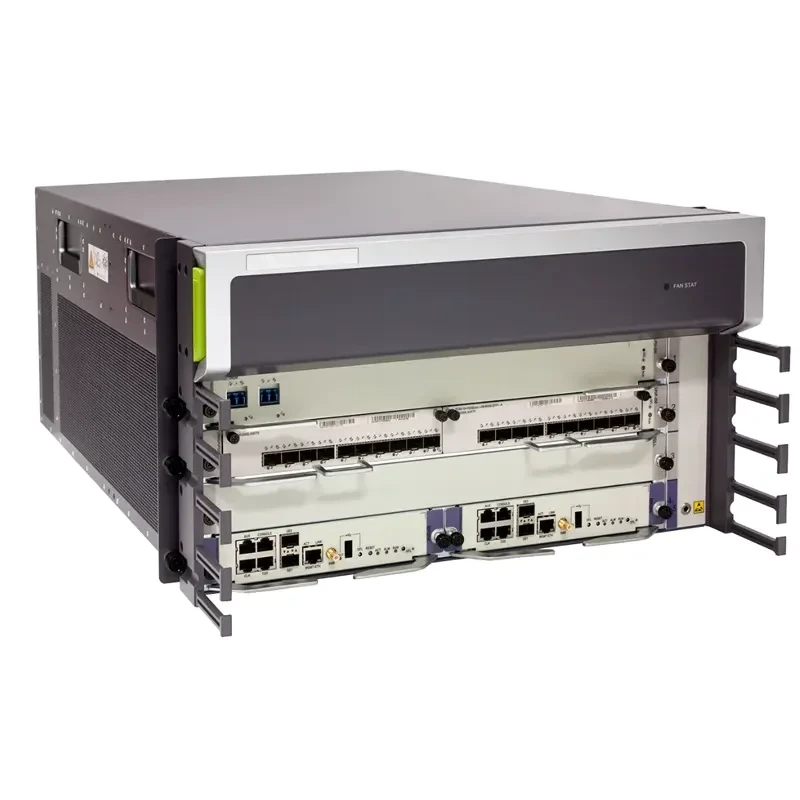

Figure 1 Appearance of the NE40E-X3A

CR5B0BKP0374 02350FML NE40E-X3A Integrated AC Chassis Components, Including Dual AC Power for h w

Table 2 Technical specifications

Item	Specification
Cabinet installation standards	Can be installed in a standard 19" 800 mm-deep cabinet. A 2.2 m-high N68E cabinet is used by default.
Dimensions without packaging (H x W x D) [mm(in.)]	264 mm x 442 mm x 710 mm (10.39 in. x 17.40 in. x 27.95 in.) (Chassis main body) 264 mm x 442 mm x 770 mm (10.39 in. x 17.40 in. x 30.31 in.) (Dimensions of the chassis body together with cable trays and front and back attachments)
Chassis height [U]	6 U
Weight without packaging (base configuration) [kg(lb)]	37 kg (81.59 lb)
Weight without packaging (full configuration) [kg(lb)]	74.7 kg (164.71 lb)
Typical power consumption [W]	1120 W (fully configured with LPUF-200s)
Typical heat dissipation [BTU/hour]	3633.8 BTU/hour (fully configured with LPUF-200s)
MTBF [year]	22.85 year
MTTR [hour]	0.5 hour
Availability	0.999997502
Power supply mode	AC built-in
Maximum number of power chassis inputs	(1 channel/PEM)*2 PEM = 2 channels
Rated input voltage [V]	200 V to 240 V
Input voltage range [V]	180 V to 264 V
Maximum input current [A]	16 A/single-module
Maximum input cable diameter [mm²]	Standard C19 cable
Front-end circuit breaker/fuse [A]	16 A
Noise at normal temperature (acoustic power) [dB(A)]	NEBS-compliance (< 78 dBA @ 27°C (80.6°F))
Number of slots	5
Number of service board slots	3
Switching capacity	2.76 Tbps
Redundant MPUs	1:1
Redundant power supply	1+1
Redundant fans	Support for proper fan operation in case of a single fan failure for a short period at 40°C (104°F)
Long-term operating temperature [°C(°F)]	0°C to 45°C (32°F to 113°F)
Short-term operating temperature [°C(°F)]	-5°C to 55°C (23°F to 131°F)
Restriction on the operating temperature variation rate [°C(°F)]	≤ 30°C/hour (86°F/hour)
Storage temperature [°C(°F)]	-40°C to 70°C (-40°F to 158°F)
Long-term operating relative humidity [RH]	5% RH to 85% RH, non-condensing
Short-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Storage relative humidity [RH]	5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)]	≤ 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the device must decrease by 1°C [1.8°F] for every 220 m [721.78 ft.].)
Storage altitude [m(ft.)]	Less than 5000 m (16404 ft.)

Advantages

A)Stable and Wide Supply Chain System
we have established a perfect supply chain system to provide a wide range of products with reliable quality and reasonable price.
B)Competitive Price
We ensure the most competitive price. Warm reminders here, telecommunications equipment configuration is quite different, the price shown on the website is only for reference. After configuration and quantity been confirmed, we will give the final most competitive discounted price.
C) Safe and Easy Payment Solutions
We accept all major credit cards, PayPal and wire transfer.
D)Fast Delivery and Shipping
Fast, professional and reliable delivery.
E)10 Years Experience
we have been engaged in this industry more than 10 years, we have rich industry experience.
