CR5D00EIYB7P 03058814 32-port 25gbase-sfp28 Macsec Integrated Line Processing Unit Cm(lpui-1t-cm) For H W
5.0
Samples:
$1000.0/piece | Min. order : 1 piece
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-10(pieces):3(days),11-100(pieces):7(days),101-500(pieces):15(days),>500(pieces):To be negotiated(days)
Customization:
Customized logo (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets),Graphic customization (Min. Order: 10000 sets)
Brand Name:
-
Model Number:
CR5D00EIYB7P
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Typical heat dissipation
1949.25 BTU/hour
Typical power consumption
600.8 W
Short-term operating temperature
-5°C to 55°C (23°F to 131°F)
Dimensions without packaging (H x W x D)
40.1 mm x 399.2 mm x 535.6 mm
Long-term operating temperature
0°C to 45°C (32°F to 113°F)
Weight without packaging
11 kg (24.25 lb)
Part Number
03058814
Use
other
Place of Origin
Guangdong, China
Type
Integrated Line Processing Unit
Product Description
CR5D00EIYB7P (32-Port 25GBase-SFP28 MACsec Integrated Line Processing Unit CM(LPUI-1T-CM))
Overview
Table 1 Basic information about the CR5D00EIYB7P
| Item | Details |
|---|---|
| Description | 32-Port 25GBase-SFP28 MACsec Integrated Line Processing Unit CM(LPUI-1T-CM) |
| Part Number | 03058814 |
| Model | CR5D00EIYB7P |
| Card type | Fixed Board |
| Silkscreen |
LPUI-1T-CM 32x25GBase-SFP28 |
Appearance

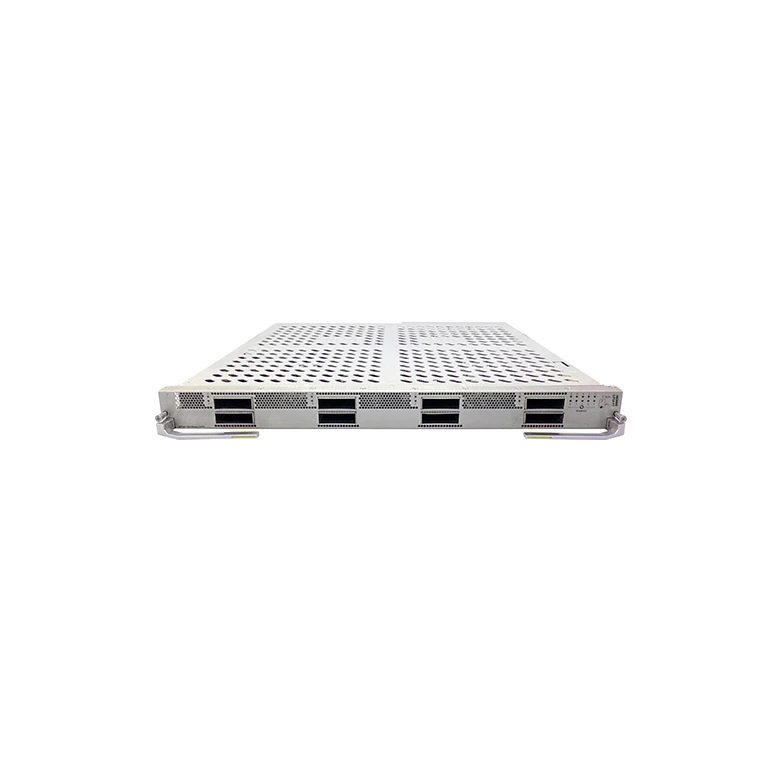

Figure 1 Appearance of the CR5D00EIYB7P
Table 2 Technical specification
| Item | Details |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] | 40.1 mm x 399.2 mm x 535.6 mm (1.58 in. x 15.72 in. x 21.09 in.) |
| Weight without packaging [kg(lb)] | 11 kg (24.25 lb) |
| Typical power consumption [W] | 600.8 W |
| Typical heat dissipation [BTU/hour] | 1949.25 BTU/hour |
| Long-term operating temperature [°C(°F)] | 0°C to 45°C (32°F to 113°F) |
| Short-term operating temperature [°C(°F)] | -5°C to 55°C (23°F to 131°F) |
Payment&Delivery
Company Information
Why Choose Us
1. More than 10 years of in-depth experience in the automotive field and technological innovation ability
2. Multi-brand, Full series. Achieve cooperation with many brands, and provide first-hand vehicle source.
3. The same demand, more abundant vehicle sources; the same product, more favorable price; the same price, shorter delivery time; the same delivery time, more convenient service
4. One-stop service. Vehicle export service capability, serve the whole process.
FAQ
Q: How about your main products?
A:Our product lines include Switches.Routers,OLTs,SDHs. Network Modules, Interface Cards, Security Firewalls, Wireless AP etc.
Q: What brand of products do you offer?
A:We are devoted to offering H w, ZTE. Fiberhome etc.
Q:Can we get free samples?
A: Sorry, it is not available, but you can pay for one.
Q: What trade terms do you use ?
A: We offer EXW.FOB,CIF and CNF or as your request.
Q: How about your delivery time?
A:Generally, it will take 1 to 10 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q: Do you test all your goods?
A:Yes we have professional engineer to test all devices before shipping.
