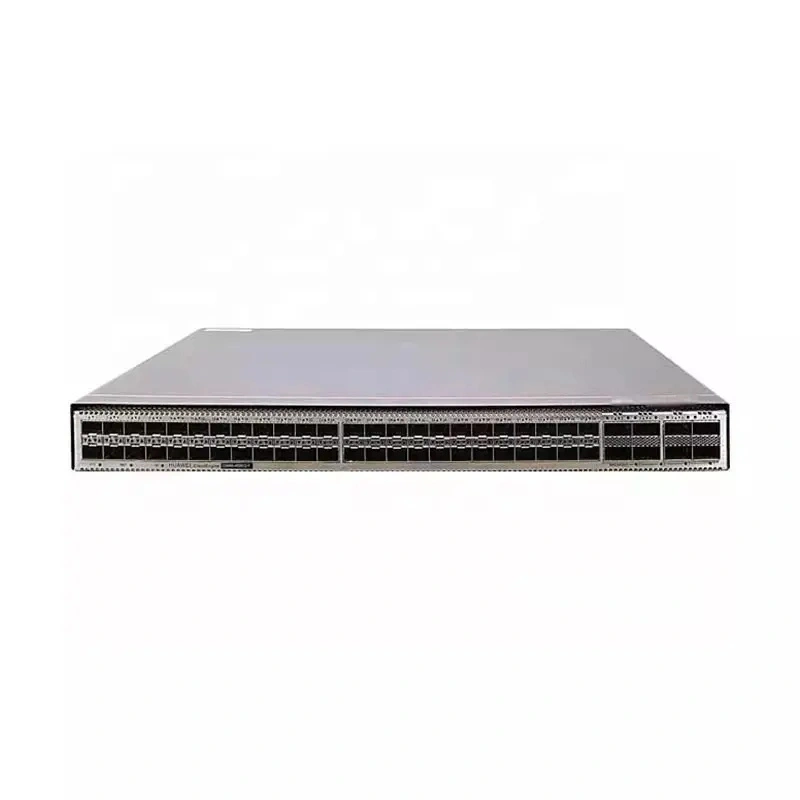

Data Center Switch CE6866-48S8CQ-PB 8*100G QSFP28 48 Port Network Switch 1

Data Center Switch CE6866-48S8CQ-PB 8*100G QSFP28 48 Port Network Switch 2

Data Center Switch CE6866-48S8CQ-PB 8*100G QSFP28 48 Port Network Switch 3

Data Center Switch CE6866-48S8CQ-PB 8*100G QSFP28 48 Port Network Switch

CE6866-48S8CQ-PB 48*25G SFP28, 8*100G QSFP28 48 Port Ethernet Network data center switch

The CE6866-48S8CQ-PB is a high-density 25GE access data center switch from Huawei's CloudEngine 6800 series. It features low latency, high bandwidth, and flexible expansion, making it suitable for large data center server access, high-end campus core/aggregation, and cloud-based enterprise network architectures. It can be used with core devices such as the CE16800/8851 to build a non-blocking network.

● Model No.: CE6866-48S8CQ-PB

● Port details: 48×25GE SFP28，8×100GE QSFP28

● Application scenarios: Large-scale data center server access, high-end campus core/aggregator network, cloud-based enterprise network architecture

● Feature: Low latency, high bandwidth, and flexible scalability

● Warranty: 1years

● MOQ: 1 pieces

Inquiry

Write a Review

Application scenarios

Data center server rack top-of-rack (ToR)/aggregation layer access

Core/aggregation layer for large enterprise campuses, supporting high-density Wi-Fi 6/6E terminals

Interconnection of cloud-based data centers and hybrid cloud architectures

High-reliability network construction for industries such as finance, government, and healthcare

CE6866-48S8CQ-PB-CE6866-48S8CQ-PF-48-25G-SFP28-8-1

CE6866-48S8CQ-PB-CE6866-48S8CQ-PF-48-25G-SFP28-8-1 (2)

Key selling points

Ultra-High-Density Access

48 25GE Ethernet/fiber ports to meet high-density server access needs; 8 100GE uplink ports provide 10 Gigabit uplink capability, supporting smooth upgrades to 50GE/200GE.

High Performance and Low Latency

Self-developed chip architecture with hardware-level forwarding meets the high bandwidth and low latency requirements of data centers; supports AI-powered O&M and intelligent traffic scheduling to improve network efficiency.

Full-Function Security and O&M

Supports data center features such as VXLAN and EVPN; covers security capabilities including ACL, QoS, multicast management, and attack prevention; provides multi-dimensional management via CLI, Web, SNMP, and Telemetry, adapting to cloud-network collaboration.

High-Reliability Design

Dual power supply with 1+1 redundancy, fan hot backup, and support for M-LAG multi-frame link aggregation ensures uninterrupted 24/7 service.

Detailed description

Parameter Items	Specification Description
Product Series	CloudEngine 6800 series
Device Type	Data center switch/high-performance Ethernet switch
Product Model	CE6866-48S8CQ-PB (part code: 02353EGM)
Physical Dimensions (W x D x H)	442 mm x 420 mm x 43.6 mm (1U)
Weight (Unloaded/Fully Loaded)	Empty configuration (excluding power fan): 6.7 kg; Full configuration (including power fan): 8.7 kg
Downlink Ports	48 x 25GE SFP28 (can be split into 10GE or upgraded to 50GE SFP56 through RTU)
Uplink Ports	8 x 100GE QSFP28 (can be split into 40GE or upgraded to 200GE QSFP56 through RTU)
Switching Capacity	8 Tbps
Packet Forwarding Rate	2400 Mpps
Memory	8 GB DRAM
Packet Buffer	64 MB
Power Supply Specifications	2 power modules, supporting 1+1 redundancy (AC/DC/HVDC options available)
Number of Fans	4 pluggable fans, supporting 3+1 redundancy
Airflow Direction	Port side air intake (PB suffix)
Maximum Power Consumption	544 W (48x25G+8x100G fully equipped optical module)
Operating Ambient Temperature	0 ° C to 40 ° C (0-1800m altitude)
