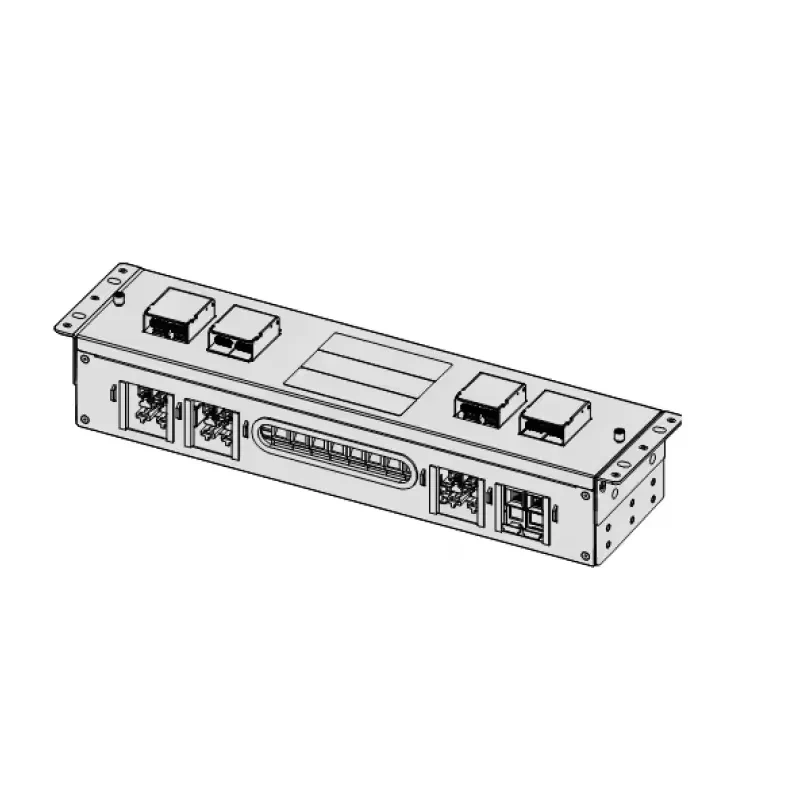

EH1M00PDBS01 02355419 2200 W DC power distribution box for H W

Input

Rated input voltage

-48 V DC/-60 V DC

Input voltage

-38.4 V DC to -72 V DC

Input mode

Eight DC inputs by default (Short-circuiting bars can convert the eight inputs into four.)

Maximum input current

60 A per input (120 A per input when short-circuiting bars are used)

Input terminal

Cord end terminal, allowing power cables with a maximum of 35 mm² diameter (When short-circuiting bars are used, M6 OT terminals are used for -48 V input and cord end terminals are used for RTN input.)

Output

Rated output voltage

-48 V DC to -60 V DC

Output voltage

-38.4 V DC to -72 V DC

Number of outputs

Eight

Current of each circuit breaker

63 A

Output protection

Overcurrent protection (Power supply needs to be restored manually once the power distribution box enters the overcurrent protection state.)

Output terminal

Cord end terminal, allowing power cables with a maximum of 35 mm² diameter

Environment specifications

Operating temperature

-25°C to +55°C (-13°F to +131°F)

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Relative humidity

≤ 95%

Standard atmospheric pressure

70 kPa to 106 kPa

Dimensions (H x W x D)

110 mm x 442 mm x 89.2 mm (4.33 in. x 17.40 in. x 3.51 in.)

Model

EH1M00PDBS01

Part number

02355419
