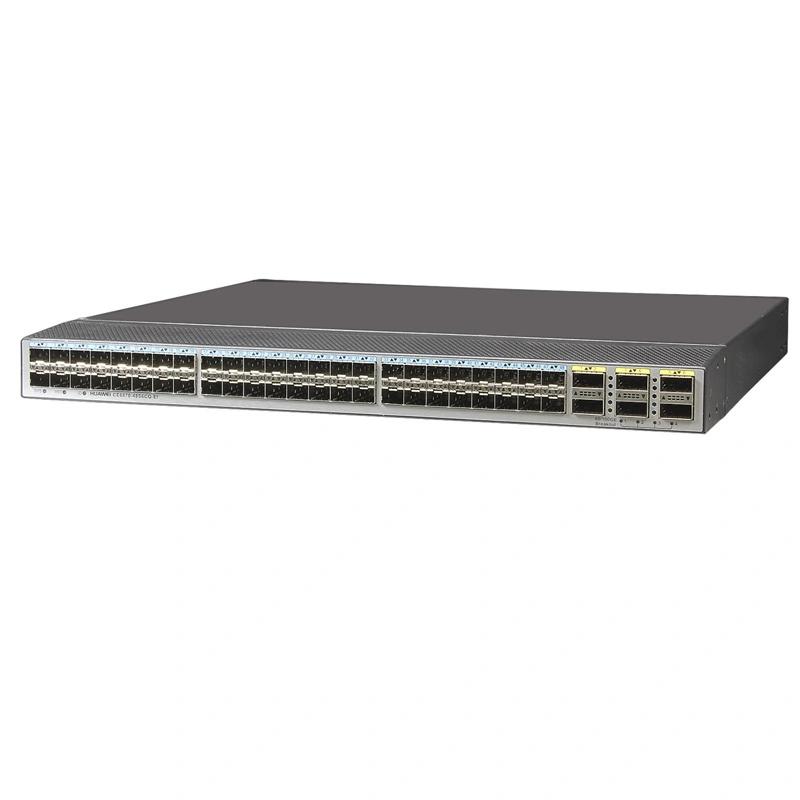

Enterprise Switch CE6870-48S6CQ-EI Data Center Switch with 6*100G QSFP28 ports
● Model No.: CE6870-48S6CQ-EI
● Port details: 48×10GE SFP+; 6×100GE QSFP28 (can be split into 40GE/25GE/10GE sub-interfaces)
● Application scenarios: Large Data Center TOR Access,Cloud Computing Nodes / Private Cloud,High-End Campus Core / Aggregator,Financial / Telecom Operator IDC
● Feature: 48×10GE + 6×100GE, 8GB large cache, full range of data center features
● Warranty: 1years
● MOQ: 1 pieces
Application scenarios
Large Data Center TOR Access: One CE6870-48S6CQ per rack, 48 ports connecting to 10 Gigabit servers, 6×100GE uplinks to the CE16800/CE12800 core, building a 100GE fully interconnected, non-converging network.
Cloud Computing Nodes/Private Cloud: Supports VXLAN+EVPN, providing Layer 2 extension for virtual machine migration across network segments; M-LAG ensures dual-active cloud hosts, with millisecond-level failover.
High-End Campus Core/Aggregation: 48×10GE connections to the campus's 10 Gigabit access switches, 6×100GE uplinks to the WAN gateway/firewall, simultaneously handling office, video conferencing, and IoT traffic.
Financial/Carrier IDC: Meets high availability, low latency, and large cache requirements, supports FCoE converged storage networks, reducing cabling costs.
Key selling points
48 10 Gigabit Ethernet ports + 6 100GE uplink ports. High-density server access with non-converging uplinks.
8GB ultra-large cache. Suitable for high-traffic, high-burst scenarios: video, cloud computing, big data, and storage.
Complete data center features. Supports VXLAN EVPN, M-LAG, iStack, and FCoE to meet cloud data center deployment needs.
Low latency, full line-speed. L2/L3 full line-speed forwarding, non-blocking architecture.
Detailed description
| parameter item | Specifications |
| fixed port | 48×10GE SFP+； 6 × 100GE QSFP28 (can be split into 40GE/25GE/10GE sub interfaces); 1 x Out of band management GE; 1 x USB |
| switching capacity | 2.16 Tbps (19.44 Tbps after stacking) |
| Forwarding rate | 720 Mpps (full line speed L2/L3 forwarding) |
| Hardware cache | 8 GB distributed entrance cache (resistant to traffic bursts) |
| Virtualization/Reliability | IStack 9 stacks; M-LAG dual active; VRRP/BFD/ERPS； Dual power supply+hot swappable fan |
| Core Features | VXLAN+EVPN； TRILL； FCoE； PFC/ETS/DCBX； Telemetry； ZTP zero configuration; MACsec hardware encryption |
| power supply | AC 90–290V； DC -38.4~-72V； 600W redundant power supply |
| power consumption | Maximum 333W; typical 142-159W (depending on the number of optical modules) |
| Size/Weight | 442 × 420 × 43.6 mm; approximately 8.7 kg |
| environment | 0-40 ℃ (within 1800m), 5% -95% non condensing |
