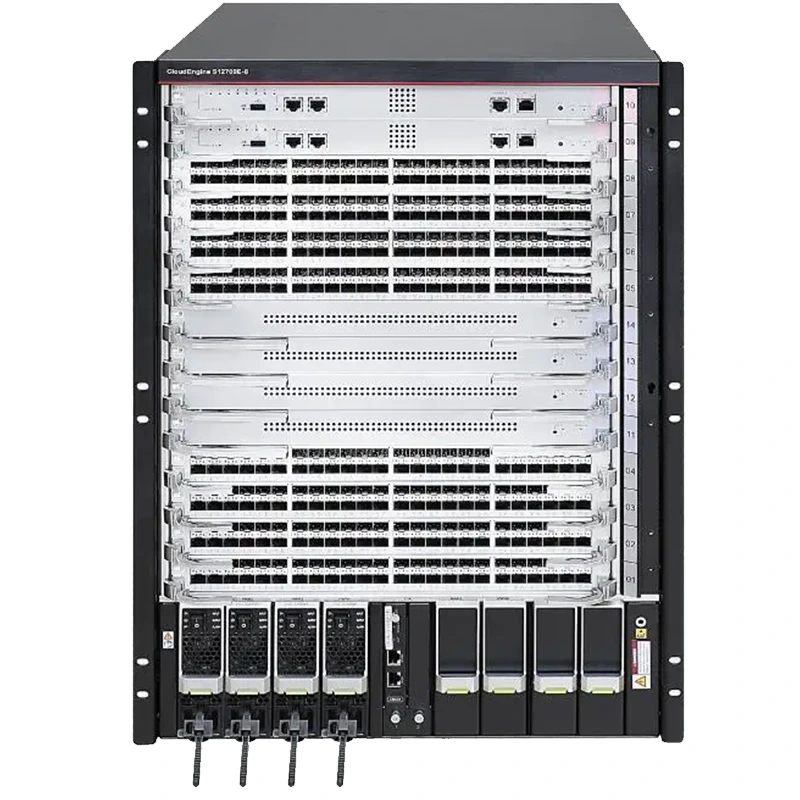

Enterprise Switch S12700E-12 02116009 CloudEngine S12700E Series Ethernet Network Switch 1

Enterprise Switch S12700E-12 02116009 CloudEngine S12700E Series Ethernet Network Switch 2

Enterprise Switch S12700E-12 02116009 CloudEngine S12700E Series Ethernet Network Switch 3

Enterprise Switch S12700E-12 02116009 CloudEngine S12700E Series Ethernet Network Switch 4

Enterprise Switch S12700E-12 02116009 CloudEngine S12700E Series Ethernet Network Switch 5

Enterprise Switch S12700E-12 02116009 CloudEngine S12700E Series Ethernet Network Switch

CloudEngine S12700E-12 is the flagship model in the Huawei S12700E series, with 12 business board slots. It is the core switch with the most slots and the strongest performance in the series, designed specifically for scenarios such as ultra large park network cores, provincial government networks, and large data centers

● Model No.: S12700E-12

● switching capacity: 921,600 Mpps

● Packet forwarding rate: 2,856 / 8,628 Tbps

● Warranty: 1years

● MOQ: 1 pieces

Inquiry

Write a Review

Application scenarios

1. Core of large-scale park network: the core layer of park network in industries such as government, finance, energy, universities, and tertiary hospitals

2. Wired and wireless fusion deployment: Wi Fi 6 fully wireless campus construction, simplified architecture with on-board AC function

3. Data center aggregation: the aggregation layer of small and medium-sized data centers or enterprise self built data centers

4. High density access scenario: Large networks requiring high-density 100GE/40GE/10GE ports

Key selling points

1. High Performance and Non-blocking Switching: Utilizing advanced cell switching technology to ensure zero packet loss in services. It also supports high-density 100GE ports, meeting the massive data throughput demands of large-scale campus core networks.

2. Deep Integration of Wired and Wireless: The functions of wireless AC are integrated within the switch (i.e., board-mounted AC), eliminating the need for separate AC deployment. It enables unified management of wired and wireless users, facilitates policy control and quality assurance based on users and applications, and simplifies network architecture.

3. Powerful Virtualization and Operation & Maintenance Capabilities: Supports SVF (Super Virtual Fabric) technology, enabling the virtualization of up to 10K access switches and APs into a single device for centralized management, significantly simplifying O&M tasks. It also supports VxLAN technology, facilitating the construction of a flexible Layer 2 network.

4. High Reliability and Security: Key components such as the main control board, switching network board, and power supply adopt redundant designs and support hot-swapping to ensure stable operation of core nodes. In terms of security, mechanisms like MACsec, DoS attack prevention, and hierarchical command-line protection are supported

Detailed description

Item	Description
Number of LPU slots	12
Number of MPU slots	2
Number of SFU slots	4
Number of fan slots	5
Number of power module slots	6
Number of CMU slots	2
Port density per chassis	576xFE, 576xGE, 576x10GE, 480x25GE, 288x40GE, 288x100GE
Installation	The switch can be installed in an N66E or N68E cabinet, one cabinet for one chassis.
Cluster switch system (CSS)	Service port clustering
Maximum power consumption (fully configured) NOTE: The heat dissipation value of a chassis is equal to the current power consumption.	8981 W
Power specifications	DC input voltage Rated voltage: -48 V DC to -60 V DC Maximum voltage range: -40 V DC to -72 V DC AC input voltage Rated voltage: 110 V AC/220 V AC, 50/60 Hz Maximum voltage range: 90 V AC to 290 V AC; 47 Hz to 63 Hz (The maximum output power reduces by a half when the input voltage ranges from 90 V AC to 175 V AC.) HVDC input voltage (3000 W AC) Rated voltage: 240 V DC Maximum voltage range: 190 V DC to 290 V DC
Dimensions (H x W x D, without rack-mounting brackets)	With cable management frames (19 U high): 841.75 mm x 442 mm x 585 mm (33.1 in. x 17.4 in. x 23.0 in.) Without cable management frames (19 U high): 841.75 mm x 442 mm x 517.4 mm (33.1 in. x 17.4 in. x 20.37 in.)
Weight (empty/fully configured)	71.8kg/184kg (158.3 lb/405.7 lb)
Reliability and availability	Mean Time Between Failures (MTBF): 31.54 years Availability: 0.999996381 NOTE: The preceding values are calculated based on the typical configuration of the product. The actual values will vary depending on the modules installed on the product.
Environment specifications	Operating temperature and altitude: -60 m to +1800 m (-197 ft. to 5906 ft.): 0°C to 45°C (32°F to 113°F) 1800 m to 4000 m (5906 ft. to 13123 ft.): Operating temperature decreases by 1°C (1.8°F) every time the altitude increases 220 m (722 ft.). 4000 m (13123 ft.): 0°C to 35°C (32°F to 95°F) Relative humidity: 5% RH to 95% RH (noncondensing) Storage temperature: -40°C to +70°C (-40°F to +158°F) Storage altitude: < 5000 m (16404 ft.)
Noise under normal temperature (sound power)	≤ 78 dB(A) NOTE: If the LST7C24HX6E0 (03033FGU-001) card is used and 24 100G optical modules are configured in full configuration, the noise is 79 dB(A).
Certification	EMC certification Safety certification Manufacturing certification
Part number	02116009
