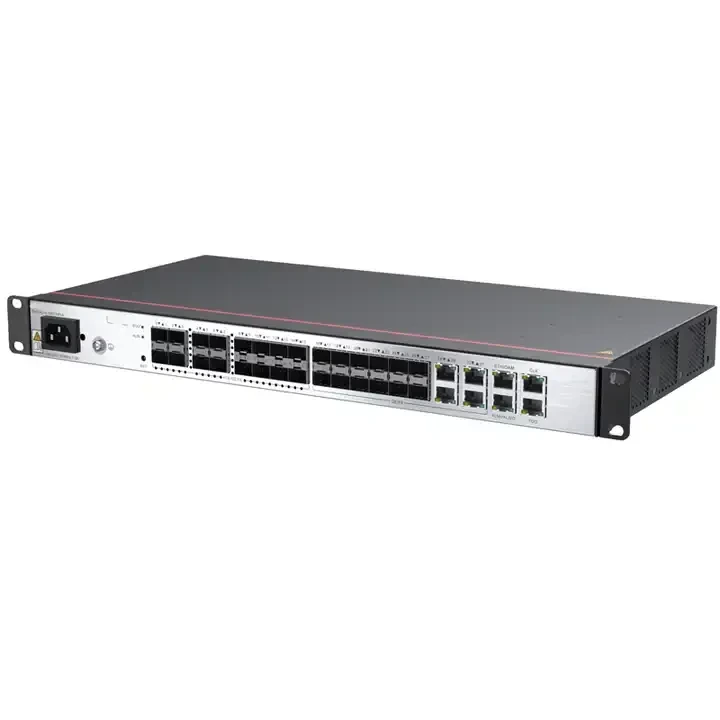

Netengine 8000 M1A 02354KYT Fixed Interface(2*10ge+8*ge),1*ac Power Enterprise Routers Cr8pm1abasct
5.0
Muestras:
$1000.0/pieza | Mín. orden : 1 pieza
Envío:
Apoyo transporte marítimo
Lugar de origen:
Porcelana
Pagos:
L/C... D/A... D/P... T/T... Western Union... MoneyGram... OA
Tiempo de entrega:
1-10 (piezas): 3 (días), 11-100 (piezas): 7 (días), 101-500 (piezas): 15 (días),> 500 (piezas): para ser negociado (días)
Personalización:
Logotipo personalizado (Min. Pedido: 10000 juegos), embalaje personalizado (mín. Pedido: 10000 juegos), personalización gráfica (mín. Pedido: 10000 juegos)
Marca:
¿Cómo?
Número de modelo:
CR8PM1ABASCT
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Complete el siguiente formulario para solicitar una cotización o solicitar más información sobre nosotros. Por favor, sea lo más detallado posible en su mensaje, y le responderemos lo antes posible con una respuesta. Estamos listos para comenzar a trabajar en su nuevo proyecto, contáctenos ahora para comenzar.
Peso
14 kg
Uso
Otros
Lugar de origen
Guangdong... China
Tipo
Enrutador empresarial
제품 설명
HW NetEngine 8000 series routers provide an all-service, intelligent router platform designed for the cloud era. Using ultra-broadband pipes to construct simplified networks, and Segment Routing (SR) and Segment Routing over IPv6 (SRv6) protocols to establish intelligent connections, NetEngine 8000 combines with HW's next generation Network Cloud Engine (NCE) to implement full-lifecycle automation and proactive Operations and Maintenance (O&M). An intent-driven approach frees customers from unnecessary constraints, unleashing network potential. Available in a range of form factors and applicable to core, aggregation, and access networks, the award-winning NetEngine 8000 offers high performance and reliability, with low power consumption and full evolution capabilities. Applications include functioning as a core node for an enterprise Wide Area Network (WAN), as an access node on a large enterprise network, as a Data Center Interconnect (DCI) node, or as a campus or Internet Data Center (IDC) network egress.
세부 정보 이미지
사양
목
|
사양
|
캐비닛 설치 표준
|
ETSI 21-inch; IEC 19-inch
|
포장을 제외한 치수(높이 x 너비 x 깊이) [mm(인치)]
|
88.9 mm x 442 mm x 220 mm (3.5 in. x 17.4 in. x 8.66 in.)
|
포장 포함 치수(높이 x 너비 x 깊이) [mm(인치)]
|
335 mm x 585 mm x 390 mm (13.19 in. x 23.03 in. x 15.35 in.)
|
섀시 높이 [U]
|
2 U
|
포장을 제외한 무게 [kg(lb)]
|
4.2 kg (9.26 lb)
|
포장 포함 무게 [kg(lb)]
|
6.9 kg (15.21 lb)
|
포장을 제외한 무게(전체 구성) [kg(lb)]
|
[CXP-160/CXP-160-B]DC:10.65kg(23.48 lb)
|
Weight with packaging (full configuration) [kg(lb)]
|
[CXP-160/CXP-160-B]DC:13.39kg(29.52 lb)
|
일반적인 전력 소비량(구성 포함) [W]
|
[CXP-160/CXP-160-B]DC Typical configuration 1: 2*CXP+1*FAN+2*DC power+2*CR8D00L4XFC0 + 2*CR8D00EAGFC0 =196.1 W
|
[CXP-160/CXP-160-B]DC Typical configuration 2: 2*CXP+1*FAN+2*DC power+2*CR8D00E1VBC0+1*CR8D00L4XFC0 + 1*CR8D00EAGFC0 =205.8 W
| |
일반적인 열 방출(구성 포함) [BTU/시간]
|
[CXP-160/CXP-160-B]DC Typical configuration 1: 2*CXP+1*FAN+2*DC power+2*CR8D00L4XFC0 + 2*CR8D00EAGFC0 =285.9 BTU/hour
|
[CXP-160/CXP-160-B]DC Typical configuration 2: 2*CXP+1*FAN+2*DC power+2*CR8D00E1VBC0+1*CR8D00L4XFC0 + 1*CR8D00EAGFC0 =317.41
BTU/hour | |
MTBF [년]
|
163.45 년도
|
MTTR [시간]
|
0.5 시간
|
유효성
|
0.999999651
|
전원 공급 모드
|
DC
|
정격 입력 전압 [V]
| –48 V/–60 V
|
입력 전압 범위 [V]
| –40 V to –72 V
|
최대 입력 전류 [A]
|
30 A
|
Rated output power [W]
|
1200 W
|
최대 입력 케이블 크기 [mm²]
|
4mm^2 (0-14m)
|
프런트엔드 회로 차단기/퓨즈 [A]
|
<000000>ge; 16 A (Based on long-term evolution requirements and site conditions, the recommended current is greater than or equal to 32 A.)
|
방열 모드
|
Air cooling
|
공기 흐름 방향
|
From left to right
|
Noise at normal temperature (acoustic power) [dB(A)]
| < 55 dB(A)
|
슬롯 수
|
11
|
서비스 보드 슬롯 수
|
6 |
스위칭 용량
|
320 Gbit/s
|
Redundant CXPs
|
1:01
|
중복 전원 공급 장치
|
1+1
|
중복 팬
|
1+1. Short-term running when a single fan becomes invalid at the ambient temperature of 40°C (104°F)(one fan module contains two
fans) |
장기 작동 온도 [°C(°F)]
|
-40°C에서 65°C(-40°F에서 149°F)
|
작동 온도 변화율에 대한 제한 [°C(°F)]
|
<000000>르; 30°C/hour (54°F/hour)
|
보관온도 [°C(°F)]
|
-40°C에서 70°C(-40°F에서 158°F)
|
장기 작동 상대 습도[RH]
|
5% to 85% RH, non-condensing
|
단기 작동 상대 습도[RH]
|
5% to 95% RH, non-condensing
|
보관 상대 습도 [RH]
|
5% to 95% RH, non-condensing
|
장기 작동 고도 [m(ft.)]
|
<000000>le; 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature
of the device decreases by 1°C [33.8°F] each time the altitude increases by 220 m [721.78 ft.].) |
보관 고도 [m(ft.)]
| < 5000 m (16404.199 ft.)
|
