EH1D2X04XED0 03030NXC S9700 Series S9703 S9706 S9712 4-Port 10GBASE-X Interface Card (ED, XFP) for h w

EH1D2X04XED0 -4-Port 10GBASE-X Interface Card (ED, XFP)



Version Mapping

テーブル 1  Switch chassis and software versions matching the card

Card Name	S9700 Chassis
EH1D2X04XED0	Supported in V200R001C00 to V200R013C00

Introduction

の  EH1D2X04XED0  can be installed in:

• Slots 01 to 03 in an S9703 chassis.
• Slots 01 to 06 in an S9706 chassis.
• Slots 01 to 12 in an S9712 chassis.

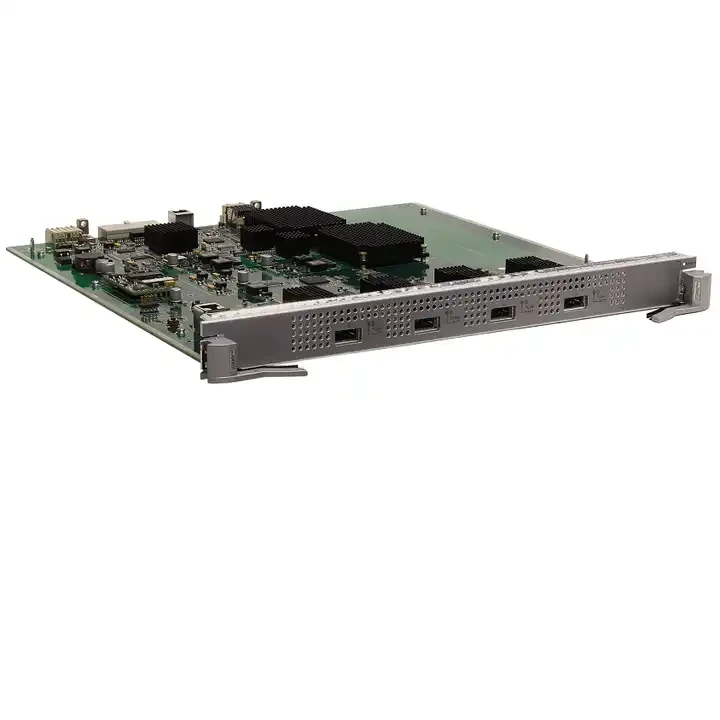

形 1   の外観  EH1D2X04XED0

機能

テーブル 2   Functions of the  EH1D2X04XED0

関数	説明
Basic function	Provides four 10GE optical ports for data transmission and line-rate switching.
Distributed forwarding	Performs concurrent data forwarding using a distributed data plane.
Hot swapping	の  EH1D2X04XED0  is hot swappable.



仕様

テーブル 3   Specifications of the  EH1D2X04XED0

アイテム	説明
Physical specifications	Dimensions (W x D x H): 394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.) Weight: 2.30 kg (5.07 lb) Maximum power consumption: 93 W
Environment specifications	動作温度: 0°Cから 45°C (32°Fから 113°F) Operating relative humidity: 5% RH to 95% RH (noncondensing) Storage temperature: -40°Cから+70°C (-40°F to +158°F) Storage relative humidity: 5% RH to 95% RH (noncondensing)
