Tarjeta de interfaz ET1D2G48SX5S 03032WSS Serie S9700 S9703 S9706 S9712 de 48 puertos 100/1000BASE-X (X5S, SFP) para hardware

ET1D2G48SX5S -48-Port 100/1000BASE-X Interface Card (X5S, SFP)



Version Mapping

Table 1  Switch chassis and software versions matching the card

Card Name	S9700 Chassis
ET1D2G48SX5S	Supported only in V200R013C00

Ievads

The  ET1D2G48SX5S  provides high performance, large entry sizes, and a large buffer for data switching. This card is highly integrated and has a large port density.

The  ET1D2G48SX5S  can be installed in:

• Slots 01 to 03 in an S9703 chassis.
• Slots 01 to 06 in an S9706 chassis.
• Slots 01 to 12 in an S9712 chassis.

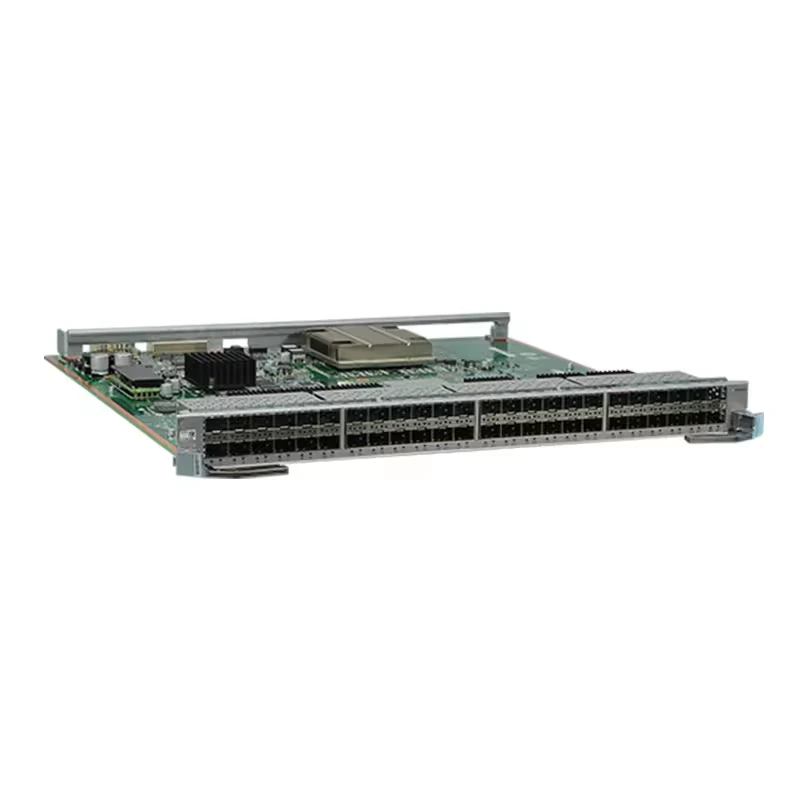

Figure 1  Appearance of the  ET1D2G48SX5S

Table 2  Functions of the ET1D2G48SX5S

Funkcija	Apraksts
Basic functions	Provides forty-eight GE optical ports for data access and line-rate switching.
Forwarding speed	48 Gbit/s
Distributed forwarding	Performs concurrent data forwarding using a distributed data plane.
Hot swapping	The  ET1D2G48SX5S  is hot swappable.



Specifikācijas

Table 3  Specifications of the  ET1D2G48SX5S

Vienums	Apraksts
Physical specifications	Dimensions (W x D x H): 394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.) Weight: 3.1 kg (6.83 lb) Maximum power consumption: 110 W
Environment specifications	Operating temperature: 0°C to 45°C (32°F līdz 113°F) Operating relative humidity: 5% RH to 95% RH (noncondensing) Storage temperature: -40°C to +70°C (-40°F to +158°F) Storage relative humidity: 5% RH to 95% RH (noncondensing)
