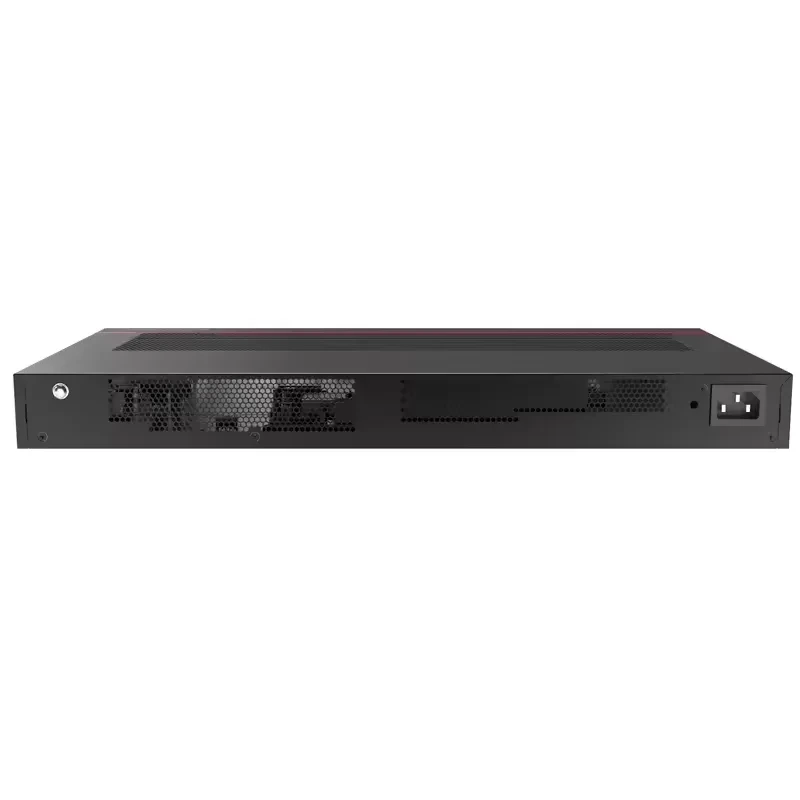

S6720-52X-PWH-SI 98010743 Conmutador Gigabit Ethernet SFP 10GE de 48 puertos serie S6720-SI

S6720-SI

S6720-52X-PWH-SI

V200R011C10 to V200R019C10 versions

Memory (RAM)

1 GB

Flash

512 MB in total

متوسط ​​الوقت بين الأعطال (MTBF)

35.1 سنين

متوسط ​​​​الوقت اللازم للإصلاح (MTTR)

2 ساعات

التوفر

> 0.99999

Service port surge protection

Common mode: ±7 كيلو فولت

Power supply surge protection

• Using 1000 W AC power modules: ±6 kV in differential mode, ±6 كيلو فولت في الوضع المشترك
• Using 1150 W AC power modules: ±2 kV in differential mode, ±4 كيلو فولت في الوضع المشترك

الأبعاد (الارتفاع × العرض × العمق)

• Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 425.0 mm (1.75 in. x 17.4 in. x 16.73 in.)
• Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.3 mm (1.75 in. x 17.4 in. x 17.77 in.)

When 1150 W power modules are installed, they stretch out from the chassis. Therefore, the total depth of the switch changes to 541.1 mm (21.3 in.).

Weight (with packaging)

7 kg (15.43 lb)

Stack ports

Any MultiGE or 10GE SFP+ ports (a maximum of 16 physical ports)

RTC

Supported

RPS

Not supported

PoE

Supported

Rated voltage range

100 V AC to 240 V AC, 50/60 Hz

-48 V DC to -60 V DC

Maximum voltage range

90 V AC to 264 V AC, 47 Hz to 63 Hz

-38.4 V DC to -72 V DC

Maximum power consumption (100% throughput, full speed of fans)

• Using 650 W DC power modules
  • Not providing the PoE function: 207.4 W
  • 100% PoE loads: 940 W (system power consumption: 200.8 W, PoE: 739.2 W)
• Using 1150 W AC or 1000 W AC power modules
  • Not providing the PoE function: 236.8 W
  • 100% PoE loads: 1724.4 W (system power consumption: 284.4 W, PoE: 1440 W)

Typical power consumption (30% of traffic load, tested according to ATIS standard)

159.5 W (without PoE)

درجة حرارة التشغيل

0°ج إلى 45°C (32°ف إلى 113°F) at an altitude of 0-1800 m (0-5906 ft.)

Short-term operating temperature

-5°ج إلى +50°C (23°ف إلى 122°F) at an altitude of 0-1800 m (0-5906 ft.)

درجة حرارة التخزين

-40°ج إلى +70°C (-40°F to +158°F)

Noise under normal temperature (27°C, sound power)

< 66.4 dB(A)

الرطوبة النسبية

5% to 95%, noncondensing

ارتفاع التشغيل

0-5000 m (0-16404 ft.)

شهادة

• EMC certification
• Safety certification
• Manufacturing certification

Part number

98010743
