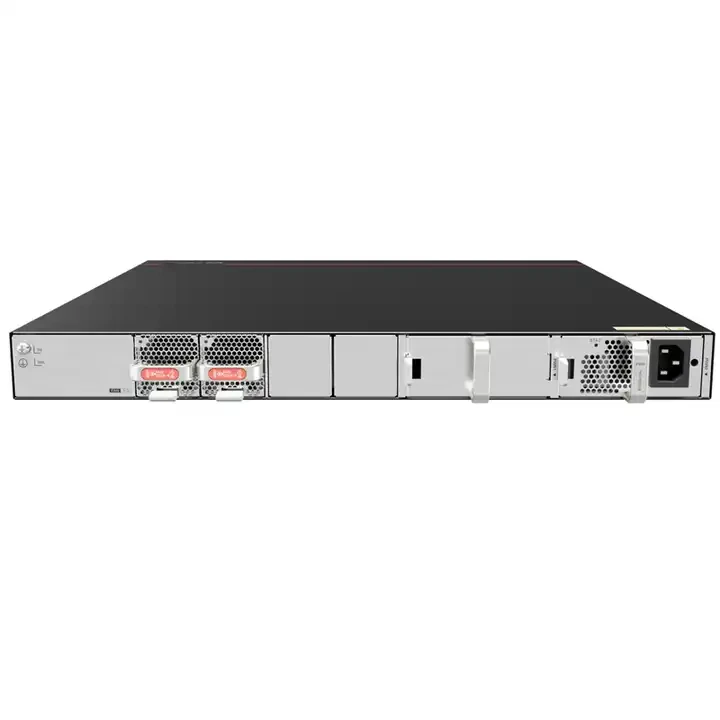

USG6575E-B USG6000E Series Enterprise Rackmount Security Gateway AI Multi-port Firewall
Installation Type
|
Rack,Work bench
| ||
Cabinet installation standard
|
Cabinet with a depth of 600 mm or above
| ||
Wide [mm]
|
442 มม.
| ||
Depth [mm]
|
420 มม.
| ||
Height [mm]
|
43.6 มม.
| ||
Chassis height [U]
|
1 | ||
Weight without packaging [kg(lb)]
|
6.25 (13.78)
| ||
Weight with packaging [kg(lb)]
|
8.25 (18.19)
| ||
Maximum power consumption [W]
|
76.9
| ||
Maximum heat dissipation [BTU/hour]
|
262.38
| ||
Heat dissipation mode
|
The fan module locates at the air exhaust of the system.
| ||
Power supply mode
|
AC built-in
| ||
Rated input voltage [V]
|
100 V to 240 V, 50 Hz/60 Hz
| ||
Input voltage range [V]
|
90 V to 264 V, 47 Hz to 63 Hz
| ||
Maximum output power [W]
|
150
| ||
Maximum input current [A]
|
3 | ||
CPU
|
1 CPU, 4 cores/CPU, up to 1.4 GHz
| ||
Memory
|
DDR4 8 GB
| ||
NOR Flash
|
64MB
| ||
NAND Flash
|
2 GB
| ||
Hard disk
|
Optional. You can purchase a 2.5-inch SATA hard disk (240 GB/960 GB/1000 GB) from Huawei based on the site requirements. The hard
disk is hot swappable. | ||
Redundant power supply
|
Two power modules are supported for 1+1 power redundancy.
| ||
Redundant fans
|
1+1
| ||
Number of power modules
|
1 | ||
Number of fan modules
|
2 | ||
Types of fans
|
Pluggable
| ||
Noise at normal temperature (acoustic power) [dB(A)]
|
<000000>le;55dbA
| ||
Airflow direction
|
Air inlet from front and air outlet from rear
| ||
Long-term operating temperature [°C(°F)]
|
- Without hard disk driver: 0°C to 45°C
| ||
- With hard disk driver: 5°C to 40°C
| |||
Storage temperature [°C(°F)]
|
-40°C to 70°C
| ||
Long-term operating relative humidity [RH]
|
5% RH to 95% RH, non-condensing
| ||
Storage relative humidity [RH]
|
5% RH to 95% RH, non-condensing
| ||
Long-term operating altitude [m(ft.)]
|
- Without hard disk driver: 0 m to 5000 m
| ||
- With hard disk driver: 0 m to 3000 m
| |||
Storage altitude [m(ft.)]
|
0 m to 5000 m
| ||
MTBF [year]
|
41.89
| ||
MTTR [hour]
|
2 | ||
Console port
|
RJ45
| ||
Eth Management port
|
RJ45
| ||
Maximum number of 10GE ports
|
2 | ||
Maximum number of GE ports
|
8 | ||
