ES1D2X08SX5H 03032YMG S7700 Series Switch 8-Port 10GBASE-X Interface Card (X5H, SFP+)

ES1D2X08SX5H-8-Port 10GBASE-X Interface Card (X5H, SFP+)



Version Mapping

Table 1 Switch chassis and software versions matching the card

Card Name	S7700 Chassis
ES1D2X08SX5H	Supported in V200R013C00 and later versions

Introduction

The ES1D2X08SX5H can be installed in:

• Slots 01 to 03 in an S7703 or S7703 PoE chassis.
• Slots 01 to 06 in an S7706 or S7706 PoE chassis.
• Slots 01 to 12 in an S7712 chassis.

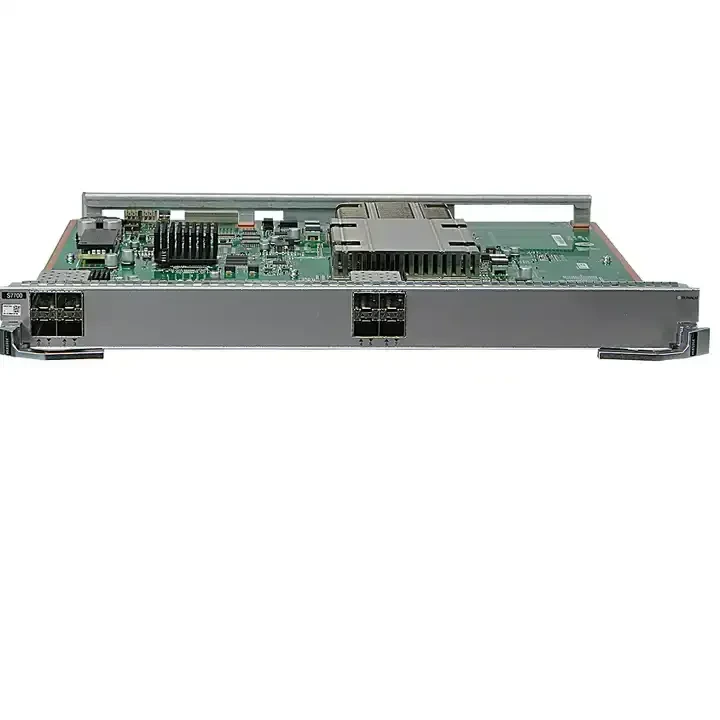

Figure 1 Appearance of the ES1D2X08SX5H

Functions

The ES1D2X08SX5H provides the following functions:

• Communicates with the MPU and works under the control of the MPU.
• Searches for routes and destination addresses of data packets for forwarding.
• Forwards data packets.

Table 2 Functions of the ES1D2X08SX5H

Function	Description
Basic functions	Provides eight 1000M/10G BASE-X ports for data transmission and switching.
Distributed forwarding	Performs concurrent data forwarding using a distributed data plane.
Hot swapping	The ES1D2X08SX5H is hot swappable.



Specifications

Table 3 Specifications of the ES1D2X08SX5H

Item	Description
Physical specifications	Dimensions (H x W x D): 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.) Weight: 2.94 kg (6.48 lb) Maximum power consumption: 130 W
