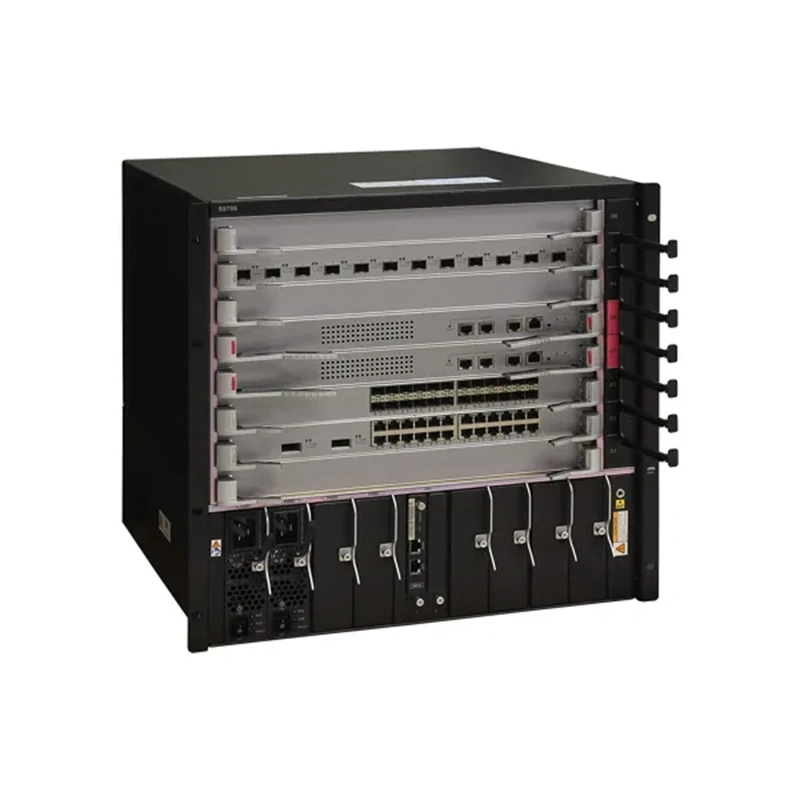

S9306 is a 6-slot core routing switch in the Huawei Quidway S9300 series, designed for large enterprise campus network cores and data center aggregation scenarios. This series was released around 2010 and is Huawei's previous generation classic T-bit core switching product. It has been gradually replaced by the CloudEngine S12700E and S16700 series.

● Model No.: S9306

● switching capacity:1152 Mpps

● Packet forwarding rate: 540 Mpps / 1440 Mpps

● Warranty: 1years

● MOQ: 1 pieces

Inquiry

Write a Review

Application scenarios

1. Small business park core/aggregation: 3 business slots to meet medium-sized network needs

2. Network core of government, power industry and other institutions: successfully applied to projects such as Liaoning Development and Reform Commission and Yiyang Power Industry

3. Data center aggregation layer: supports MPLS VPN, VxLAN and other data center features

4. IPv6 network construction: Supports IPv4/IPv6 dual protocol stack to meet the requirements of IPv6 evolution

Key selling points

1. Advanced exchange architecture

The backplane has good scalability and can smoothly expand to higher bandwidths

Support smooth upgrade of single port speeds of 40GE and 100GE, compatible with existing network cards

A single device can support a maximum of 576 10 Gigabit ports

2. Operational level high reliability design

All key components (main control, power supply, fan) adopt redundant design, and all modules support hot plugging

Support seamless upgrade of ISSU business without interruption during the upgrade process

Support CSS switching network cluster technology, providing the industry's largest 256G cluster bandwidth between hosts, with 2 virtual switches as 1 logical switch, improving link utilization and eliminating single point of failure through cross frame link aggregation

Support reliability mechanisms such as cross device E-Trunk, VRRP, BFD for VRRP, etc

Detailed description

Item	Description
LPU slots	6
MPU slots	2
Fan slots	2
System power supply slots	4
PoE power supply slots	4
Maximum port density	V100R006C00 and V200R001C00: 288xFE, 288xGE, 240x10GE V200R002C00 to V200R007C00: 288xFE, 288xGE, 240x10GE, 12x40GE V200R008C00 to V200R009C00: 288xFE, 288xGE, 240x10GE, 12x40GE, 12x100GE V200R010C00 to V200R019C00: 288xFE, 288xGE, 288x10GE, 48x40GE, 24x100GE V200R019C00 to V200R020C10: 288xFE, 288xGE, 288x10GE, 48x40GE, 36x100GE V200R021C00 and later versions: 288xFE, 288xGE, 288x10GE, 72x40GE, 36x100GE
Installation	In an N66E or N68E cabinet, one or two chassis in a cabinet
CSS	CSS card or service port clustering
PoE	Power input: Versions earlier than V200R006C00 support only AC power supply. V200R006C00 and later versions support both AC power supply and DC power supply (only 2200 W DC power modules). V200R012C00 and later versions support 3000 W AC power supply and 3000 W high-voltage DC power supply PoE power module backup: no backup, 3+1 backup, or 2+2 backup Maximum output power: 9000 W
Maximum power consumption (fully configured, no PoE power supply) NOTE: The heat dissipation value of a chassis equals the current power consumption of the chassis.	2200 W
Power specifications	DC input voltage Rated voltage: -48 V DC/-60 V DC Maximum voltage range: 1600 W/2400 W DC power module: -38.4 V DC to -72 V DC 2200 W DC power module: -40 V DC to -72 V DC AC input voltage Rated voltage: 110 V AC/220 V AC, 50/60 Hz Maximum voltage range: 90 V AC to 290 V AC; 47 Hz to 63 Hz (The output power reduces to half of the maximum output when the input voltage is in the range of 90 V AC to 175 V AC.) HVDC input voltage (3000 W AC) Rated voltage: 240 V DC Maximum voltage range: 190 V DC to 290 V DC HVDC input voltage (3000 W HVDC) Rated voltage: 240 V DC/ 380 V DC Maximum voltage range: 190 V DC to 400 V DC
Dimensions (H x W x D, without rack-mounting brackets)	With cable management frames (10 U high): 441.7 mm x 442 mm x 585 mm (17.39 in. x 17.4 in. x 23.0 in.) Without cable management frames (10 U high): 441.7 mm x 442 mm x 517.4 mm (17.39 in. x 17.4 in. x 20.37 in.)
Weight (empty/fully configured)	15 kg/61.8 kg (33.1 lb/136.2 lb)
Reliability and availability	MTBF: 24.2 years MTTR: 2 hours Availability: 0.9999959 NOTE: The preceding values are calculated based on the typical configuration of the product. The actual values will vary depending on the modules installed on the product.
Environment specifications	Operating temperature and altitude: -60 m to +1800 m (-197 ft. to 5906 ft.): 0°C to 45°C (32°F to 113°F) 1800 m to 4000 m (5906 ft. to 13123 ft.): Operating temperature decreases by 1°C (1.8°F) every time the altitude increases 220 m (722 ft.). 4000 m (13123 ft.): 0°C to 35°C (32°F to 95°F) Relative humidity: 5% RH to 95% RH (noncondensing) Storage temperature: -40°C to +70°C (-40°F to +158°F) Storage altitude: < 5000 m (16404 ft.)
Noise at normal temperature (acoustic power)	≤ 72 dB(A)
Certification	EMC certification Safety certification Manufacturing certification
Part number	S9306 chassis: 02113090 S9306 chassis, PoE supported: 02113196
