Fusionserver 1288h V5 1288h Series 1u Rack Server Supports 10 Pcs 2.5-inch And 24 Ddr4 Dimms 1

Fusionserver 1288h V5 1288h Series 1u Rack Server Supports 10 Pcs 2.5-inch And 24 Ddr4 Dimms 2

Fusionserver 1288h V5 1288h Series 1u Rack Server Supports 10 Pcs 2.5-inch And 24 Ddr4 Dimms

Samples:

$3299.0/piece | Min. order : 1 piece

Shipping:

Support Sea freight

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-10(pieces):3(days),11-100(pieces):7(days),101-500(pieces):15(days),>500(pieces):To be negotiated(days)

Customization:

Customized logo (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets),Graphic customization (Min. Order: 10000 sets)

Brand Name:

Model Number:

1288H V5

Inquiry

Write a Review

Two hot-swappable PSUs in 1+1 redundancy

43 mm x 447 mm x 748 mm

Chipset

Intel C621A

Power supply type

2 hot-swappable PSUs in 1+1 redundancy

Memory

12 TB

processor main frequency

3200/4200/5200/6200/8200 series

Processor Type

1st 2nd Generation Intel Xeon Scalable processors

Products Status

Stock

Place of Origin

Guangdong, China

Type

rack server

Product Description

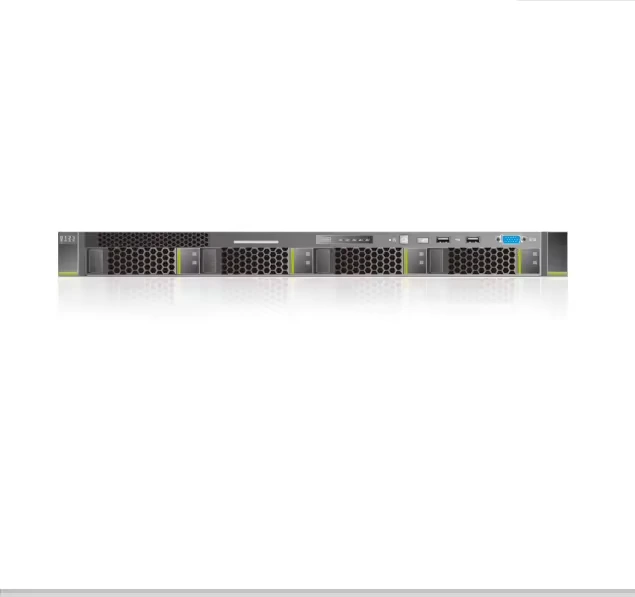

FusionServer 1288H V5 1288H Series 1U rack server supports 10 pcs 2.5-inch and 24 DDR4 DIMMs

Specification Name	Specifications
Model	FusionServer 1288H V5
Form Factor	1U, 2-socket rack server
Processors	1 or 2 1st Generation Intel® Xeon® Scalable processors (3100/4100/5100/6100/8100 series), up to 205 W
Processors	1 or 2 2nd Generation Intel® Xeon® Scalable processors (3200/4200/5200/6200/8200 series), up to 205 W
Memory	24 DDR4 DIMM slots, 2933 MT/s; up to 12 Intel® Optane™ PMem modules (100 series), 2666 MT/s
Local Storage	Supports hot-plug hard drives and the following configuration options:
	10 x 2.5-inch hard drives (6–8 NVMe SSDs and 2–4 SAS/SATA drives, with a total number of 10 or less)
	10 x 2.5-inch SAS/SATA/SSDs (2–4 NVMe SSDs and 6–8 SAS/SATA HDDs, with a total number of 10 or less)
	10 x 2.5-inch SAS/SATA/SSDs
	8 x 2.5-inch SAS/SATA hard drives
	4 x 3.5-inch SAS/SATA hard drives
	Flash storage:
	2 M.2 SSDs
RAID Support	RAID 0, 1, 10, 5, 50, 6, or 60
	Configured with a supercapacitor for power-off protection for the cache (optional)
	RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration
Network Ports	LOM: 2 x 10GE + 2 x GE ports
Network Ports	Flexible NIC: 2 x GE, 4 x GE, 2 x 10GE, 2 x 25GE, or 1/2 x 56G FDR IB ports
PCIe Expansion	Up to 5 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC
Fan Modules	7 hot-swappable fan modules with optional N+1 redundancy
Power Supply	2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options:
	550W AC Platinum PSUs
	900W AC Platinum/Titanium PSUs
	1,500W AC Platinum PSUs
	1,500W 380V HVDC PSUs
	1,200W -48V to -60V DC PSUs
Management	iBMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening
	iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports CD-free deployment and the Agentless feature, simplifying management
	(Optional) Configured with the FusionDirector management software to provide advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automatic entire-lifecycle management
Operating Temperature	5ºC to 45ºC (41ºF to 113ºF), and ASHRAE A3 and A4 compliant
Certifications	CE, UL, FCC, CCC, and RoHS
Installation Kit	L-shaped guide rails, adjustable guide rails, and holding rails
Dimensions (H x W x D)	Chassis with 3.5-inch hard drives: 43 mm x 447 mm x 748 mm (3.39 in. x 17.60 in. x 29.45 in.)
Dimensions (H x W x D)	Chassis with 2.5-inch hard drives: 43 mm x 447 mm x 708 mm (3.39 in. x 17.60 in. x 27.87 in.)
