Item

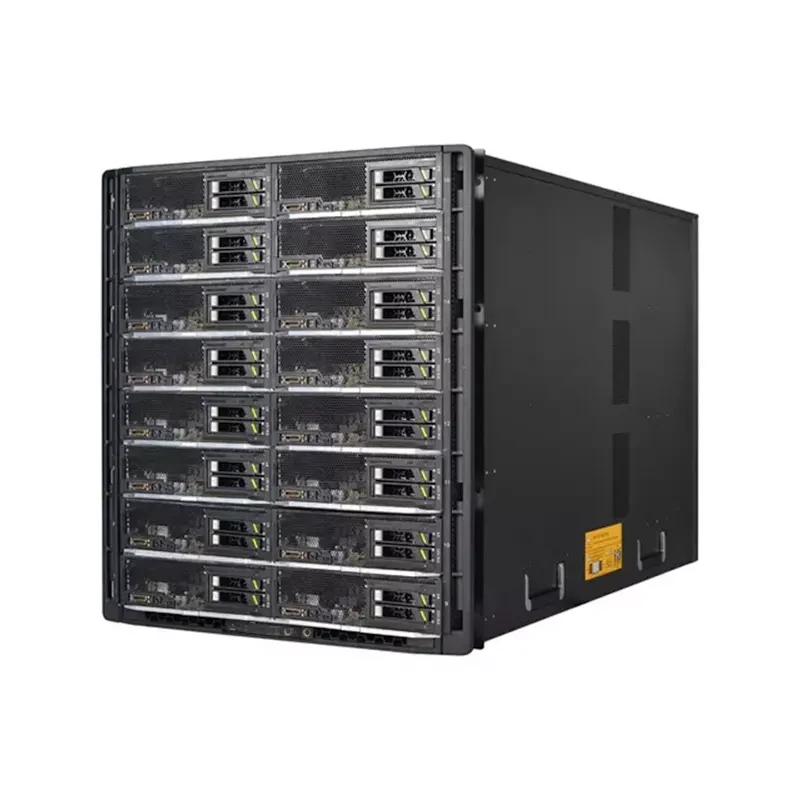

 E9000 Converged Infrastructure Blade Server Chassis

Form Factor

12U

Blade

16 half-width slots or 8 full-width slots
Supports flexible configurations of single-slot, dual-slot, full-width, and half-width nodes

Switch Modules

4 slots for Huawei CX series switch modules provide a midplane switching capability of 15.6 Tbit/s
CX110 GE switch module: 12 x GE + 4 x 10 GE uplink, 32 x GE downlink
CX111 GE switch module: 12 x GE + 4 x 10 GE uplink, 32 x GE downlink
CX116 GE pass-through module: 32 x GE uplink, 32 x GE downlink
CX210 8G FC switch module: 8 x 8G FC uplink, 16 x 8G FC downlink
CX220 16G FC Switch Module: 8 x 16G FC uplink, 16 x 16G FC downlink
CX310 10 GE switch module: 16 x 10 GE uplink, 32 x 10 GE downlink
CX311 10 GE/FCoE converged switch module: 16 x 10 GE + 8 x 8G FC uplink, 32 x 10 GE downlink
CX317 10 GE pass through module: 32 x 10 GE uplink, 32 x 10 GE downlink
CX611 InfiniBand switch module (QDR 40 Gbit/s, FDR 56 Gbit/s): 18 x QDR/FDR uplink, 16 x QDR/FDR downlink
CX710 40 GE switch module: 8 x 40 GE uplink, 16 x 40 GE downlink
CX912 multi-plane switch module; supports FC ports: 16 x 10 GE + 8 x 8G FC uplink, 32 x 10 GE + 16 x 8G FC downlink
CX915 multi-plane switch module: 4 x 10 GE + 12 x GE + 8 x 8G FC uplink, 32 x GE + 16 x 8G FC downlink

PSU

AC/DC PSU: maximum six 3,000W/2,000W AC or six 2,500W DC hot-swappable PSUs in N+N or N+M redundancy mode

Fan Modules

Provides 14 hot-swappable fan modules in N+1 redundancy mode

Management

Uses HMMs in 1+1 redundancy mode, supports standard management interfaces, such as SNMP and IPMI, manages computing and switching devices in a unified manner, and provides comprehensive management functions, such as a GUI, remote KVM, virtual media, SOL, remote control, hardware monitoring, intelligent power supply, and historical power consumption
Provides value-added management features, such as multi-frame cascading management, graphic network configuration, and stateless computing

Power Supply

110V/220V AC or –48V DC

Operating Temperature

5°C to 40°C

Dimensions

Height: 530 mm (20.87 in.)
Width: 442 mm (17.40 in.)
Depth: 840 mm (33.07 in.)
