    RAID Support
    RAID0/1/10/5/50/6/60
    PSUs
    Two hot-swappable PSUs in 1+1 redundancy mode
    PCIe Expansion
    A maximum of three PCIe slots
    Memory
    16 DDR4 RDIMMs/LRDIMMs
    Dimensions
    447 mm x 750 mm x 43.6 mm
    processor main frequency
    -
    Power Supply
    110 V to 220 V AC 240 V to 380V
    Processor Type
    Intel
    Products Status
    Stock
    Place of Origin
    Guangdong, China
    Type
    rack server
    Product Description

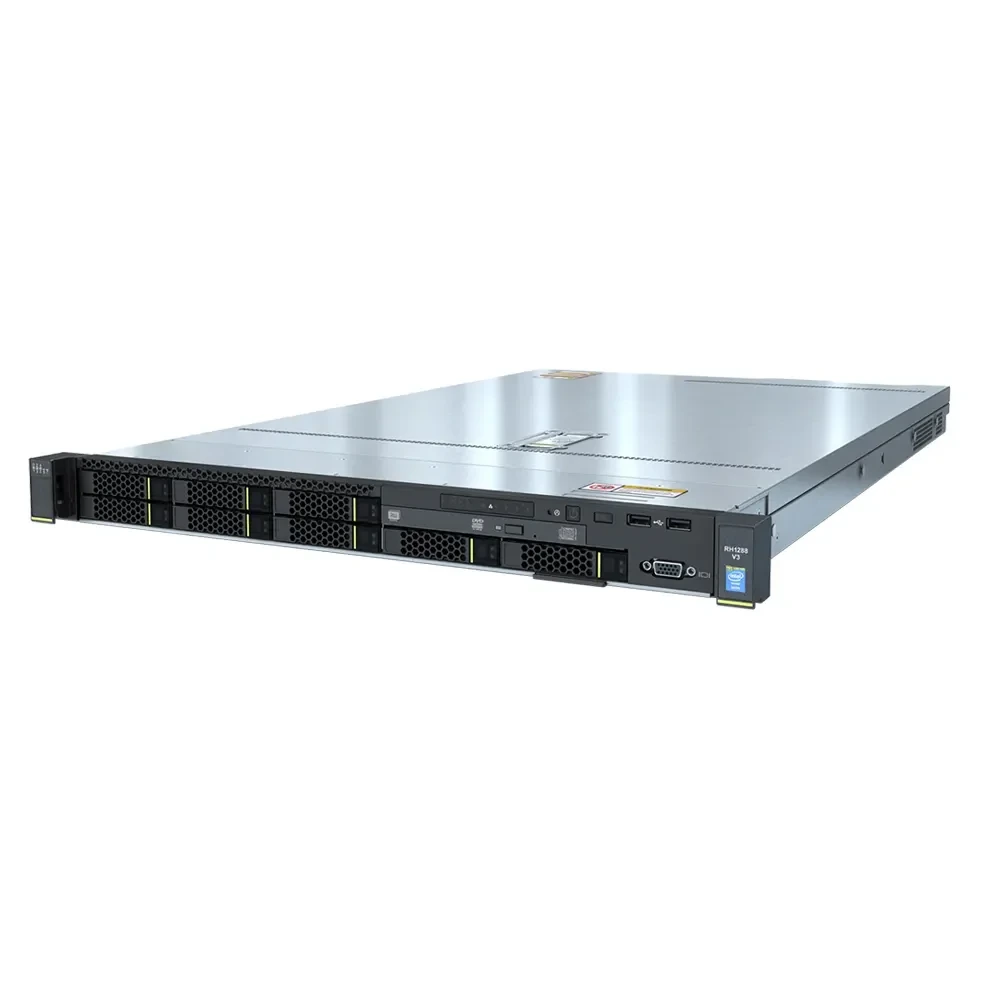

    FusionServer RH1288 V3 Rack Servers 1U 2-socket rack server


    MODEL
    FusionServer RH1288 V3 Rack Server
    Form factor
    1U rack server
    Number of processors
    1 or 2
    Processor model
    Intel Xeon E5-2600 v3 series processors
    Memory
    16 slots for DDR4 RDIMMs or LRDIMMs
    Local storage
    Supports two types of hard disk configurations: • Eight 2.5-inch SSDs or SAS or SATA HDDs
    • Four 3.5-inch SAS or SATA HDDs
    Supports Flash storage:
    • Dual SATA DOM
    • Dual-SD card
    RAID
    Supports RAID 0, 1, 10, 5, 50, 6, and 60Uses a supercapacitor to protect RAID cache data from power failures
    Supports RAID state migration, RAID configuration memory, self-diagnosis, and remote web setting
    Network ports
    Provides two or four GE ports or two 10GE ports
    PCIe expansion
    Provides up to three PCIe slots
    Fan
    5 hot-swappable fan modules in N+1 redundancy.Each fan module has two counter-rotating fans.
    PSU
    Can be configured with two hot-swappable PSUs in redundancy and supports N+1 redundancy.The server supports the following PSUs:
    • 460 W or 750 W AC or DC PSU
    • 800 W –48 V DC PSU
    • 1200 W high-voltage DC PSU
    Management
    The on-board iBMC module supports Intelligent Platform Management Interface (IPMI), SOL, KVM over IP, and virtual media and
    provides a 1 Gbit/s RJ45 management network port supporting Network Controller Sideband Interface (NC-SI).
    Supported OSs
    CentOSCitrix XenServer
    Microsoft Windows Server
    Red Hat Enterprise Linux
    SUSE Linux Enterprise Server
    VMware ESXi
    Power supply
    110 V to 220 V AC240 V to 380 V DC
    –48 V DC
    5°C to 45°C (41°F to 113°F)
    NOTE: The RH1288 V3 servers operating at 40°C do not support SSDs, and the fault of one fan may affect CPU performance.
    Certification
    CE, UL, FCC, CCC, and RoHS
    Installation suite
    Guide rails
    Adjustable holding rails
    Dimensions (W x D x H)
    RH1288 V3 with 3.5-inch hard disks: 447 mm x 750 mm x 43.6 mm (17.60 in. x 29.53 in. x 1.72 in.)
    RH1288 V3 with 2.5-inch hard disks: 447 mm x 710 mm x 43.6 mm (17.60 in. x 27.95 in. x 1.72 in.)
