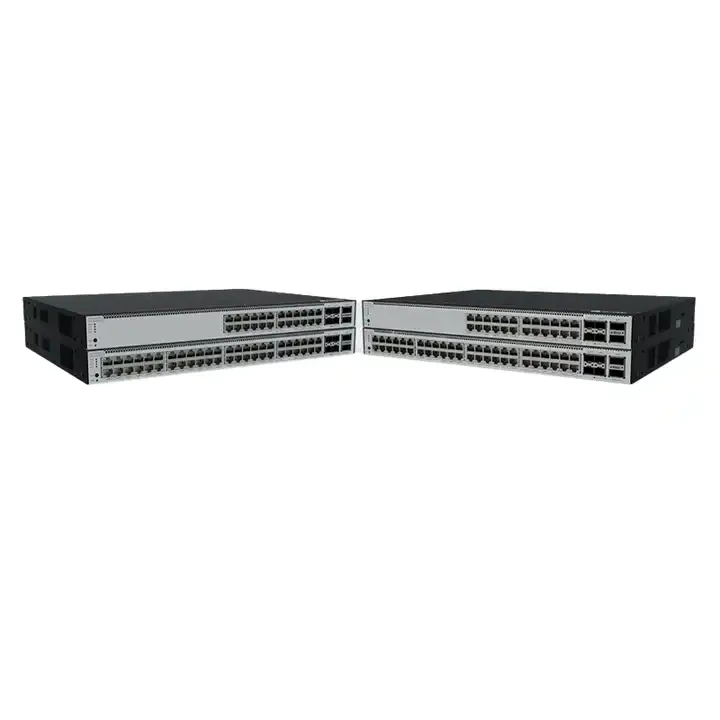

High-quality CloudEngine S5755-H Series 24-Port Fiber Optic Switch

Item

Specification

Type

Enterprise Switch

Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 335.0 mm (1.72 in. x 17.4 in. x 13.19 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 368.0 mm (1.72 in. x 17.4 in. x 14.49 in.)

Dimensions with packaging (H x W x D) [mm(in.)]

165 mm x 620 mm x 550 mm (6.5 in. x 24.41 in. x 21.65 in.)

Chassis height [U]

1 U

Weight without packaging [kg(lb)]

5.09 kg (11.22 lb)

Weight with packaging [kg(lb)]

7.53 kg (16.6 lb)

Typical power consumption [W]

30% traffic under the ATIS standard, dual power supplies:

128 W (all ports used)

117 W (2 x 100GE ports not used)

Typical heat dissipation [BTU/hour]

30% traffic under the ATIS standard, dual power supplies:

436.75 (all ports used)

399.22 (2 x 100GE ports not used)

Maximum power consumption [W]

100% traffic under the ATIS standard, dual power supplies, and without PoE:

135 W (all ports used)

124 W (2 x 100GE ports not used)

Full PoE load, two 1000 W power modules: 1823 W (PoE: 1645 W)

Maximum heat dissipation [BTU/hour]

100% traffic under the ATIS standard, dual power supplies, and without PoE:

460.63 (all ports used)

423.10 (2 x 100GE ports not used)

Full PoE load, two 1000 W power modules: 6220.26

Static power consumption [W]

74 W

MTBF [years]

59.77 years

MTTR [hours]

2.01 hours

Availability

> 0.99999

Noise at normal temperature (acoustic power) [dB(A)]

30% PoE load: 51.70 dBA

Noise at normal temperature (acoustic pressure) [dB(A)]

30% PoE load: 39.7 dBA

Number of card slots

0

Number of power slots

2

Number of fans modules

2

Redundant power supply

1+1

Pluggable AC and DC power modules can be used together in the same switch.

Long-term operating temperature [°C(°F)]

–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)

Short-term operating temperature [°C(°F)]

-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)

Restriction on the operating temperature variation rate [°C(°F)]

When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

The device can work for a short period of time when the operating temperature is beyond the normal range, but the following conditions must be met:

The operating temperature exceeds 45°C (113°F) for no more than 96 consecutive hours in a year.

The total time in which the operating temperature exceeds 45°C (113°F) in a year is less than or equal to 360 hours.

The number of times the operating temperature exceeds 45°C (113°F) is less than or equal to 15 in one year.

If any of the preceding conditions is not met, the device may be damaged or an unknown error may occur.

The device cannot start when the temperature is lower than 0°C (32°F). The maximum transmission distance of an optical module used for short-term operation cannot exceed 10 km.

When the QSFP-100G-ER4 or QSFP-100G-LR1 optical module is used, the operating temperature ranges from -5°C to +40°C (23°F to
104°F).

Storage temperature [°C(°F)]

–40°C to +70°C (–40°F to +158°F)

Long-term operating relative humidity [RH]

5% RH to 95% RH (non-condensing)

Long-term operating altitude [m(ft.)]

0–5000 m (0–16404 ft.)

Storage altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Power supply mode

Pluggable power supply

Rated input voltage [V]

AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC; 50/60 Hz

High-voltage DC input: 240 V DC

DC input: –48 V DC to –60 V DC

Input voltage range [V]

AC input: 90 V AC to 290 V AC; 45 Hz to 66 Hz

High-voltage DC input: 190 V DC to 290 V DC

DC input: -38.4 V DC to -72 V DC

Maximum input current [A]

The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules.

Memory

4 GB

Flash memory

Physical space: 2 GB

Console port

RJ45

Eth Management port

RJ45

USB

Supported

RTC

Supported

RPS input

Not supported

Power supply surge protection [kV]

Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode

Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode

Ingress protection level (dustproof/waterproof)

IP20

Types of fans

Pluggable

Heat dissipation mode

Air cooling for heat dissipation, intelligent fan speed adjustment

Airflow direction

Air intake from left, front, and right and air exhaust from rear

PoE

Supported

Certification

EMC certification

Safety certification

Manufacturing certification
