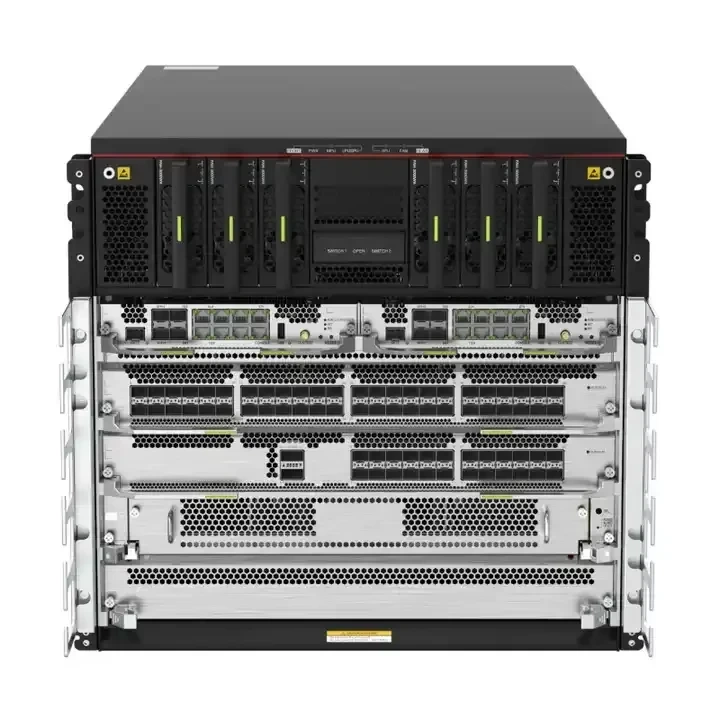

Hisecengine Usg12000 Series Ai Firewall Usg12004-f Firewall Appliance 1

Hisecengine Usg12000 Series Ai Firewall Usg12004-f Firewall Appliance 2

Hisecengine Usg12000 Series Ai Firewall Usg12004-f Firewall Appliance

Samples:

$1000.0/piece | Min. order : 1 piece

Shipping:

Support Sea freight

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-10(pieces):3(days),11-100(pieces):7(days),101-500(pieces):15(days),>500(pieces):To be negotiated(days)

Customization:

Customized logo (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets),Graphic customization (Min. Order: 10000 sets)

Brand Name:

Model Number:

USG12004-F

Inquiry

Write a Review

Place of Origin

Guangdong, China

Products Description

The HiSecEngine USG12000 series is the industry's first terabit-level Artificial Intelligence (AI) firewall launched by for mitigating known and unknown threats at the network edge in real-time. It is typically deployed at the egress of cloud
computing data centers, large enterprises, and campus networks to provide industry-leading protection capabilities.

An advanced hardware architecture design and an array of energy conservation technologies slash energy consumption, while a full lineup of Line Interface Processing Units (LPUs) — with a per-slot interface density of up to 18 x 100 GE — meets heavy-bandwidth traffic requirements. The series provides comprehensive, carrier-grade high-reliability architecture, supporting a multitude of reliability mechanisms, such as dual Main Processing Unit (MPU) backup, Hot Standby (HSB), Non-Stop Routing (NSR), and Graceful Restart (GR). A hardware-based software integrity check mechanism prevents unauthorized software from running, ultimately building a secure foundation for the network. With terabit-level service processing power and a suite of security features — covering Network Address Translation (NAT), Carrier-Grade NAT (CGN), Virtual Private Network (VPN), virtualization, and content security — HiSecEngine USG12000 equips enterprises to handle the heavy bandwidth traffic and diverse service threats of the intelligent era.

Details Images

Hisecengine Usg12000 Series Ai Firewall Usg12004-f Firewall Appliance 3

Hisecengine Usg12000 Series Ai Firewall Usg12004-f Firewall Appliance 4

Specification

Cabinet installation standard	A66E
Wide [mm]	442 mm
Depth [mm]	515.5 mm
Height [mm]	352.8 mm
Chassis height [U]	8
Weight without packaging [kg(lb)]	31.3 (69.0)
Maximum power consumption [W]	1560
Maximum heat dissipation [BTU/hour]	5322.94
Heat dissipation mode	Absorbing cold air into the device
Power supply mode	Built-in AC
Rated input voltage [V]	- AC input: 110 V AC/220 V AC, 50/60 Hz
	- High-voltage DC input: 240 V DC
Input voltage range [V]	- AC input: 90–290 V AC; 45–65 Hz (When the input voltage ranges from 90 V AC to 176 V AC, the maximum output power is 1500 W. When the input voltage ranges from 176 V AC to 200 V AC, the maximum output power is 2300 W. If the input voltage ranges from 200 V AC to 290 V AC, the maximum output power is 2500 W.)
	- High-voltage DC input: 190 V DC to 290 V DC (When the input voltage ranges from 190 V DC to 200 V DC, the maximum output power is 2300 W. When the input voltage ranges from 200 V DC to 290 V DC, the maximum output power is 2500 W.)
Number of slots	6
Number of service board slots	4
Number of MPU slots	2
Redundant MPUs	The control and switching units work in 1:1 hot backup mode.
Redundant power supply	Single-input power supply system: N+1 backup
Redundant fans	Fan modules support hot backup. If a fan module is faulty, the system can still work properly for a short period of time. However, you are advised to replace the faulty fan module immediately.
Number of power modules	6
Number of fan modules	2
Types of fans	Pluggable
Noise at normal temperature (acoustic power) [dB(A)]	- ≤69.0dB(A) @AC 2500 W N+N power supply
	- ≤ 78.0 dB(A)@AC 2500 W N+1 power supply
	- ≤ 78.0 dB(A)@AC 2500 W N+0 power supply
	note: The current version does not support N+N configuration of AC power modules.
Airflow direction	Front-to-back
Long-term operating temperature [°C(°F)]	-5°C to 45°C (23°F to 113°F) at an altitude of -60 m to 1800 m (-197 ft. to 5906 ft.)
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH (noncondensing)
Long-term operating altitude [m(ft.)]	-60 m to 5000 m (-197 ft. to 16404 ft.)
Storage altitude [m(ft.)]	< 5000 m (16404.00 ft.)
MTBF [year]	32.04
MTTR [hour]	2.42
Availability	0.999995403
