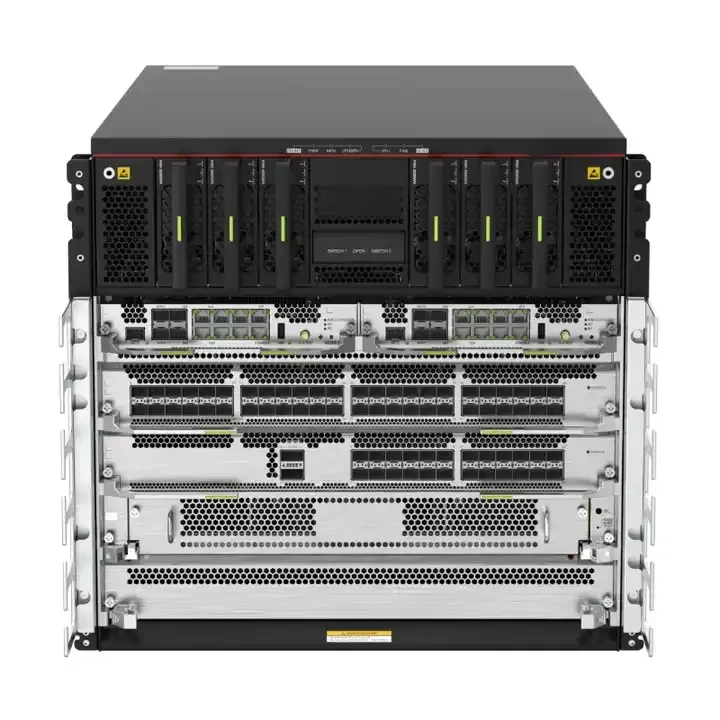

Hisecengine Usg12000 Series Ai Firewall Usg12004 Firewall Appliance 1

Hisecengine Usg12000 Series Ai Firewall Usg12004 Firewall Appliance 2

Hisecengine Usg12000 Series Ai Firewall Usg12004 Firewall Appliance 3

Hisecengine Usg12000 Series Ai Firewall Usg12004 Firewall Appliance

Samples:

$1000.0/piece | Min. order : 1 piece

Shipping:

Support Sea freight

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-10(pieces):3(days),11-100(pieces):7(days),101-500(pieces):15(days),>500(pieces):To be negotiated(days)

Customization:

Customized logo (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets),Graphic customization (Min. Order: 10000 sets)

Brand Name:

Model Number:

USG12004

Inquiry

Write a Review

Place of Origin

Guangdong, China

Products Description

The HiSecEngine USG12000 series is the industry's first terabit-level Artificial Intelligence (AI) firewall launched by
for mitigating known and unknown threats at the network edge in real-time. It is typically deployed at the egress of cloud
computing data centers, large enterprises, and campus networks to provide industry-leading protection capabilities.

An advanced hardware architecture design and an array of energy conservation technologies slash energy consumption, while a full lineup of Line Interface Processing Units (LPUs) — with a per-slot interface density of up to 18 x 100 GE — meets heavy-bandwidth traffic requirements. The series provides comprehensive, carrier-grade high-reliability architecture, supporting a multitude of reliability mechanisms, such as dual Main Processing Unit (MPU) backup, Hot Standby (HSB), Non-Stop Routing (NSR), and Graceful Restart (GR). A hardware-based software integrity check mechanism prevents unauthorized software from running, ultimately building a secure foundation for the network. With terabit-level service processing power and a suite of security features — covering Network Address Translation (NAT), Carrier-Grade NAT (CGN), Virtual Private Network (VPN), virtualization, and content security — HiSecEngine USG12000 equips enterprises to handle the heavy bandwidth traffic and diverse service threats of the intelligent era.

Details Images

Hisecengine Usg12000 Series Ai Firewall Usg12004 Firewall Appliance 4

Hisecengine Usg12000 Series Ai Firewall Usg12004 Firewall Appliance 5

Specification

Cabinet installation standard	- The device can be installed in a standard 19" cabinet with a depth not less than 1000 mm. It can be equipped with a noise reduction module if being installed in a 1200 mm-deep cabinet.
		- By default, the 0.6m (wide) x 1.2 m (deep) x 2.2 m (high) Huawei A612 cabinet (part number: 02116249) is installed.
		- You can also choose the 0.6m (wide) x 1.0 m (deep) x 2.2 m (high) Huawei A610 cabinet (part number: 02116250) with a convex front door.
		- The front door of the cabinet must be equipped with an air filter, but the rear door of the cabinet cannot be equipped with any air filter. (If an air filter is installed on the rear door, uninstall it.)
Wide [mm]	442 mm
Depth [mm]	874 mm
Height [mm]	438 mm
Chassis height [U]	9.8
Weight without packaging [kg(lb)]	76 (167.55)
Maximum power consumption [W]	3660
Maximum heat dissipation [BTU/hour]	12488
Power supply mode	AC built-in,HVDC built-in
Rated input voltage [V]	- AC: 220 V, 50 Hz/60 Hz
Rated input voltage [V]		- High-voltage DC: 240 V/380 V
Input voltage range [V]	- AC: 176–290 V; 45–65 Hz
Input voltage range [V]		- High-voltage DC (HVDC): 188 V to 288 V or 260 V to 400 V
Maximum input current [A]	- AC: 16 A/power module @ 200 V; 18.5 A/power module @ 176 V
Maximum input current [A]		- High-voltage DC (HVDC): 18 A/power module @ 188 V; 13 A/power module @ 260 V
Number of slots	15
Number of service board slots	4
Number of MPU slots	2
Number of fan modules	3
Types of fans	Pluggable
Long-term operating temperature [°C(°F)]	0°C to 40°C (32°F to 104°F)
Storage temperature [°C(°F)]	-40ºC to +70ºC (-40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 85% RH, noncondensing
Storage relative humidity [RH]	5% RH to 85% RH, noncondensing
Long-term operating altitude [m(ft.)]	≤ 5000 m (16404 ft.)
Storage altitude [m(ft.)]	≤ 5000 m (16404 ft.)
MTBF [year]	34.93
MTTR [hour]	1
Availability	0.99999717
